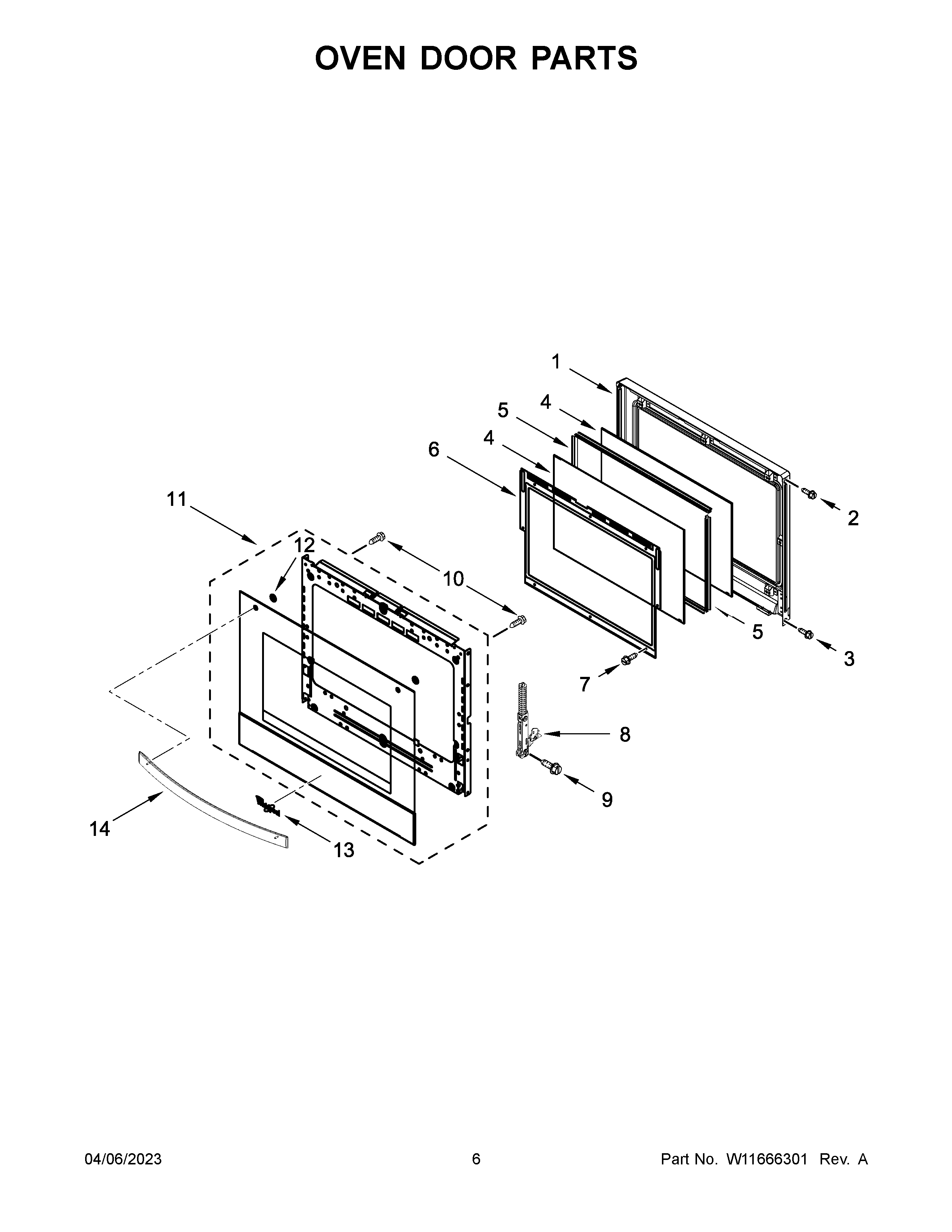

WOES5030LB00 04 – OVEN DOOR PARTS

WOES5030LB00 04 – OVEN DOOR PARTS

Written by

in

WOES5030LB00 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11617223 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10618107 Whirlpool Door Glass Assembly
5SPACER
6W11598182 Whirlpool Retainer Clip
7SCREW
8W11598229 Whirlpool Door Hinge Assembly
8AW11598230 Whirlpool Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11BW11654056 Whirlpool Door Glass
11ADOOR ASSEMBLY (WHITE)
11W11654062 Whirlpool Door Glass
12W11676355 Whirlpool Washer
13W11178521 Whirlpool Dishwasher Nameplate
14W11648760 Whirlpool Handle-Door
14AW11675407 Whirlpool Door Handle
14BW11648756 Whirlpool Door Handle
