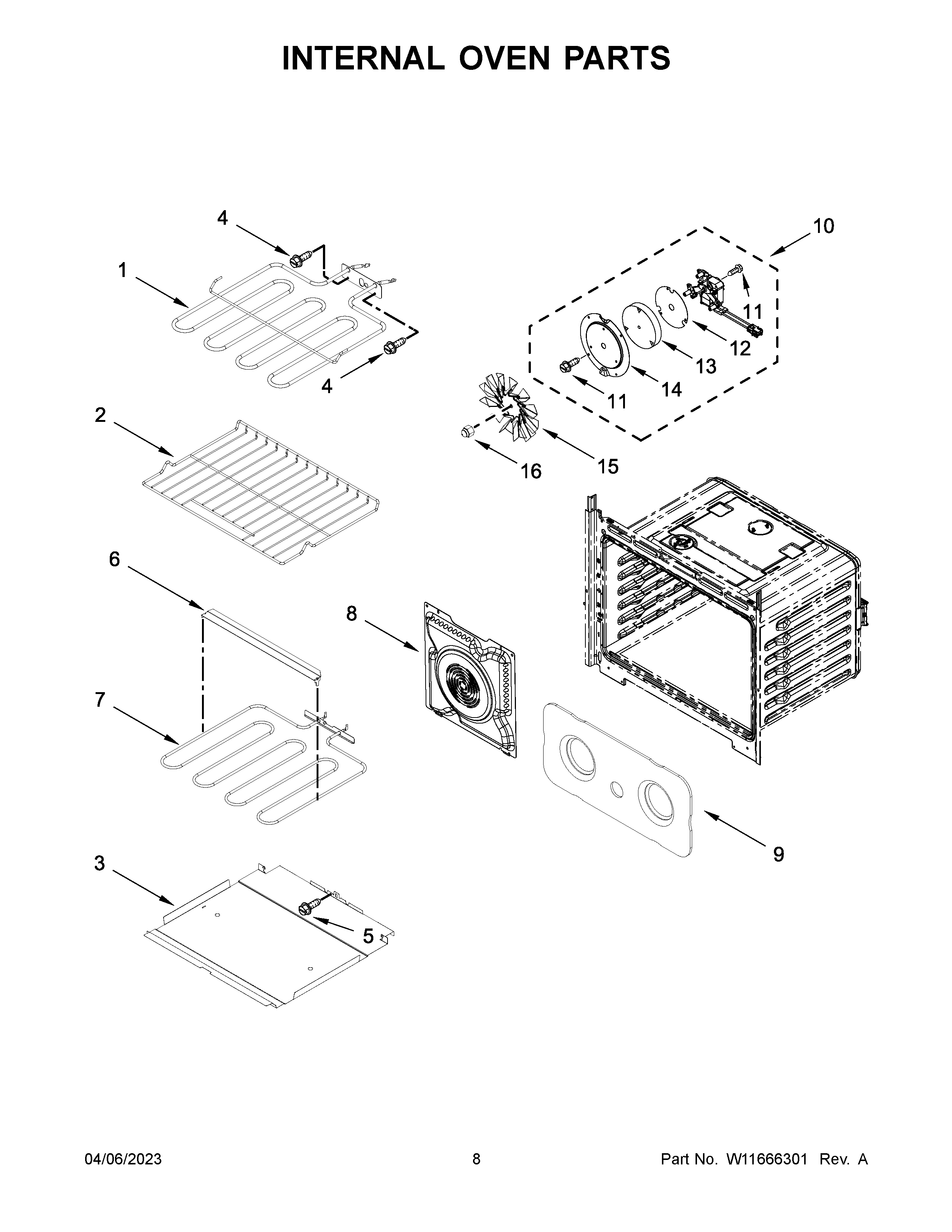

WOES5030LB00 05 – INTERNAL OVEN PARTS

WOES5030LB00 05 – INTERNAL OVEN PARTS

Written by

in

WOES5030LB00 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11617232 Whirlpool Broil Element
2W11218798 Whirlpool Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W10359278 Whirlpool Baffle Conv
9PLATE, RING ELEMENT
10W11617227 Whirlpool Fan Motor
11W10850807 Whirlpool Screw
12PLATE, CONVECT MOTOR
13INSULATION, CONVECT MOTOR
14COVER, CONVECT PLATE
15W11548753 Whirlpool Convection Fan
16W11548755 Whirlpool Nut
