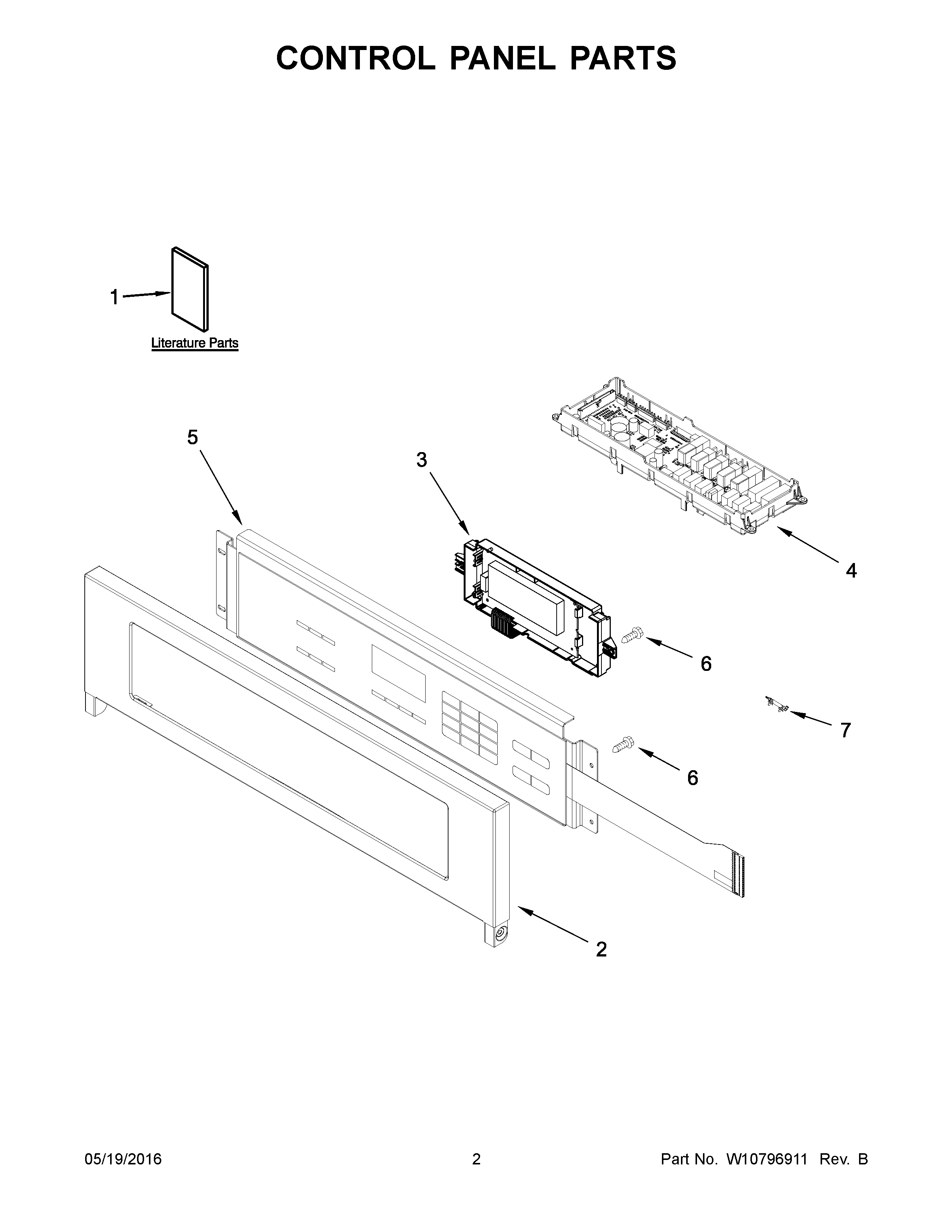

WOS11EM4EW00 02 – CONTROL PANEL PARTS

WOS11EM4EW00 02 – CONTROL PANEL PARTS

Written by

in

WOS11EM4EW00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10715953 Whirlpool Wire Harness
NIW10737896 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NI4451761 Whirlpool Oven Support Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
1AINSTRUCTIONS, INSTALLATION
1BSAFER COOKING TIPS (ENGLISH
1GUIDE, USE & CARE
1CSafer Cooking Tips (French)
1DSHEET, TECH
1EDIAGRAM, WIRING
2AW10704698 Whirlpool Control Panel
2W10702189 Whirlpool Control Panel
3W10803991 Whirlpool Electronic Control Board + Core
4W10807577 Whirlpool Electronic Control Board + Core
5W10694998 Whirlpool Membrane Switch
5AW10694999 Whirlpool Membrane Switch
6WP3400832 Whirlpool Screw
7FUSE-THRML WALL OVEN
