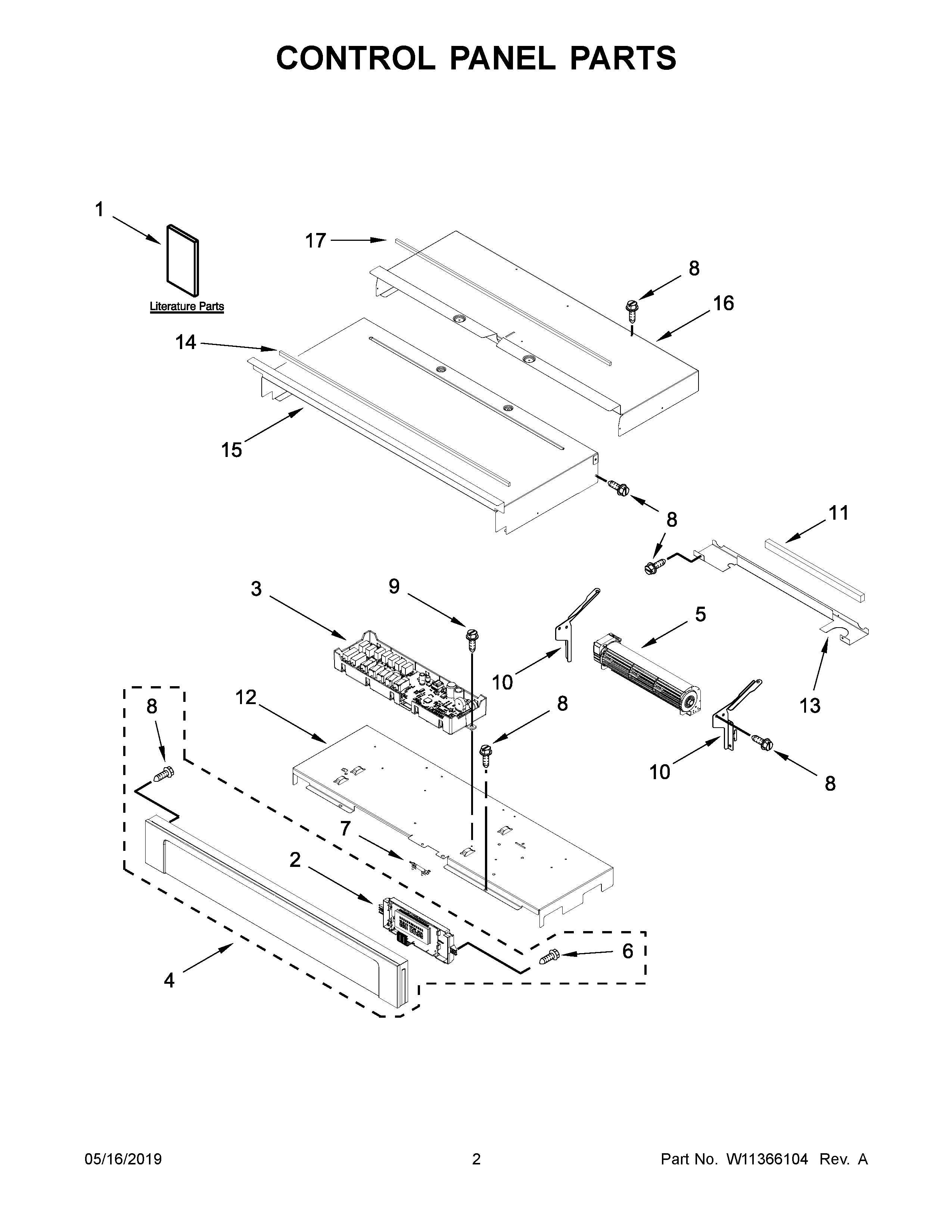

WOS31ES7JS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	4450800 Whirlpool Oven Screw
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157775 Whirlpool Wire Harness
NI	W11136114 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	STRAP, LEAD GROUND
1C	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
1D	DIAGRAM, WIRING
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	W10803991 Whirlpool Electronic Control Board + Core
3	W10859300-includeCORE Whirlpool W10859300 Electronic Control Board
4	W11367368 Whirlpool Console + Core
5	W11245567 Whirlpool Blower Assembly
6	SCREW
7	WPW10545255 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10283005 Whirlpool Mounting Bracket
13	W10655465 Whirlpool Mounting Bracket
14	GASKET, RUBBER (652MM)
15	W10318193 Whirlpool Cabinet Top
16	CHASSIS, COVER TOP BACK 27"
17	W10728475 Whirlpool Foam Seal
