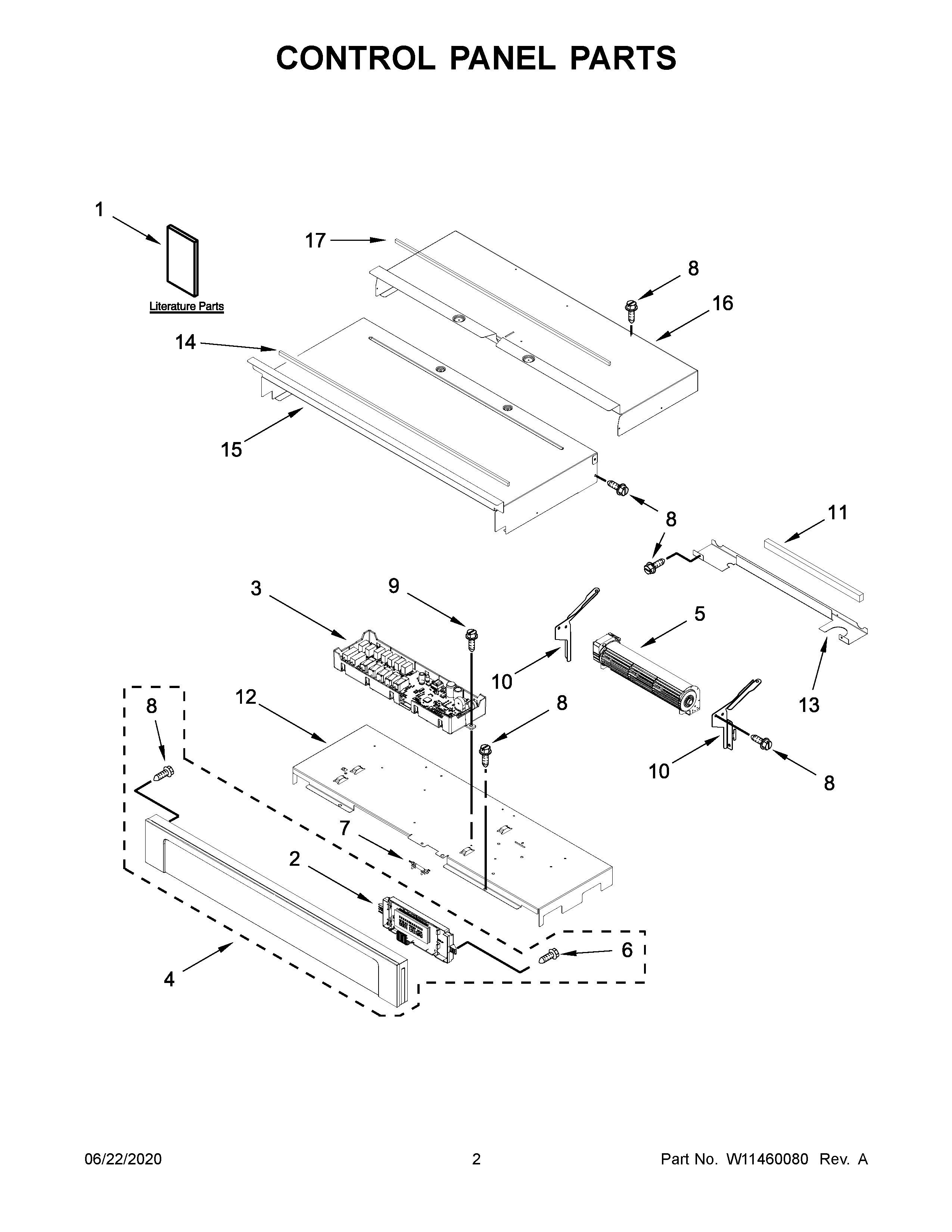

WOS31ES7JS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NI4450800 Whirlpool Oven Screw
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11157775 Whirlpool Wire Harness
NIW11136114 Whirlpool Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NISTRAP, LEAD GROUND
1CSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
1DDIAGRAM, WIRING
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
2W10803991 Whirlpool Electronic Control Board + Core
3W10859300-includeCORE Whirlpool W10859300 Electronic Control Board
4W11367368 Whirlpool Console + Core
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10283005 Whirlpool Mounting Bracket
13W10655465 Whirlpool Mounting Bracket
14GASKET, RUBBER (652MM)
15W10318193 Whirlpool Cabinet Top
16CHASSIS, COVER TOP BACK 27"
17W10728475 Whirlpool Foam Seal
