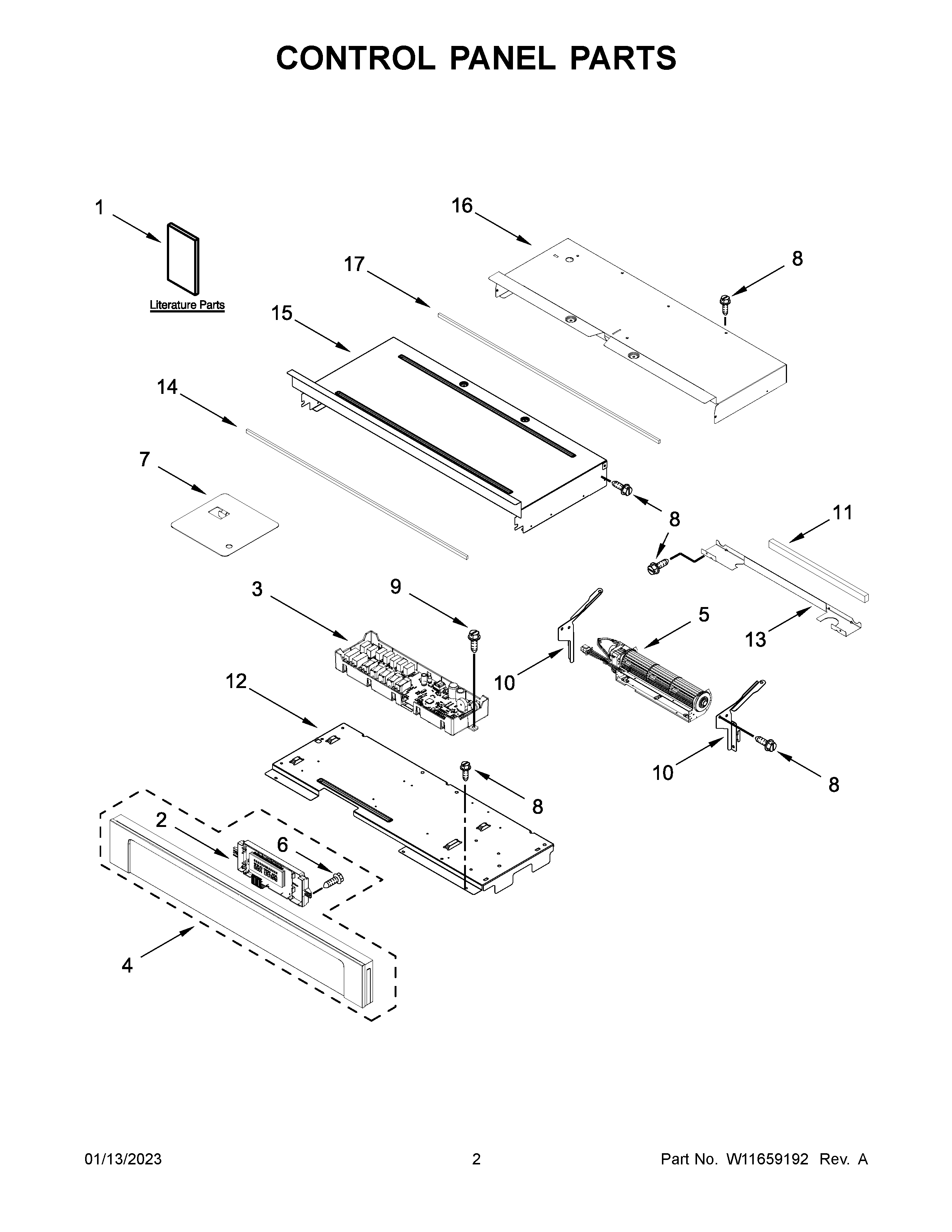

WOS31ES7JS21 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11245656 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	BAG, HARDWARE
NI	STRAP, LEAD GROUND
NI	W11727826 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1A	QUICK START GUIDE
1B	TECH SHEET
1	OWNER'S MANUAL
2	W10803991 Whirlpool Electronic Control Board + Core
3	W11598254-includeCORE Whirlpool W11598254 Refrigerator Electronic Control Board + Core
4	W11616675 Whirlpool Console + Core
5	BLOWER
6	SCREW
7	COVER, WIFI
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	TRAY, ELECTRONIC
13	DIVIDER, CHASSIS BACK
14	GASKET, RUBBER (652MM)
15	COVER, TOP FRONT 27 IN CHASSIS
16	COVER, TOP BACK 27 IN CHASSIS
17	W10728475 Whirlpool Foam Seal
