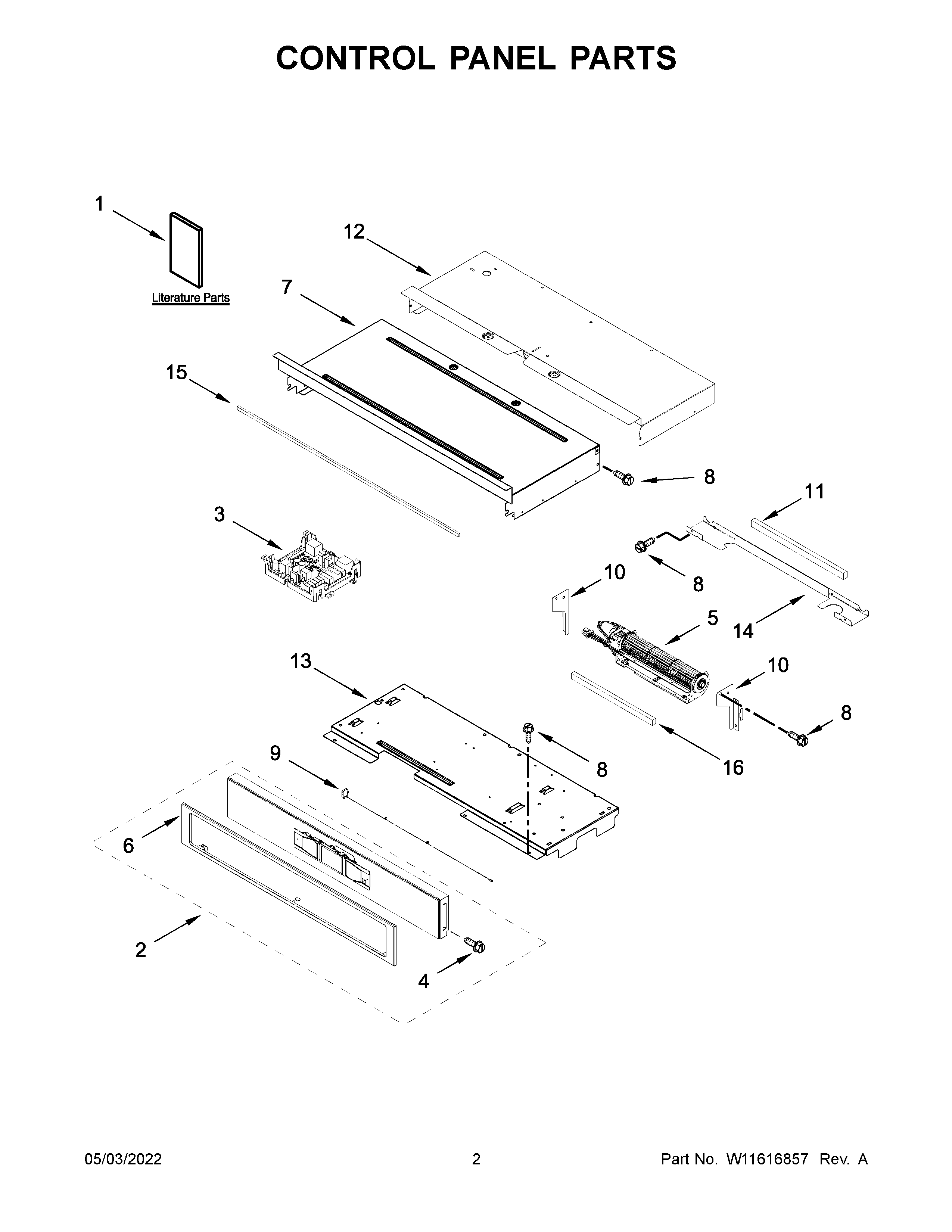

WOS51EC0HB20 02 – CONTROL PANEL PARTS

WOS51EC0HB20 02 – CONTROL PANEL PARTS

Written by

in

WOS51EC0HB20 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11245671 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NIW10487999 Whirlpool Clip
NIW10655464 Whirlpool Bracket
NIW11699910 Whirlpool Wire Harness
NIW11727826 Whirlpool Wire Harness
NIBAG, HARDWARE
NIW11233570 Whirlpool Wire Harness
NIW11256626 Whirlpool Wire Harness
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
1AQUICK START GUIDE
1OWNER'S MANUAL
1BTECH SHEET
2W11600366 Whirlpool Control Panel
2AASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
2BW11600370 Whirlpool Control Panel
3W11261167 Whirlpool Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6AW11109371 Whirlpool Skin Panel
6SKIN, CONTROL PANEL (BLACK)
6BW11113207 Whirlpool Skin Panel
7COVER, 30 IN CHASSIS TOP FRONT
8SCREW
9W11537624 Whirlpool Antenna Assembly
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10728475 Whirlpool Foam Seal
12COVER, 30 IN CHASSIS TOP BACK
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15GASKET, RUBBER
16W10491987 Whirlpool Foam Seal
