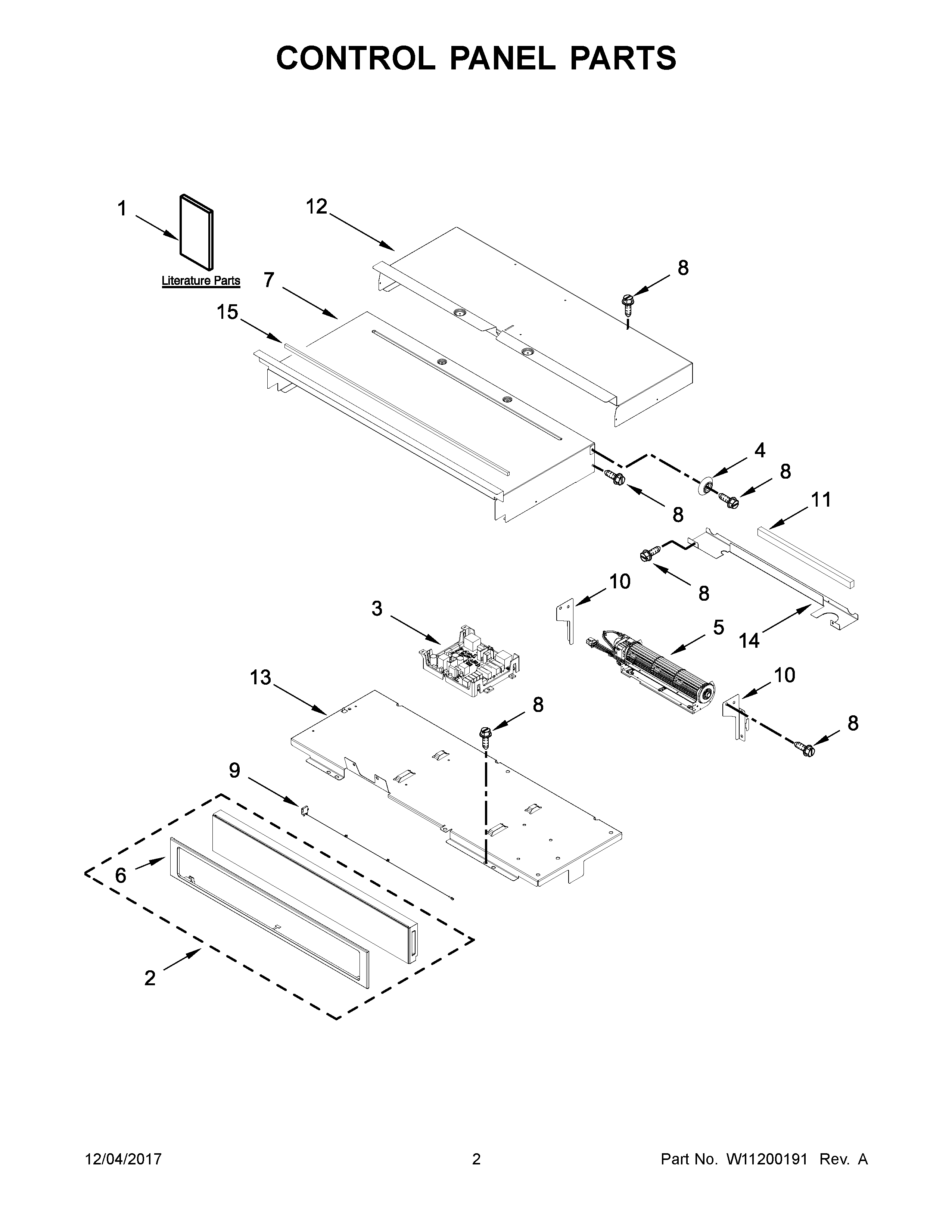

WOS51EC0HS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, MAIN
NIW11233570 Whirlpool Wire Harness
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NIW11132989 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1EDIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION
1AINSTRUCTIONS, UNDERCOUNTER INSTALLATION
1BGUIDE, USE & CARE
1CGUIDE, INTERNET CONNECTIVITY
1DSHEET, TECH
2BW11296171 Whirlpool Console + Core
2AW11296169 Whirlpool Console + Core
2W11293216 Whirlpool Console + Core
3W11261167 Whirlpool Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11248652 Whirlpool Blower
6AW11109371 Whirlpool Skin Panel
6SKIN, CONTROL PANEL (BLACK)
6BW11113207 Whirlpool Skin Panel
7W10318192 Whirlpool Cabinet Top
8SCREW
9W11537624 Whirlpool Antenna Assembly
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10728475 Whirlpool Foam Seal
12W10904156 Whirlpool Cabinet Top
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15WPW10657548 Whirlpool Foam Seal
