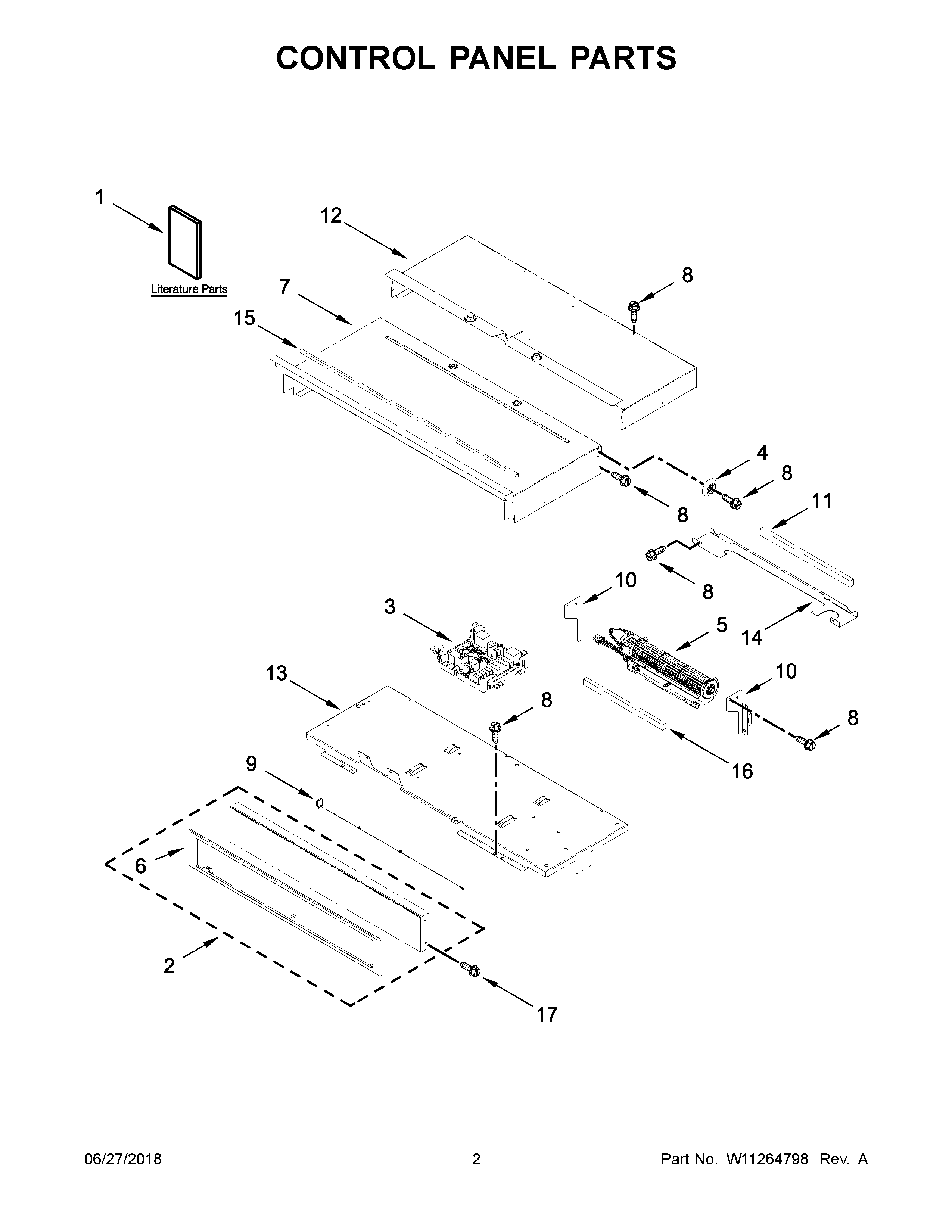

WOS51EC0HS01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11225363 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W11233570 Whirlpool Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11225360 Whirlpool Wire Harness
1B	GUIDE, USE & CARE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1	INSTRUCTIONS, INSTALLATION
1C	GUIDE, INTERNET CONNECTIVITY
1E	DIAGRAM, WIRING
1D	SHEET, TECH
2B	W11296171 Whirlpool Console + Core
2A	W11296169 Whirlpool Console + Core
2	W11293216 Whirlpool Console + Core
3	W11261167 Whirlpool Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11248652 Whirlpool Blower
6B	W11113207 Whirlpool Skin Panel
6A	W11109371 Whirlpool Skin Panel
6	SKIN, CONTROL PANEL (BLACK)
7	W10318192 Whirlpool Cabinet Top
8	SCREW
9	W11537624 Whirlpool Antenna Assembly
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10728475 Whirlpool Foam Seal
12	W10904156 Whirlpool Cabinet Top
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	GASKET, RUBBER
16	W10491987 Whirlpool Foam Seal
17	SCREW
