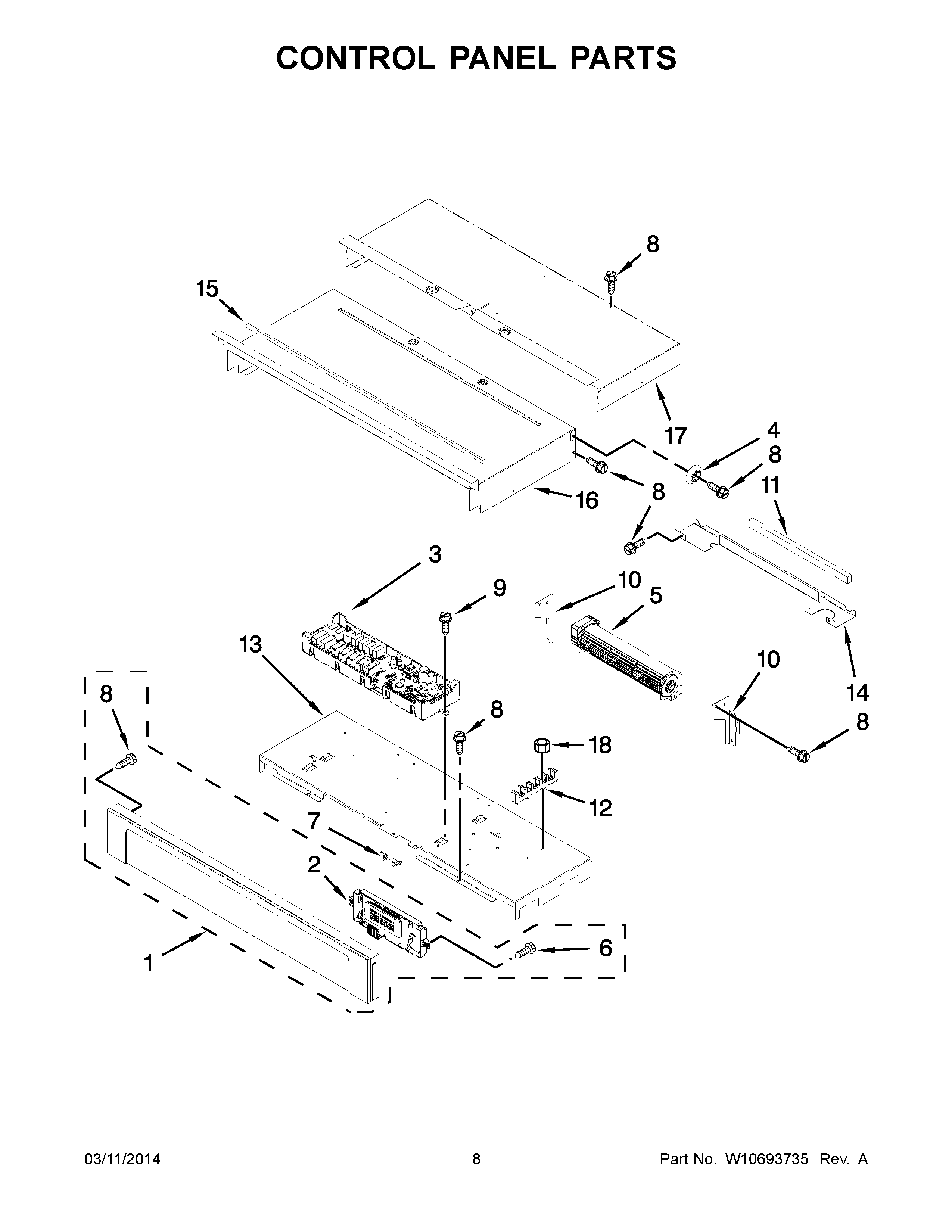

WOS51EC7AW02 05 – CONTROL PANEL PARTS

WOS51EC7AW02 05 – CONTROL PANEL PARTS

Written by

in

WOS51EC7AW02 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W10864145 Whirlpool Control Panel
1W10861490 Whirlpool Control Panel
1W10861488 Whirlpool Control Panel
2W10803991 Whirlpool Electronic Control Board + Core
3W10741603 Whirlpool Control Board + Core
4W10363824 Whirlpool Spacer
5WPW10641253 Whirlpool Blower Motor
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10W10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10283005 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15WPW10657548 Whirlpool Foam Seal
16W10318193 Whirlpool Cabinet Top
17W10318195 Whirlpool Cabinet Top
18Nut
