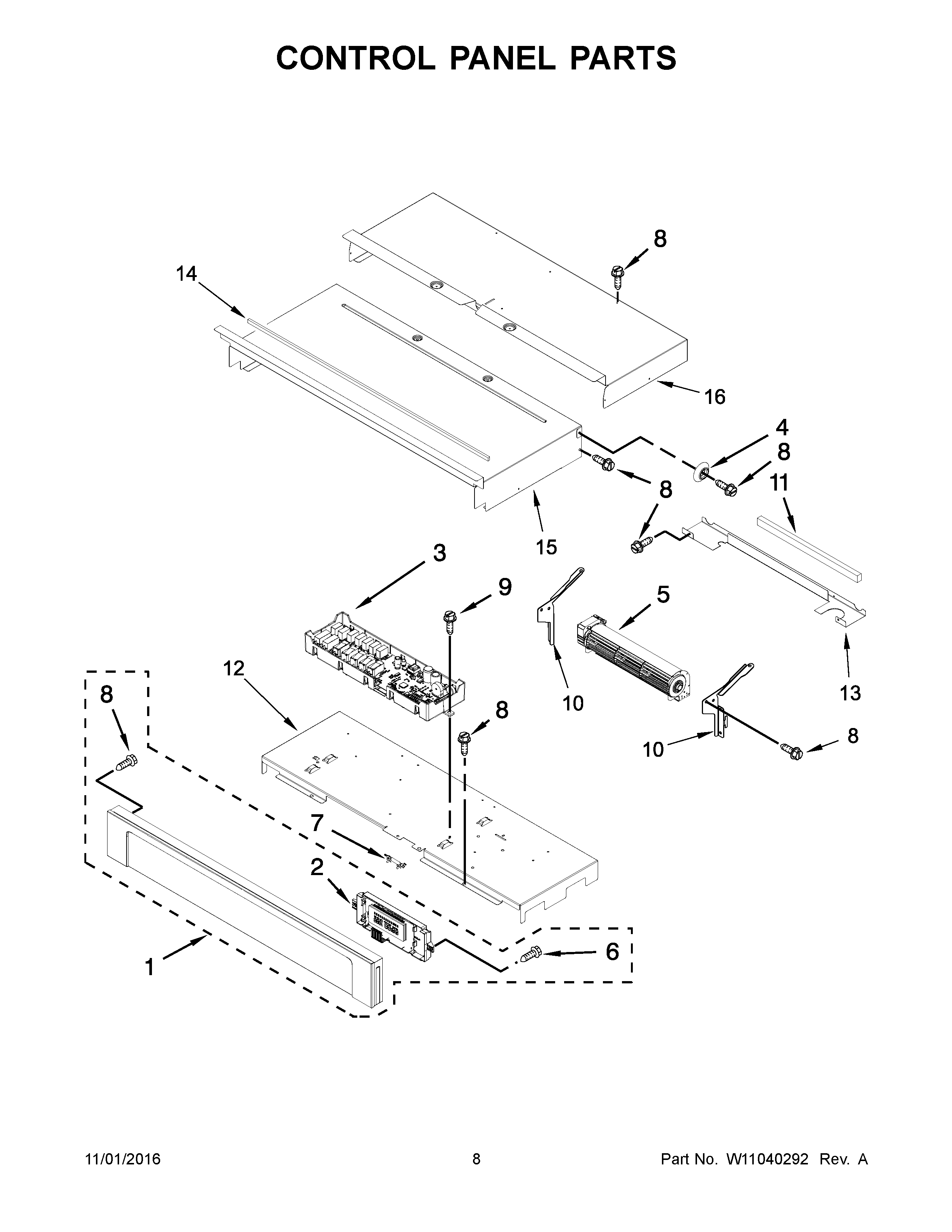

WOS51EC7AW04 05 – CONTROL PANEL PARTS

WOS51EC7AW04 05 – CONTROL PANEL PARTS

Written by

in

WOS51EC7AW04 05 – CONTROL PANEL PARTS

Products

PositionProduct
1BW10864146 Whirlpool Control Panel
1W10864143 Whirlpool Control Panel
1AW10864145 Whirlpool Control Panel
2W10803991 Whirlpool Electronic Control Board + Core
3W10839510 Whirlpool Electronic Control Board
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10283005 Whirlpool Mounting Bracket
13W10655465 Whirlpool Mounting Bracket
14WPW10657548 Whirlpool Foam Seal
15W10318193 Whirlpool Cabinet Top
16CHASSIS, COVER TOP BACK 27"
