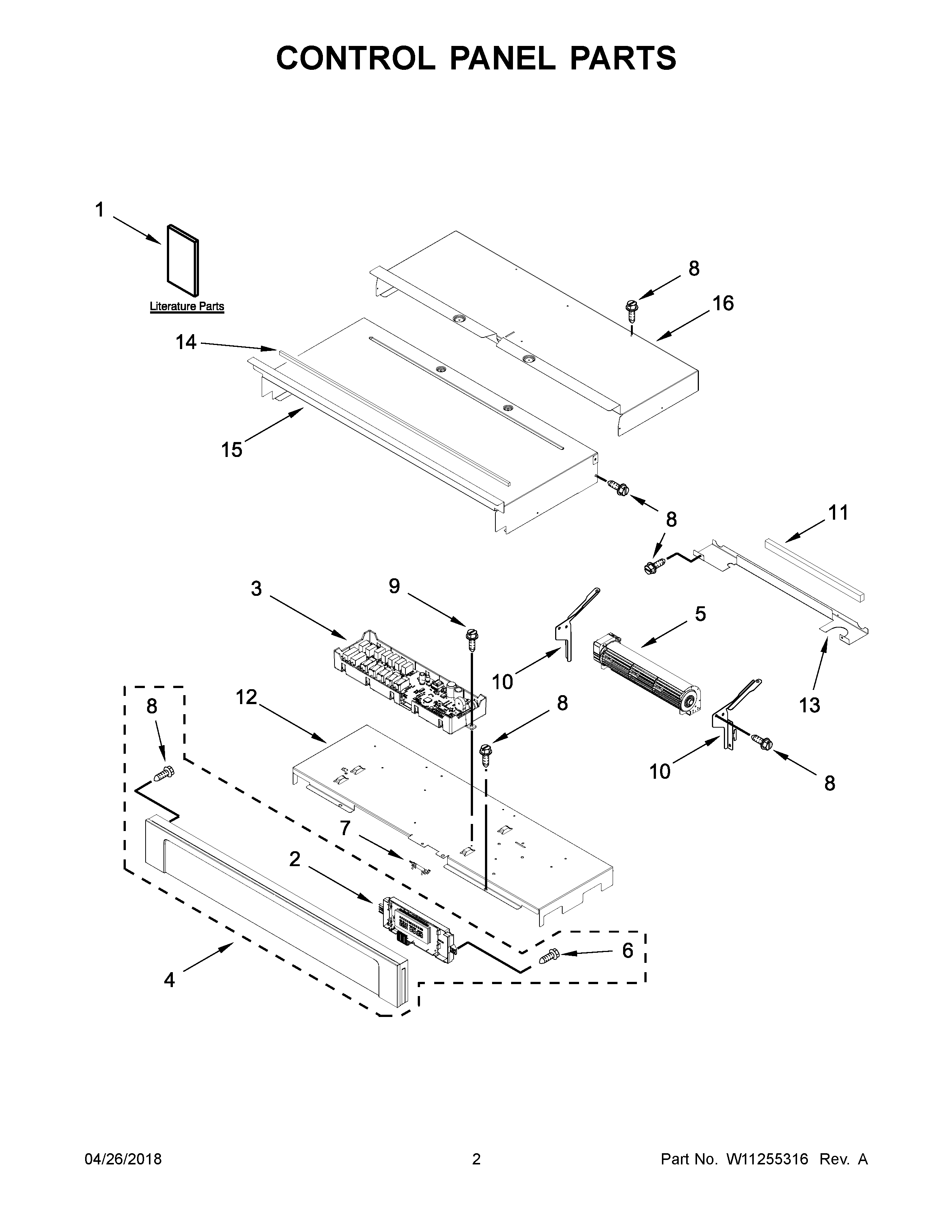

WOS51EC7AW05 02 – CONTROL PANEL PARTS

WOS51EC7AW05 02 – CONTROL PANEL PARTS

Written by

in

WOS51EC7AW05 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW10487999 Whirlpool Clip
NIW10655464 Whirlpool Bracket
NIW11132989 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIWP4450952 Whirlpool Conduit
NIW11136114 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NISTRAP, LEAD GROUND
1GUIDE, USE & CARE
1CSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
2W10803991 Whirlpool Electronic Control Board + Core
3W10839510 Whirlpool Electronic Control Board
4AW10864145 Whirlpool Control Panel
4W10864143 Whirlpool Control Panel
4BW10864146 Whirlpool Control Panel
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10283005 Whirlpool Mounting Bracket
13W10655465 Whirlpool Mounting Bracket
14GASKET, RUBBER
15W10318193 Whirlpool Cabinet Top
16CHASSIS, COVER TOP BACK 27"
