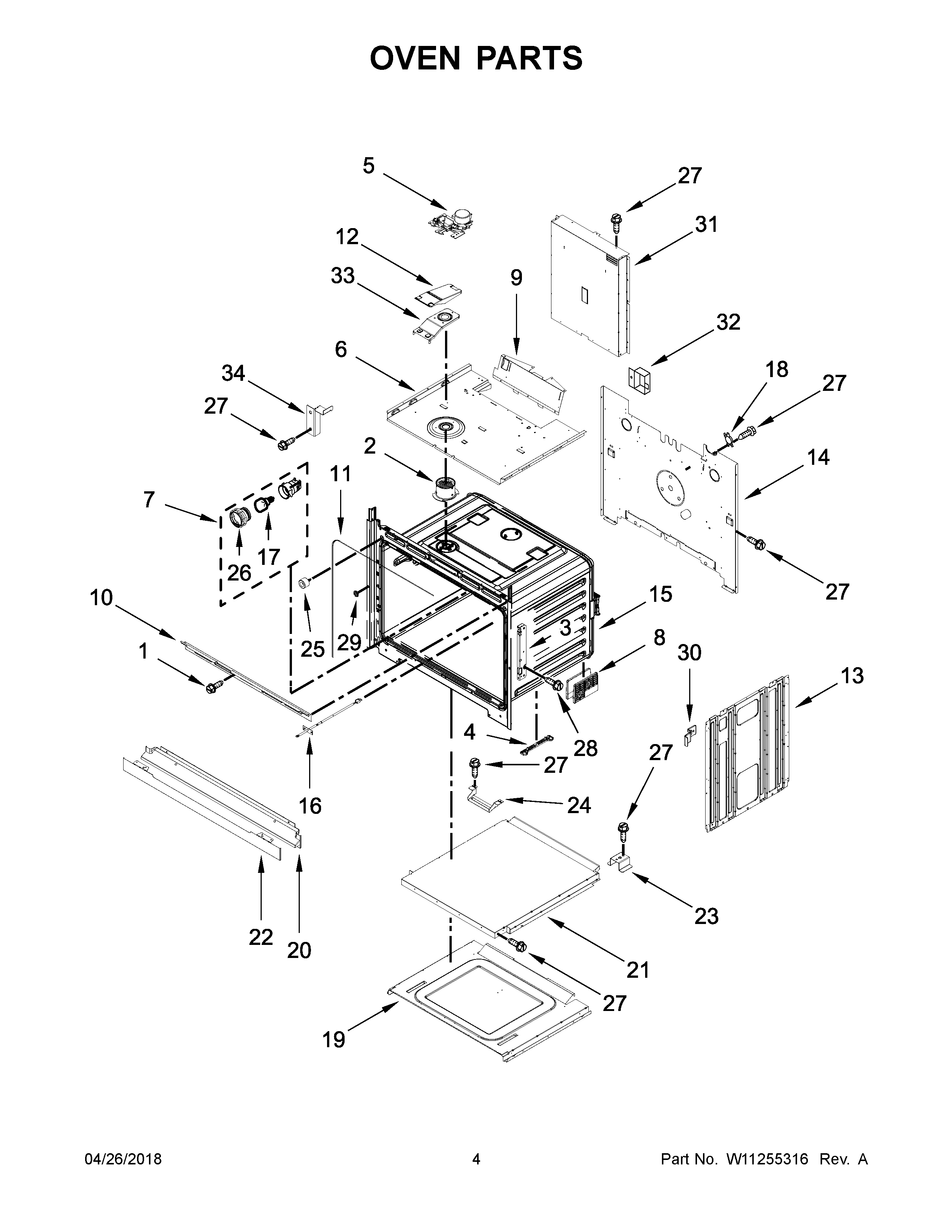

WOS51EC7AW05 03 – OVEN PARTS

Products

Position	Product
NI	W11688333 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10520716 Whirlpool Insulation
1	W11193480 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	WPW10734063 Whirlpool Indicator Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	W10283037 Whirlpool Exhaust Vent
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	WPW10412711 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	WPW10327375 Whirlpool Oven Vent
20A	WPW10351280 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10351237 Whirlpool Trim
22A	WPW10327378 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10412722 Whirlpool Light Lens
27	SCREW
28	WPW10254050 Whirlpool Screw
29	W10759525 Whirlpool Grommet
30	W10347649 Whirlpool Spacer
31	W10318196 Whirlpool BA Chassis
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
34	W10863234 Whirlpool Bracket
34A	W10863233 Whirlpool Bracket
