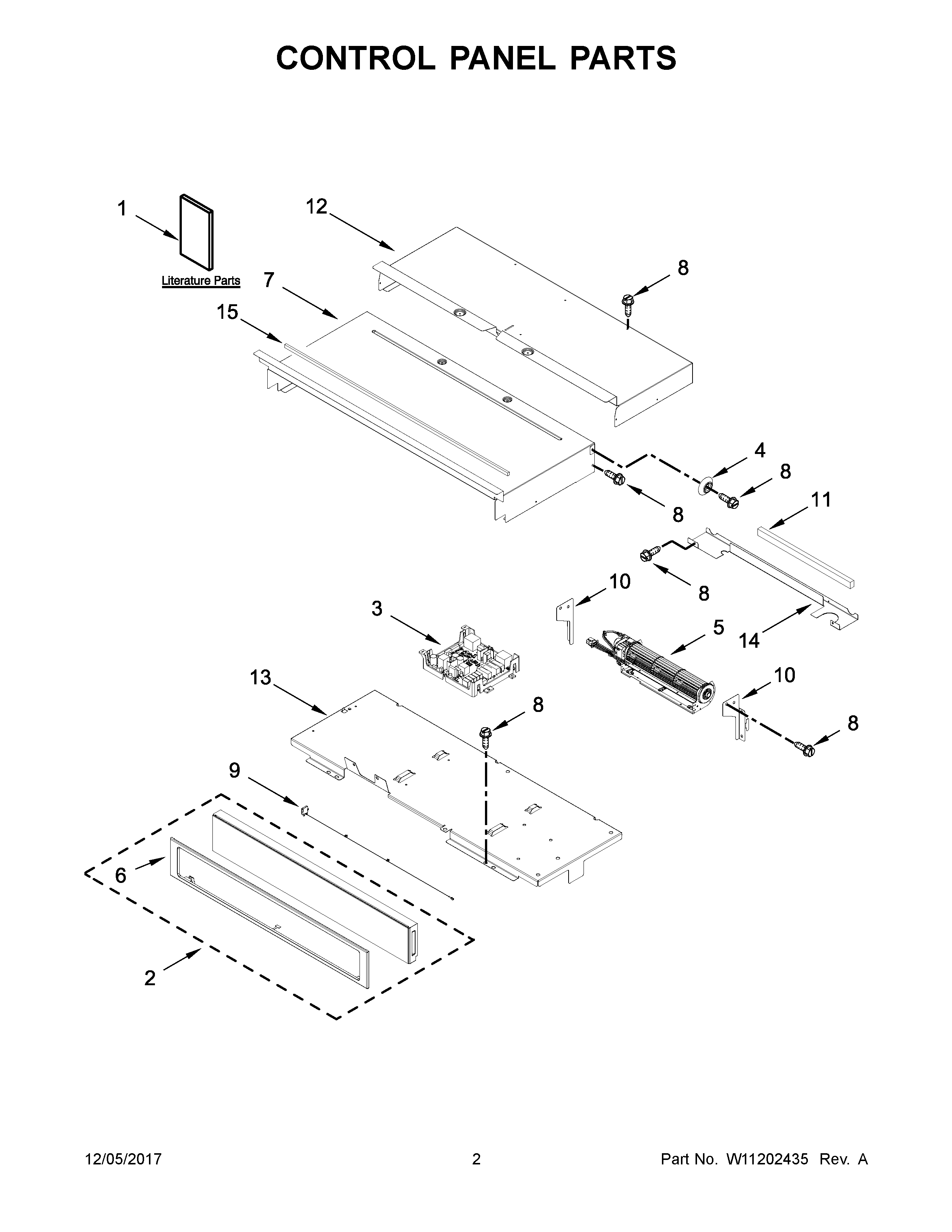

WOS51EC7HB00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11699910 Whirlpool Wire Harness
NI	W11233570 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11132989 Whirlpool Wire Harness
NI	HARNESS, MAIN
1C	GUIDE, INTERNET CONNECTIVITY
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1E	DIAGRAM, WIRING
1	INSTRUCTIONS, INSTALLATION
1D	SHEET, TECH
1B	GUIDE, USE & CARE
2	W11297715 Whirlpool Console + Core
2A	W11297724 Whirlpool Console + Core
2B	W11297725 Whirlpool Console + Core
3	W11261167 Whirlpool Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11248652 Whirlpool Blower
6B	W11112611 Whirlpool Control Panel
6A	SKIN, CONTROL PANEL (WHITE)
6	W11115276 Whirlpool Skin Panel
7	W10318193 Whirlpool Cabinet Top
8	SCREW
9	W11537624 Whirlpool Antenna Assembly
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10728475 Whirlpool Foam Seal
12	CHASSIS, COVER TOP BACK 27"
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	GASKET, RUBBER
