WOS51EC7HB01 03 – OVEN PARTS
Written by
in

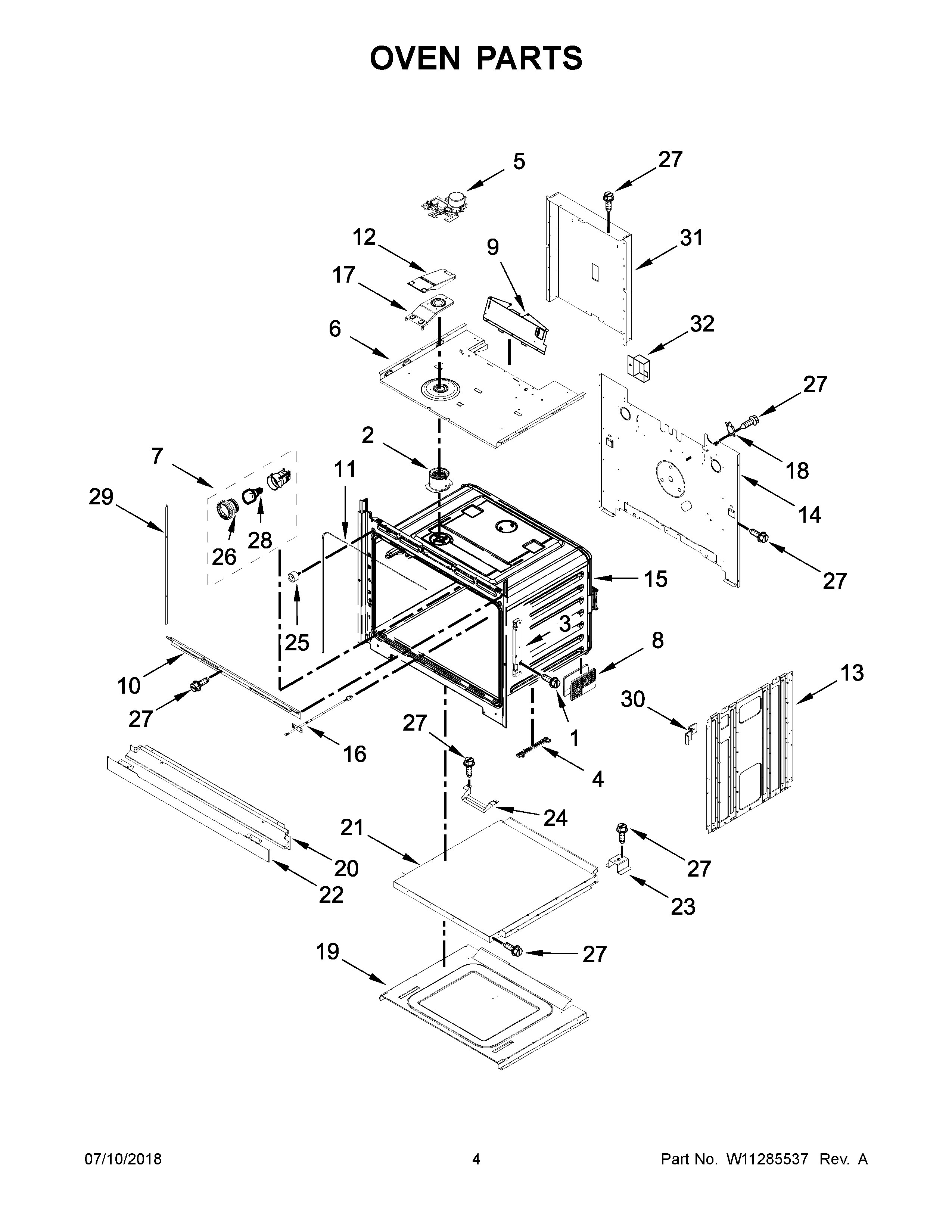

WOS51EC7HB01 03 – OVEN PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10520716 Whirlpool Insulation
NI
W11688333 Whirlpool Insulation
1
WPW10254050 Whirlpool Screw
2
W11240525 Whirlpool Vent Tube
3
W11613828 Whirlpool Hinge Receptacle
4
W11240831 Whirlpool Spacer
5
W10883049 Whirlpool Door Latch
6
CHASSIS, TOP
7
WPW10734063 Whirlpool Indicator Light
8
FOOT, BASE
9
W10904163 Whirlpool Vent Deflector
10
W10283037 Whirlpool Exhaust Vent
11
W10856596 Whirlpool Oven Gasket
12
W10616810 Whirlpool Exhaust Cover
13
SIDE, CHASSIS
14
BACK, CHASSIS
16
W10859573 Whirlpool Range Oven Temperature Sensor
17
W10616809 Whirlpool Vent Tube
18
WP4449751 Whirlpool Range Oven Thermostat Fix
19
BASE, CHASSIS
20A
W10506345 Whirlpool Vent
20
WPW10327375 Whirlpool Oven Vent
20B
WPW10351280 Whirlpool Oven Vent
21
WPW10283008 Whirlpool Access Cover
22B
WPW10327378 Whirlpool Trim
22
WPW10351237 Whirlpool Trim
22A
WPW10504025 Whirlpool Trim
23
W10213759 Whirlpool Support
24
W10351308 Whirlpool Support Bracket
25
WPW10351278 Whirlpool Bumper
26
WPW10412722 Whirlpool Light Lens
27
SCREW
28
WPW10412711 Whirlpool Light Bulb
29A
W10536160 Whirlpool Cover Assembly
30
W10347649 Whirlpool Spacer
31
W10318196 Whirlpool BA Chassis
32
8285593 Whirlpool Oven Wire Cover
←
