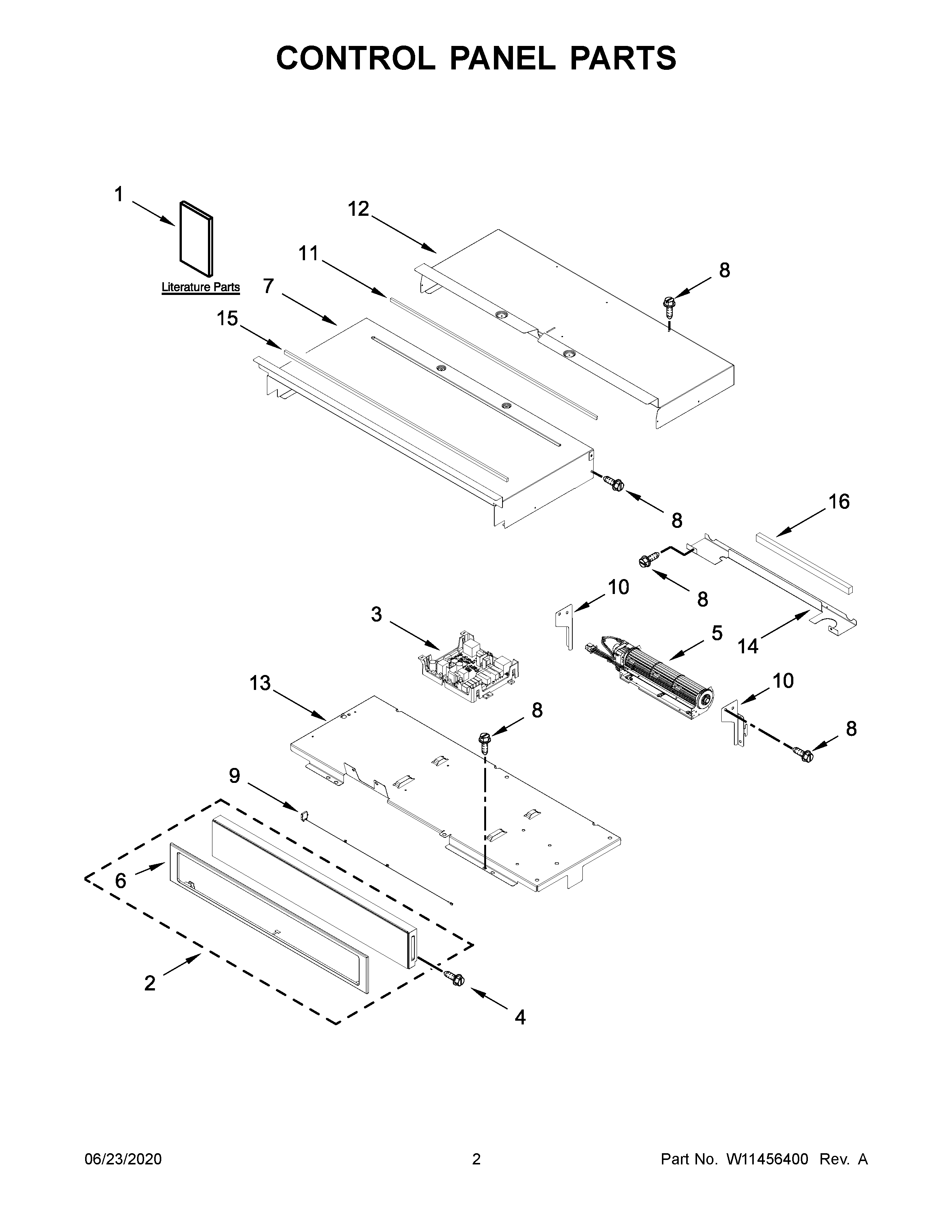

WOS51EC7HB02 02 – CONTROL PANEL PARTS

WOS51EC7HB02 02 – CONTROL PANEL PARTS

Written by

in

WOS51EC7HB02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW10655464 Whirlpool Bracket
NIW11699910 Whirlpool Wire Harness
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11233570 Whirlpool Wire Harness
NIW11225360 Whirlpool Wire Harness
NIW11225363 Whirlpool Wire Harness
NIW11132989 Whirlpool Wire Harness
1BGUIDE, USE & CARE
1DSHEET, TECH
1EDIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION
1CGUIDE, INTERNET CONNECTIVITY
1AINSTRUCTIONS, UNDERCOUNTER INSTALLATION
2BW11297725 Whirlpool Console + Core
2W11297715 Whirlpool Console + Core
2AW11297724 Whirlpool Console + Core
3W11261167 Whirlpool Electronic Control Board + Core
4WPY706189 Whirlpool Stove Screw
5W11248652 Whirlpool Blower
6BW11112611 Whirlpool Control Panel
6W11115276 Whirlpool Skin Panel
6ASKIN, CONTROL PANEL (WHITE)
7W10318193 Whirlpool Cabinet Top
8SCREW
9W11537624 Whirlpool Antenna Assembly
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10728475 Whirlpool Foam Seal
12CHASSIS, COVER TOP BACK 27"
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15GASKET, RUBBER (652MM)
16W10491987 Whirlpool Foam Seal
