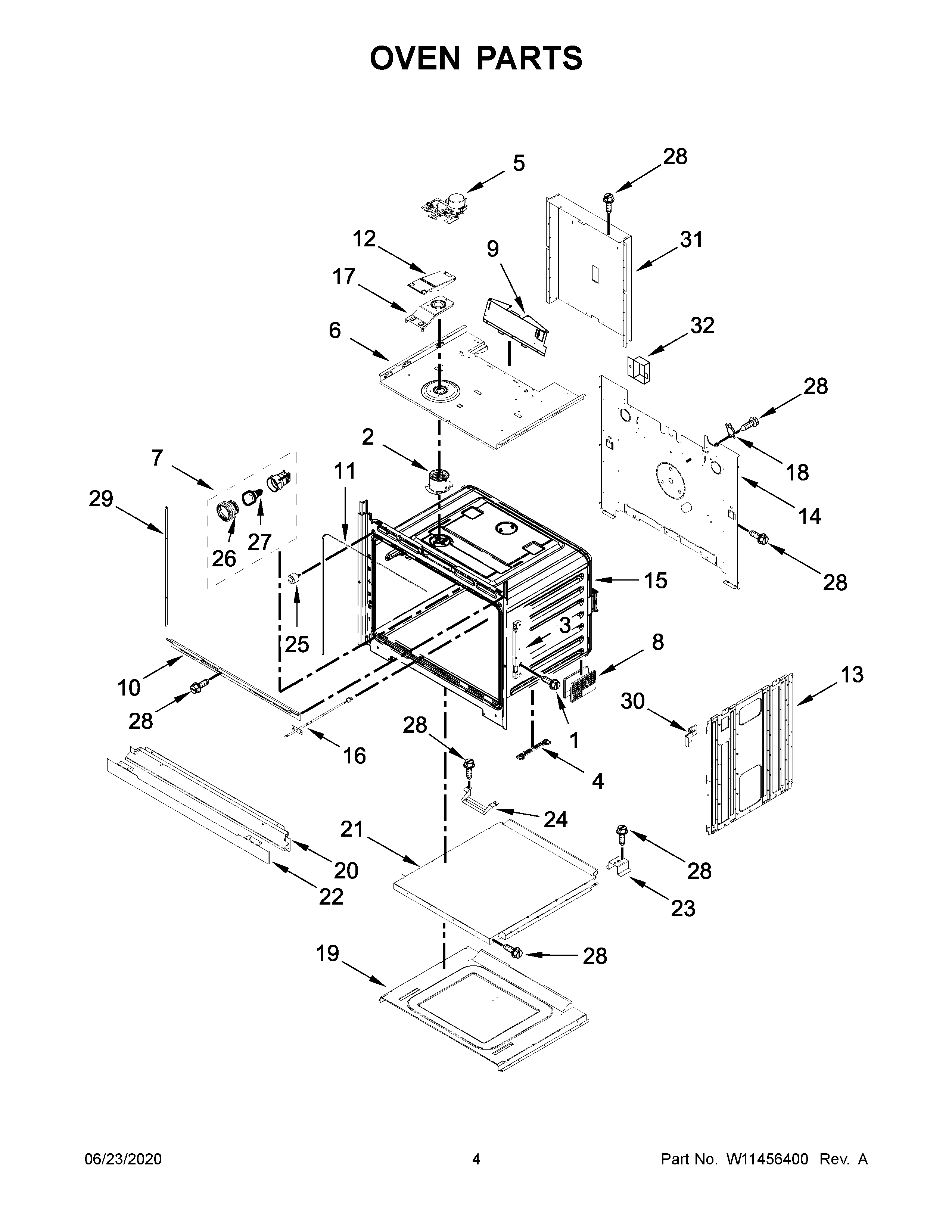

WOS51EC7HB02 03 – OVEN PARTS

Products

Position	Product
NI	W11688333 Whirlpool Insulation
NI	W10520716 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10254050 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	W11325541 Whirlpool Indicator Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	W10283037 Whirlpool Exhaust Vent
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	W10616809 Whirlpool Vent Tube
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20B	WPW10351280 Whirlpool Oven Vent
20A	W10506345 Whirlpool Vent
20	WPW10327375 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22A	WPW10504025 Whirlpool Trim
22B	WPW10327378 Whirlpool Trim
22	WPW10351237 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	W11450856 Whirlpool Light Lens
27	W11454079 Whirlpool Light Bulb
28	WPY706189 Whirlpool Stove Screw
29A	W10536160 Whirlpool Cover Assembly
30	W10347649 Whirlpool Spacer
31	W10318196 Whirlpool BA Chassis
32	8285593 Whirlpool Oven Wire Cover
