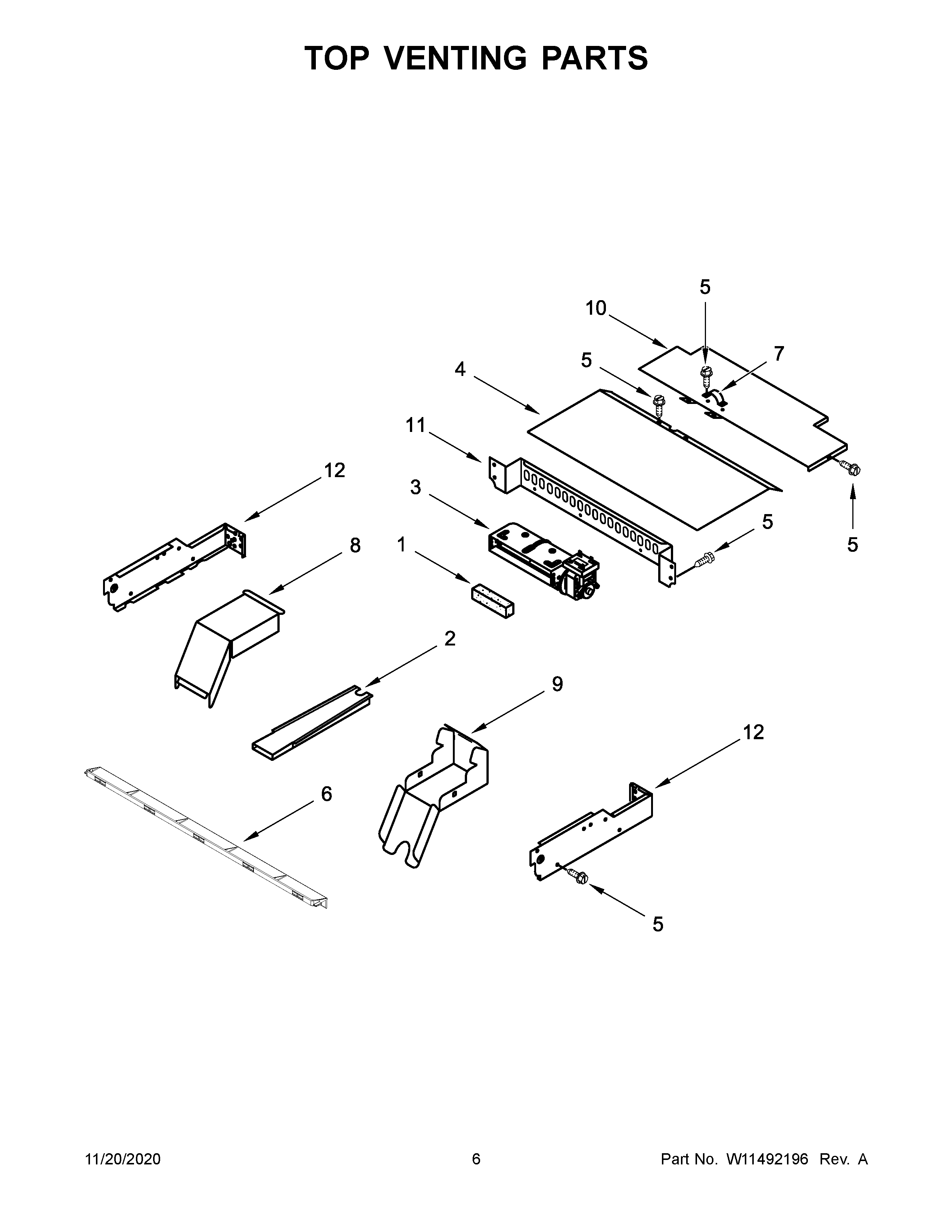

WOS51ES4ES02 04 – TOP VENTING PARTS

WOS51ES4ES02 04 – TOP VENTING PARTS

Written by

in

WOS51ES4ES02 04 – TOP VENTING PARTS

Products

PositionProduct
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WPW10176670 Whirlpool Blower
4Cover, Top Front
5SCREW
64448547 Whirlpool Oven Vent Control
74448664 Whirlpool Oven Mounting Bracket
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
104450549 Whirlpool Oven Top Cover
11Back, Control
12AW10755214 Whirlpool Side Complete
12W10790240 Whirlpool Side Assembly Complete
