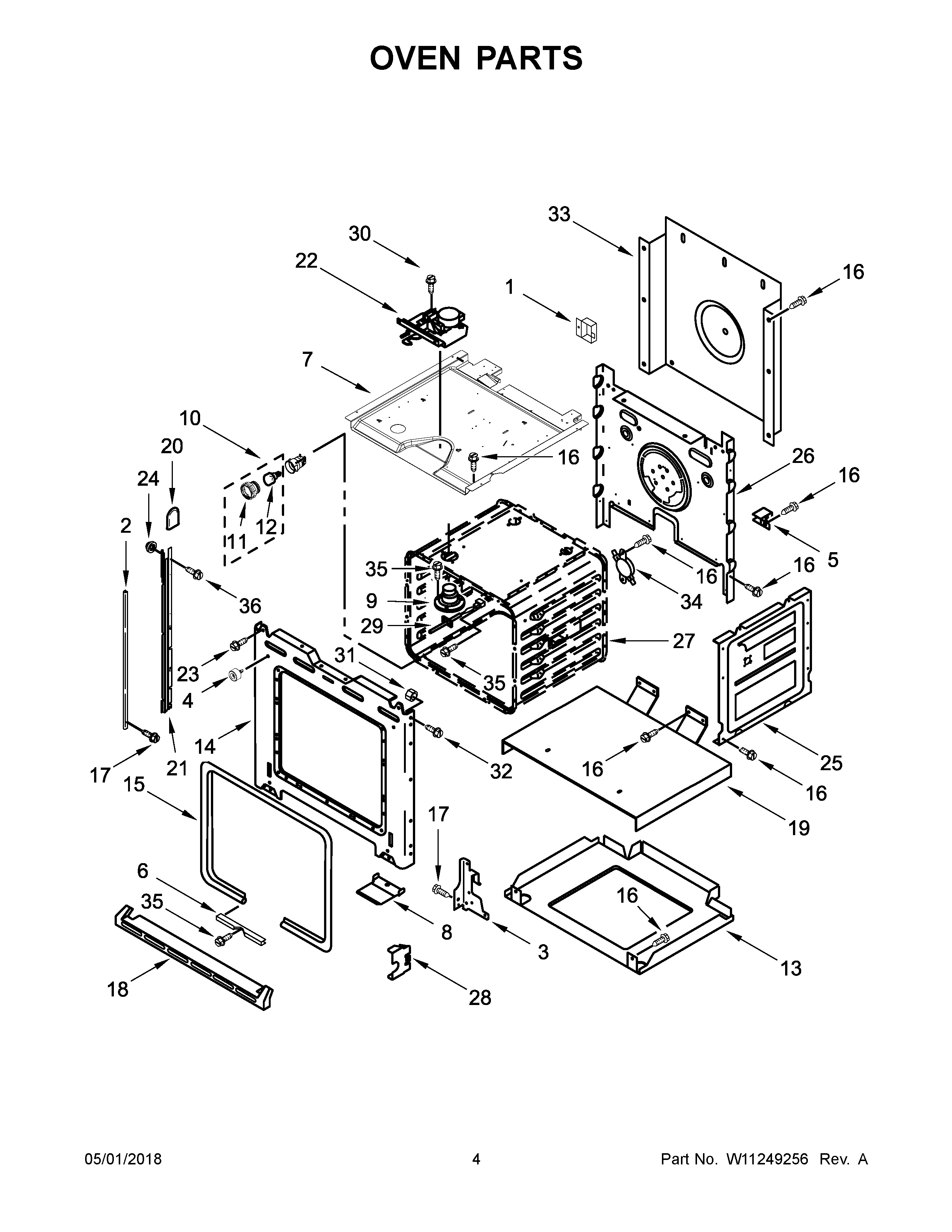

WOS51ES4EW01 03 – OVEN PARTS

Products

Position	Product
NI	WP4449314 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, SIDE RAIL
NI	WP4450363 Whirlpool Insulation
NI	RETAINER, SIDE RAIL INSULATION
1	8285593 Whirlpool Oven Wire Cover
2A	W10756500 Whirlpool Trim Assembly
2B	W10756495 Whirlpool Trim
2C	W10756496 Whirlpool Trim
2E	WPW10144983 Whirlpool Trim
2D	W10144984 Whirlpool Trim
2	W10756499 Whirlpool Trim
3A	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	W10804302 Whirlpool Support
6	WP4448933 Whirlpool Retainer
7	W10784377 Whirlpool Top
8	4455807 Whirlpool Oven Vent Deflector
9	W10861715 Whirlpool Vent Tube
10	WPW10734063 Whirlpool Indicator Light
11	WPW10412722 Whirlpool Light Lens
12	WPW10412711 Whirlpool Light Bulb
13	4450525 Whirlpool Oven Bottom Assembly
14	9760754 Whirlpool Oven Front Frame
15	WP4455380 Whirlpool Door Gasket
16	SCREW
17	WP4449743 Whirlpool Screw
18A	W10339573 Whirlpool Oven Vent
18	W10339572 Whirlpool Oven Vent
18B	W11193481 Whirlpool Oven Vent
19	4451476 Whirlpool Support
20	Cap, Spacer
21	814372 Whirlpool Oven Rail Mount
21A	814371 Whirlpool Oven Rail Mount
22	WPW10195934 Whirlpool Door Latch
23	Screw
24	WP4448444 Whirlpool Grommet
25	W10782197 Whirlpool Side Panel
26	W10784207 Whirlpool Rear Cover
28	4452152 Whirlpool Oven Mounting Bracket
29	W10859573 Whirlpool Range Oven Temperature Sensor
30	WP4449154 Whirlpool Screw
31	WP4450118 Whirlpool Nut
32	WP4450038 Whirlpool Screw
33	WP4451747 Whirlpool Rear Cover
34	W11034459 Whirlpool Thermostat
35	W10850807 Whirlpool Screw
36	SCREW
