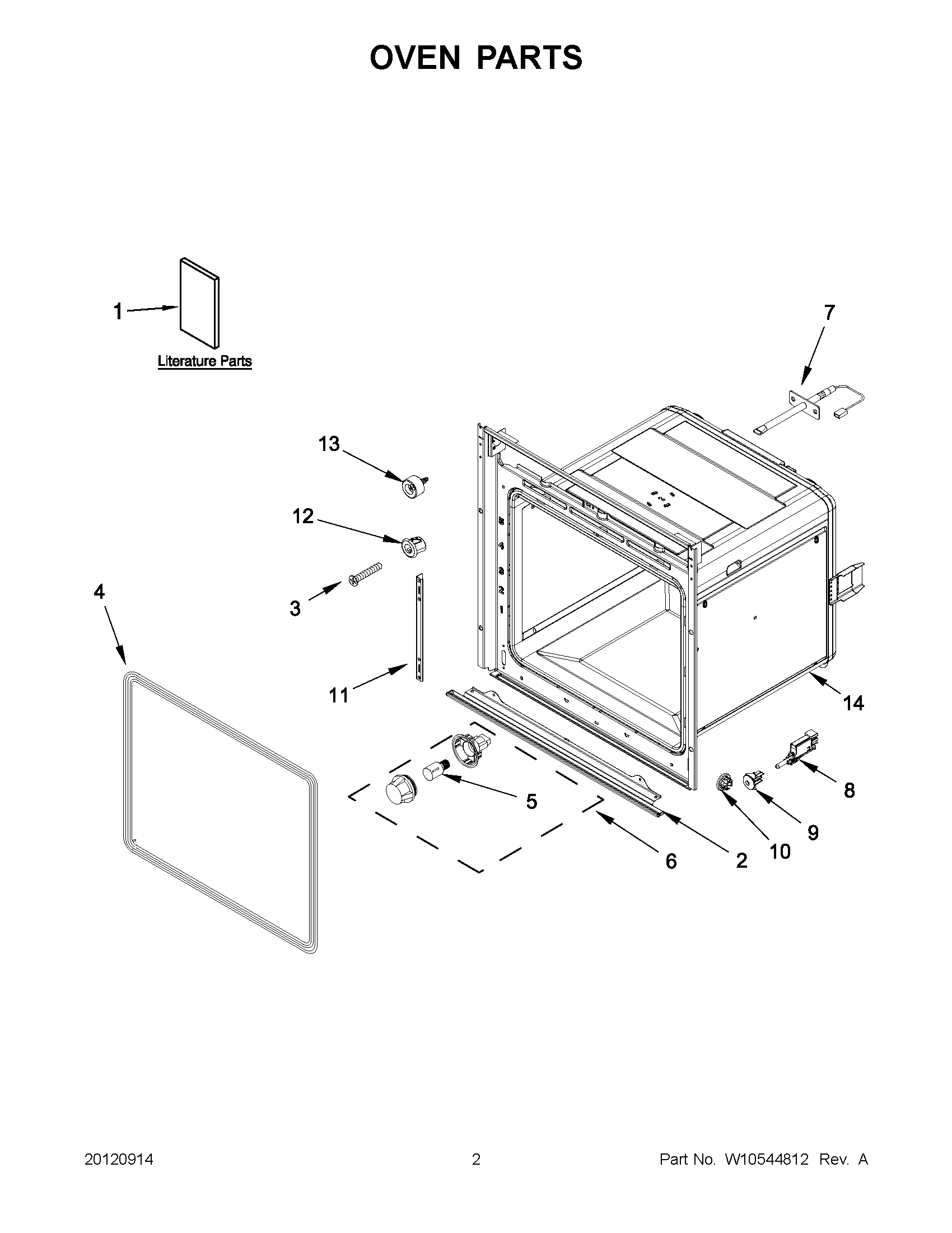

WOS52EM4AS0 01 – OVEN PARTS

WOS52EM4AS0 01 – OVEN PARTS

Written by

in

WOS52EM4AS0 01 – OVEN PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2W10517979 Whirlpool Trim Assembly
3W10519818 Whirlpool Screw
4GASKET, DOOR
5BULB, HALOGEN 40 WATT
6ASSEMBLY, BULB INCLUDES SOCKET AND LENS COVER
7PROBE, OVEN TEMPERATURE
8ASSEMBLY, DOOR SWITCH
9JOINT, DOOR SWITCH
10PLUG, OVEN
11HINGE, RUNNING MECHANISM
12BUMPER, OVEN
13BUMPER, OVEN DOOR
14CABINET (NOT A SERVICEABLE PART)
