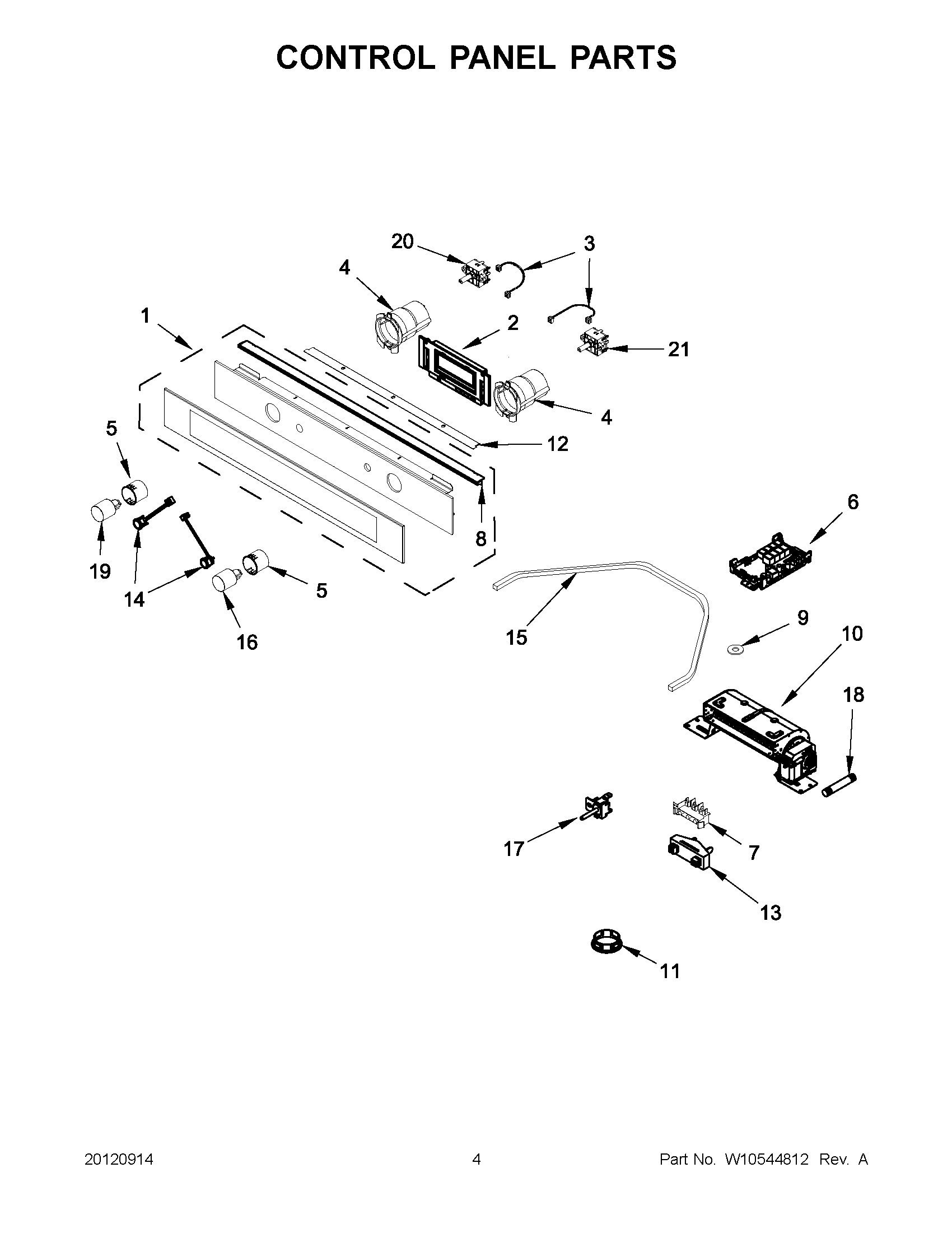

WOS52EM4AS0 02 – CONTROL PANEL PARTS

WOS52EM4AS0 02 – CONTROL PANEL PARTS

Written by

in

WOS52EM4AS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1PANEL, CONTROL GLASS AND FRAME
2BOARD, DISPLAY G2 EVO ANALOGUE
3HARNESS, DISPLAY SELECTOR SWITCH
4SUPPORT, PUSH BUTTON
5RING, PUSH TURN KNOB
6BOARD, POWER ESTER
7BLOCK, TERMINAL
8W10517985 Whirlpool Trim Panel M
9GASKET, TOP PANEL
10BLOWER, COOLING FAN
11GROMMET, CABLE
12GASKET, CONTROL PANEL
13CLAMP, CABLE
14BUTTON, PUSH
15GASKET, BLOWER MOTOR
16KNOB, PUSH BUTTON
17THERMOSTAT 285 CELCIUS
18FUSE, 315MA
19KNOB, OVEN
20SWITCH, OVEN 11 POSITION
21SWITCH, SELECTOR +/- INCREMENTAL
