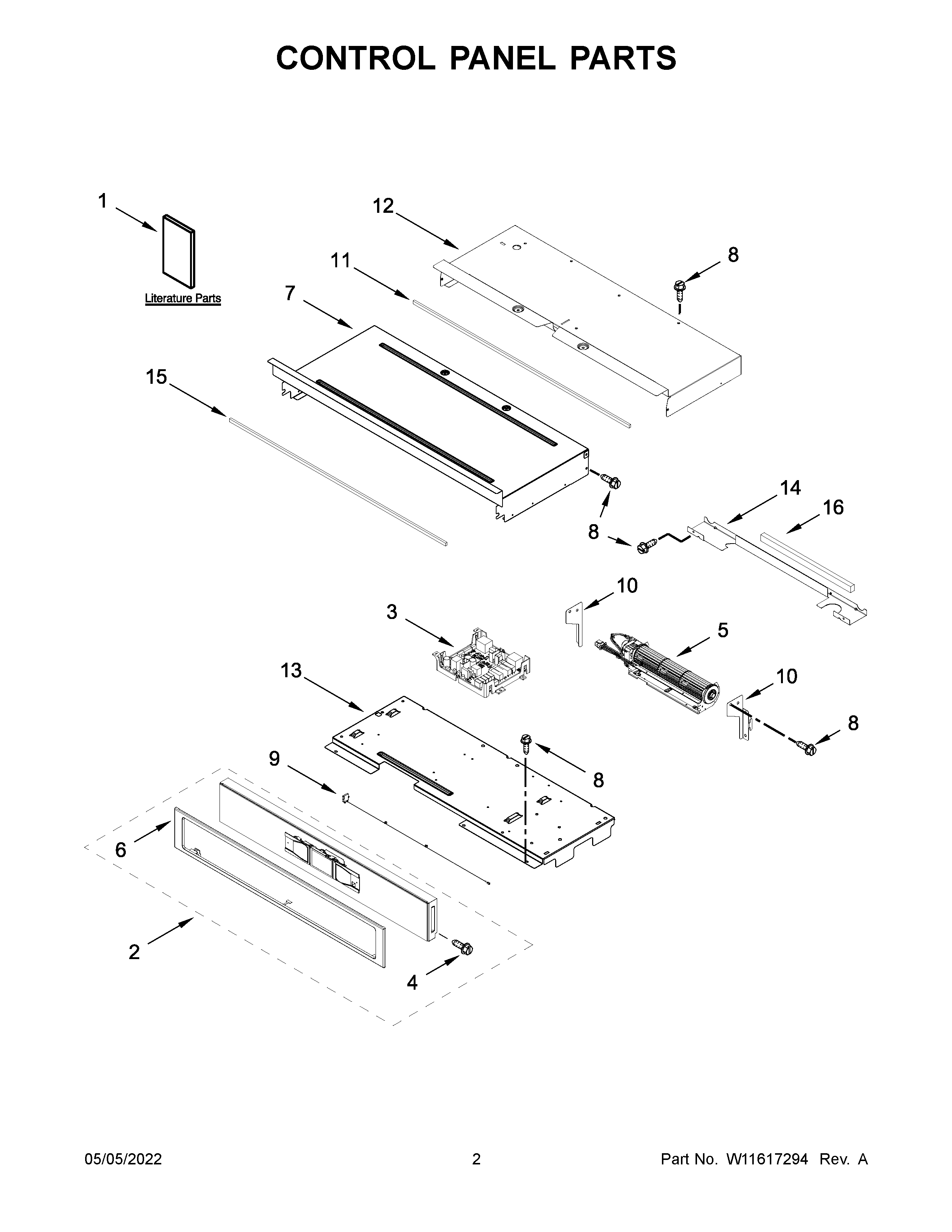

WOS72EC0HS20 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11256623 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	W10487999 Whirlpool Clip
NI	W10655464 Whirlpool Bracket
NI	W11699910 Whirlpool Wire Harness
NI	W11727826 Whirlpool Wire Harness
NI	BAG, HARDWARE
NI	W11233570 Whirlpool Wire Harness
NI	W11256626 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1B	TECH SHEET
1	OWNER'S MANUAL
1A	QUICK START GUIDE
2A	W11616676 Whirlpool Console + Core
2	W11616677 Whirlpool Console + Core
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	W11113207 Whirlpool Skin Panel
6A	SKIN, CONTROL PANEL (BLACK STAINLESS)
7	COVER, 30 IN CHASSIS TOP FRONT
8	SCREW
9	W11537624 Whirlpool Antenna Assembly
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10728475 Whirlpool Foam Seal
12	COVER, 30 IN CHASSIS TOP BACK
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	GASKET, RUBBER
16	W10491987 Whirlpool Foam Seal
