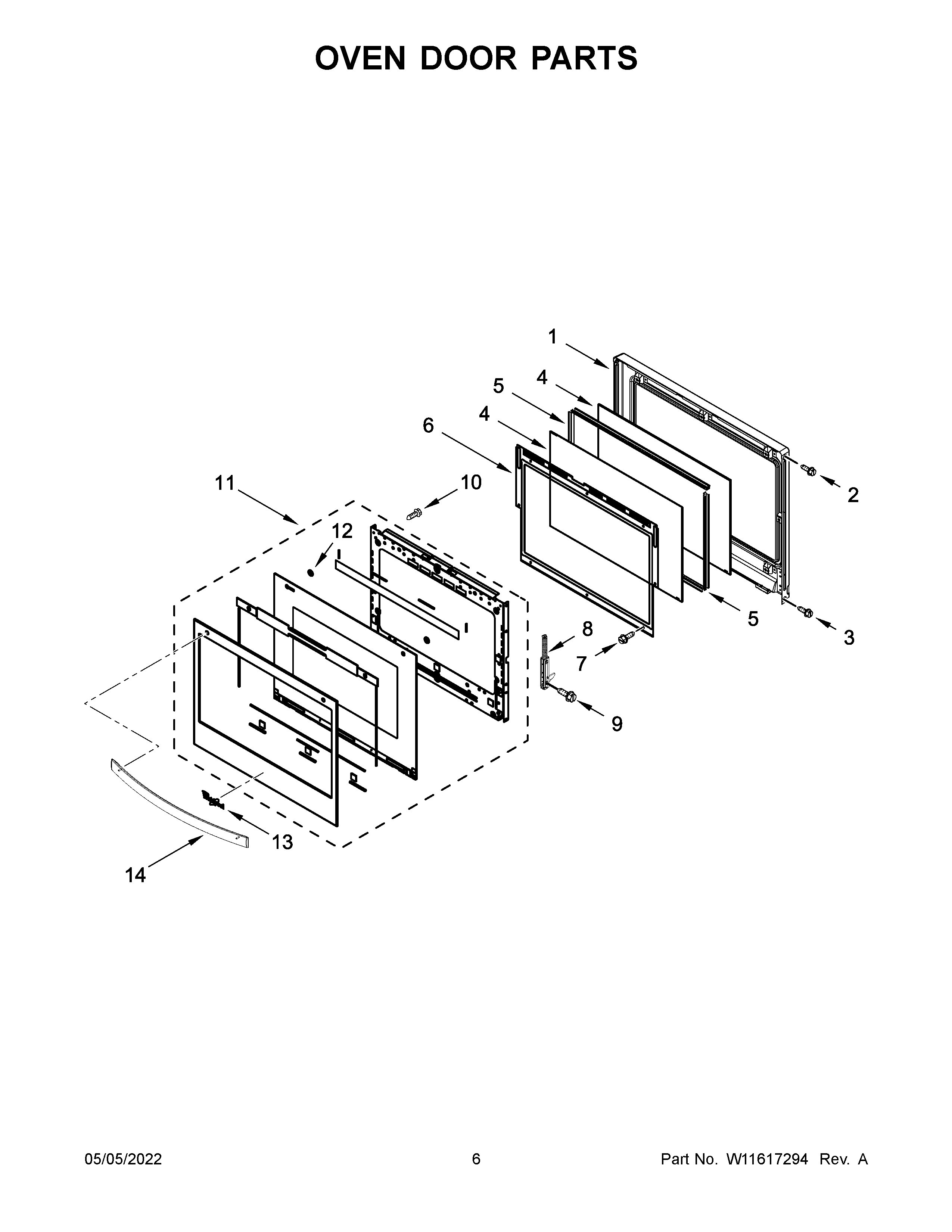

WOS72EC0HS20 04 – OVEN DOOR PARTS

WOS72EC0HS20 04 – OVEN DOOR PARTS

Written by

in

WOS72EC0HS20 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11617223 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10618107 Whirlpool Door Glass Assembly
5SPACER
6W11598182 Whirlpool Retainer Clip
7SCREW
8W11744485 Whirlpool Door Hinge
8AW11296078 Whirlpool Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11600322 Whirlpool Glass Door
11AW11600348 Whirlpool Door Glass
12W11676355 Whirlpool Washer
13W11178521 Whirlpool Dishwasher Nameplate
14AW11110500 Whirlpool Door Handle
14W11110499 Whirlpool Stove Door Handle
