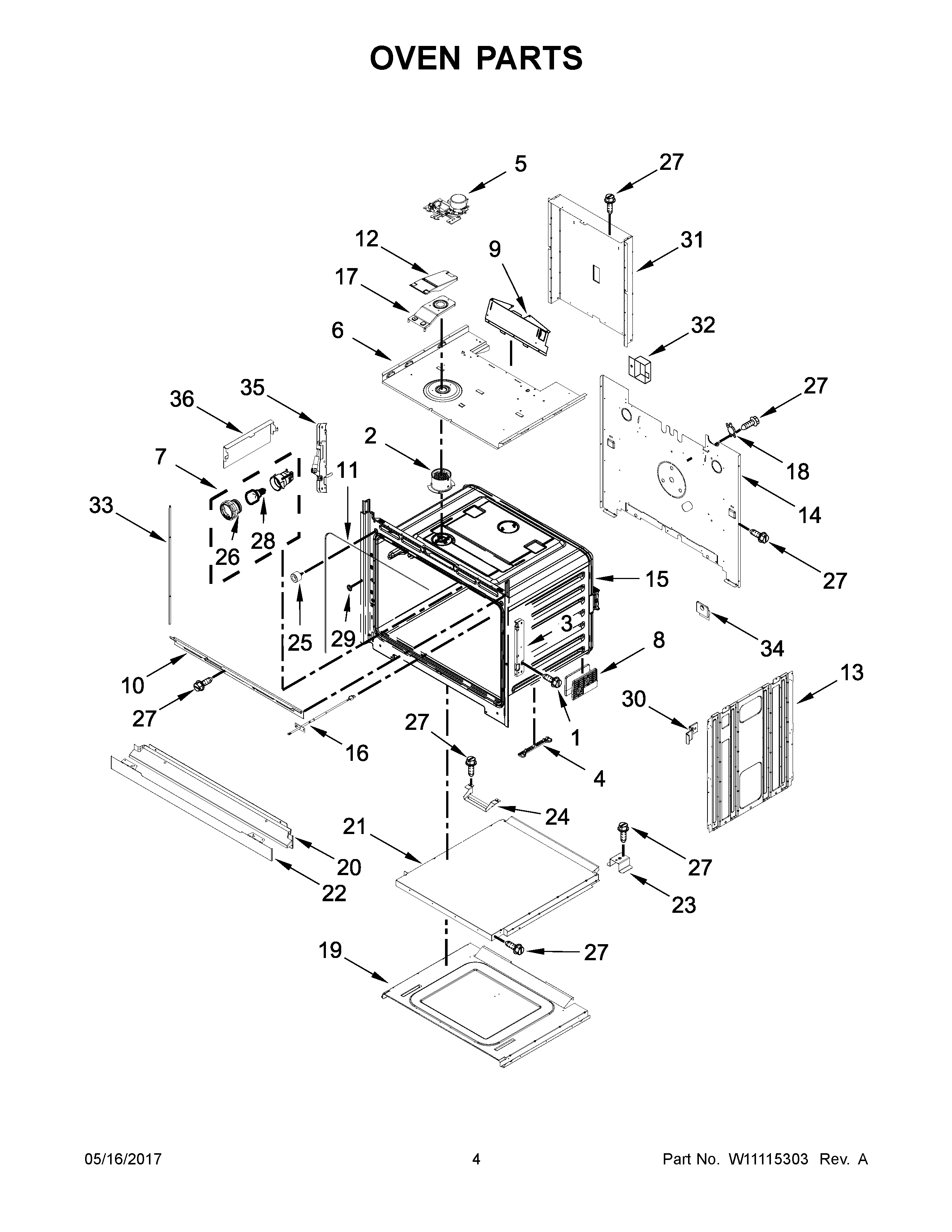

WOS72EC7HS00 03 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10520716 Whirlpool Insulation
NI	W11688333 Whirlpool Insulation
NI	W11685004 Whirlpool Insulation
1	WPW10254050 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	WPW10734063 Whirlpool Indicator Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	W10283037 Whirlpool Exhaust Vent
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	PANEL-SIDE
13A	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	W10616809 Whirlpool Vent Tube
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20A	WPW10351280 Whirlpool Oven Vent
20	WPW10327375 Whirlpool Oven Vent
20B	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
21	WPW10283008 Whirlpool Access Cover
22A	WPW10327378 Whirlpool Trim
22	WPW10351237 Whirlpool Trim
22B	W11115277 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10412722 Whirlpool Light Lens
27	W11193480 Whirlpool Screw
28	WPW10412711 Whirlpool Light Bulb
29	W10759525 Whirlpool Grommet
30	SPACERS, FRONT
31	W10318196 Whirlpool BA Chassis
32	8285593 Whirlpool Oven Wire Cover
33A	W10536160 Whirlpool Cover Assembly
34	SPACER, CENTER
35	W11045086 Whirlpool Hinge Receptacle
36	SHIELD, SLOW CLOSE HINGE
