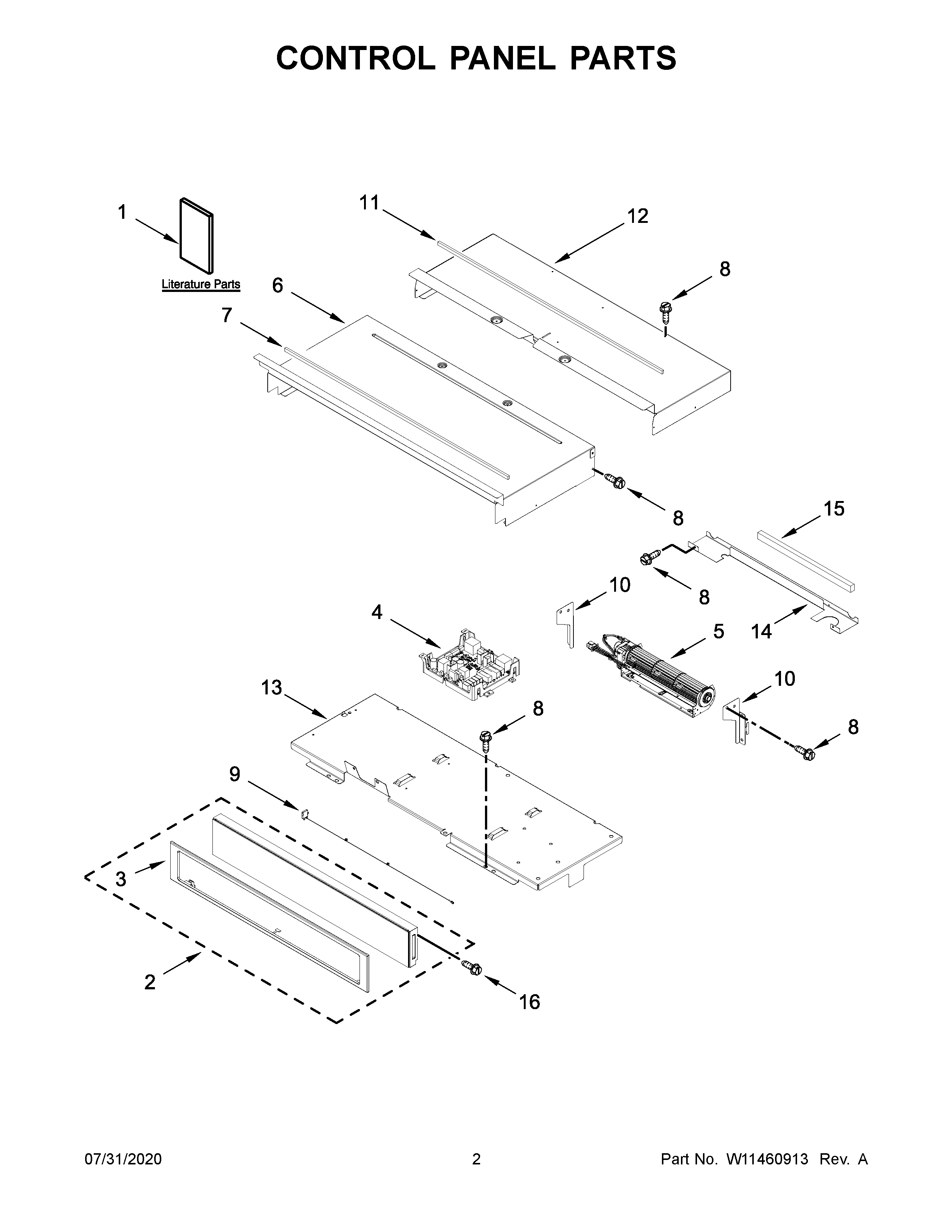

WOS72EC7HS02 02 – CONTROL PANEL PARTS

WOS72EC7HS02 02 – CONTROL PANEL PARTS

Written by

in

WOS72EC7HS02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, SIGNAL
NIW11132989 Whirlpool Wire Harness
NIW11233570 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NIWPW10339879 Whirlpool Wire Tie
NIW11699910 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11225368 Whirlpool Wire Harness
1AINSTRUCTIONS, UNDERCOUNTER INSTALLATION
1BQUICK START GUIDE
1DDIAGRAM, WIRING
1OWNER'S MANUAL
1CSHEET, TECH
2W11428585 Whirlpool Console + Core
2AW11428865 Whirlpool Console
3W11112611 Whirlpool Control Panel
3AW11112612 Whirlpool Control Panel
4W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
5W11248652 Whirlpool Blower
6W10318193 Whirlpool Cabinet Top
7GASKET, RUBBER (652MM)
8SCREW
9W11537624 Whirlpool Antenna Assembly
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10728475 Whirlpool Foam Seal
12CHASSIS, COVER TOP BACK 27"
13TRAY, ELECTRONIC
14W10655465 Whirlpool Mounting Bracket
15W10491987 Whirlpool Foam Seal
16WP9740849 Whirlpool Screw
