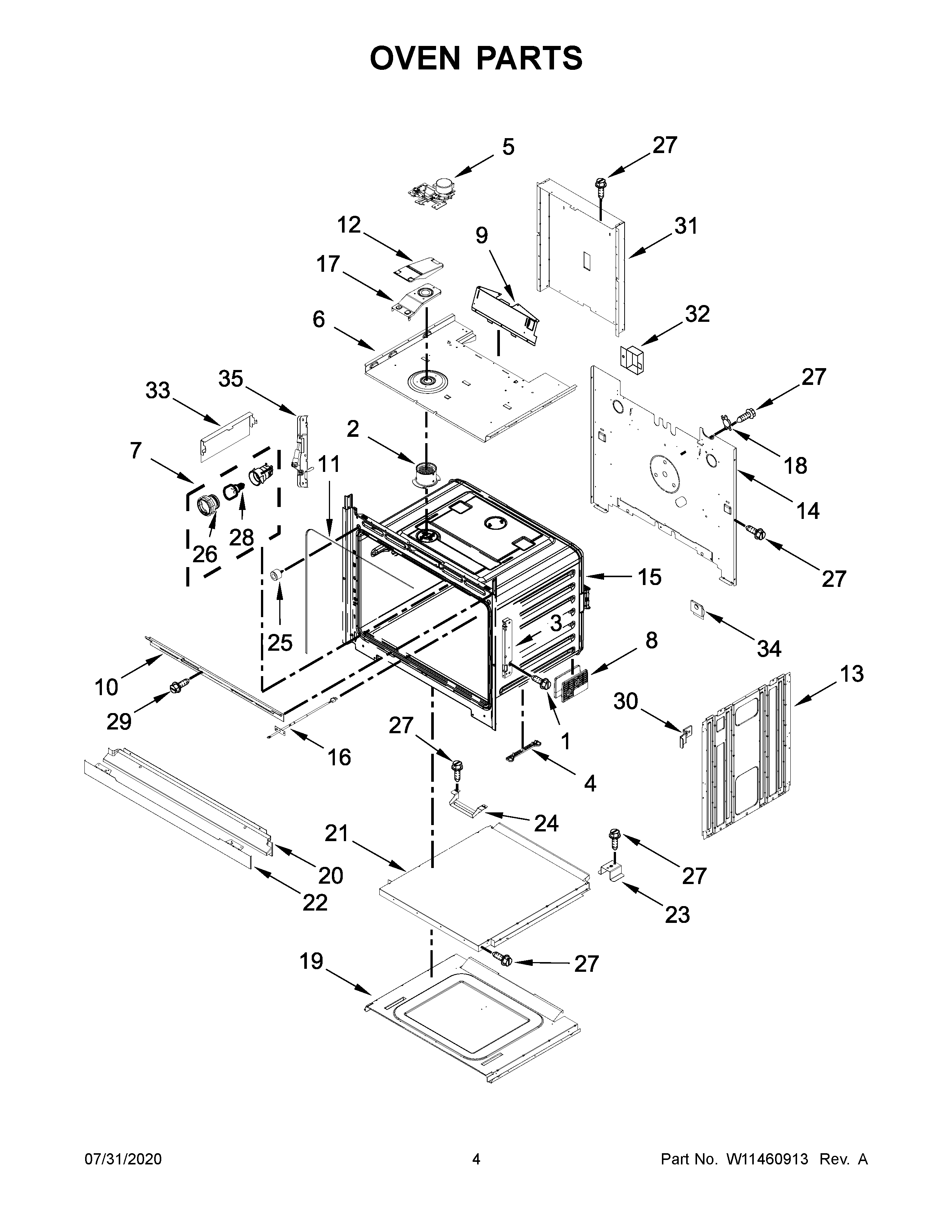

WOS72EC7HS02 03 – OVEN PARTS

Products

Position	Product
NI	W10520716 Whirlpool Insulation
NI	INSULATION
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688333 Whirlpool Insulation
1	WPW10254050 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	W11325541 Whirlpool Indicator Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	W10283037 Whirlpool Exhaust Vent
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13A	SIDE, CHASSIS
13	PANEL-SIDE
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	W10616809 Whirlpool Vent Tube
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	WPW10351280 Whirlpool Oven Vent
20A	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
21	WPW10283008 Whirlpool Access Cover
22A	W11115277 Whirlpool Trim
22	WPW10327378 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	W11450856 Whirlpool Light Lens
27	SCREW
28	W11454079 Whirlpool Light Bulb
29	WPY706189 Whirlpool Stove Screw
30	SPACERS, FRONT
31	W10318196 Whirlpool BA Chassis
32	8285593 Whirlpool Oven Wire Cover
33	SHIELD, SLOW CLOSE HINGE
34	SPACER, CENTER
35	W11045086 Whirlpool Hinge Receptacle
