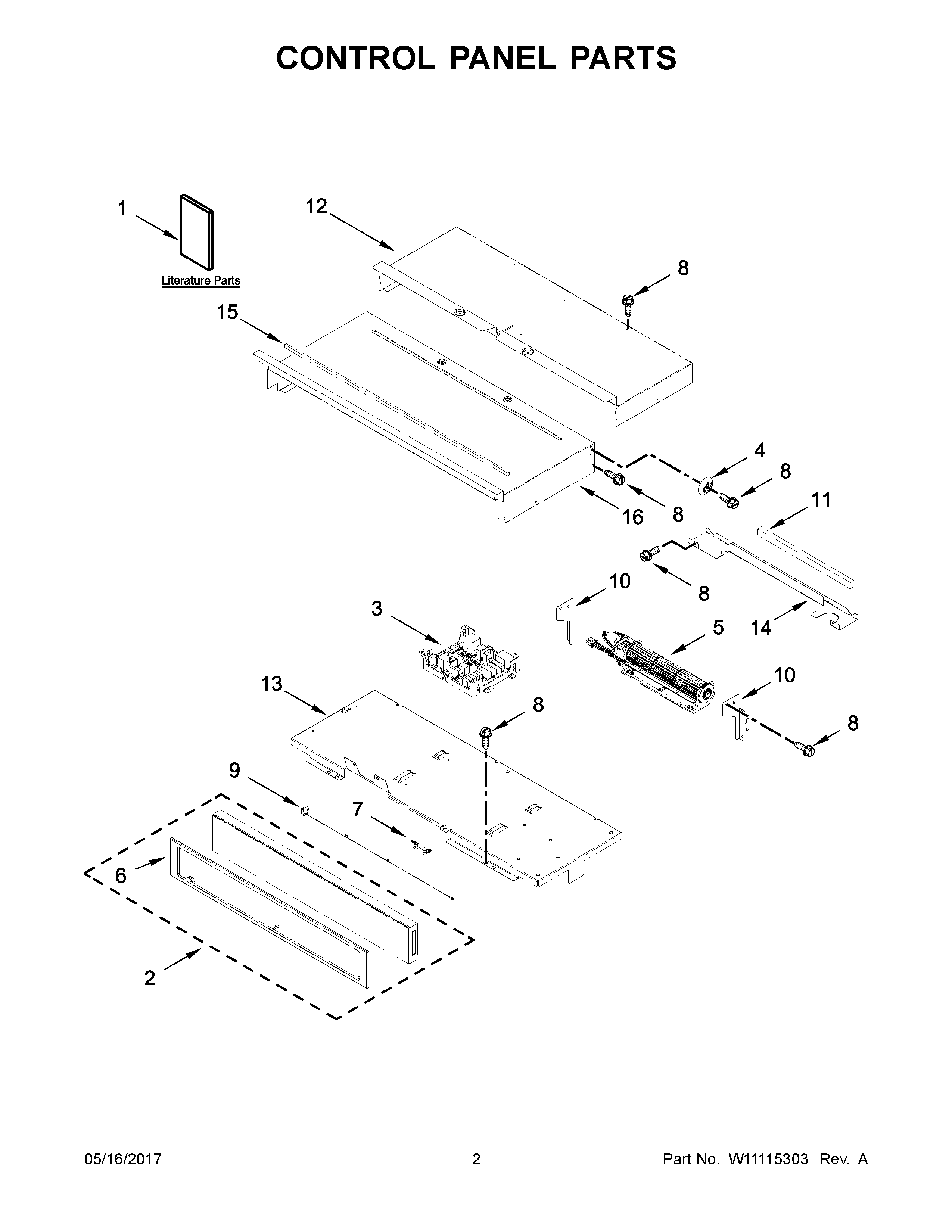

WOS72EC7HV00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11233570 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	WP4450952 Whirlpool Conduit
NI	HARNESS, MAIN
NI	4452400 Whirlpool Microwave Wire Harness
NI	WPW10339879 Whirlpool Wire Tie
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1E	DIAGRAM, WIRING
1C	GUIDE, INTERNET CONNECTIVITY
1D	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1B	GUIDE, USE & CARE
2	W11308971 Whirlpool Console Assembly
2B	W11428865 Whirlpool Console
2A	W11428585 Whirlpool Console + Core
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11248652 Whirlpool Blower
6A	W11112611 Whirlpool Control Panel
6	W11115276 Whirlpool Skin Panel
6B	W11112612 Whirlpool Control Panel
7	WPW10545255 Whirlpool Thermal Fuse
8	SCREW
9	W11537624 Whirlpool Antenna Assembly
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10728475 Whirlpool Foam Seal
12	CHASSIS, COVER TOP BACK 27"
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	GASKET, RUBBER
16	W10318193 Whirlpool Cabinet Top
