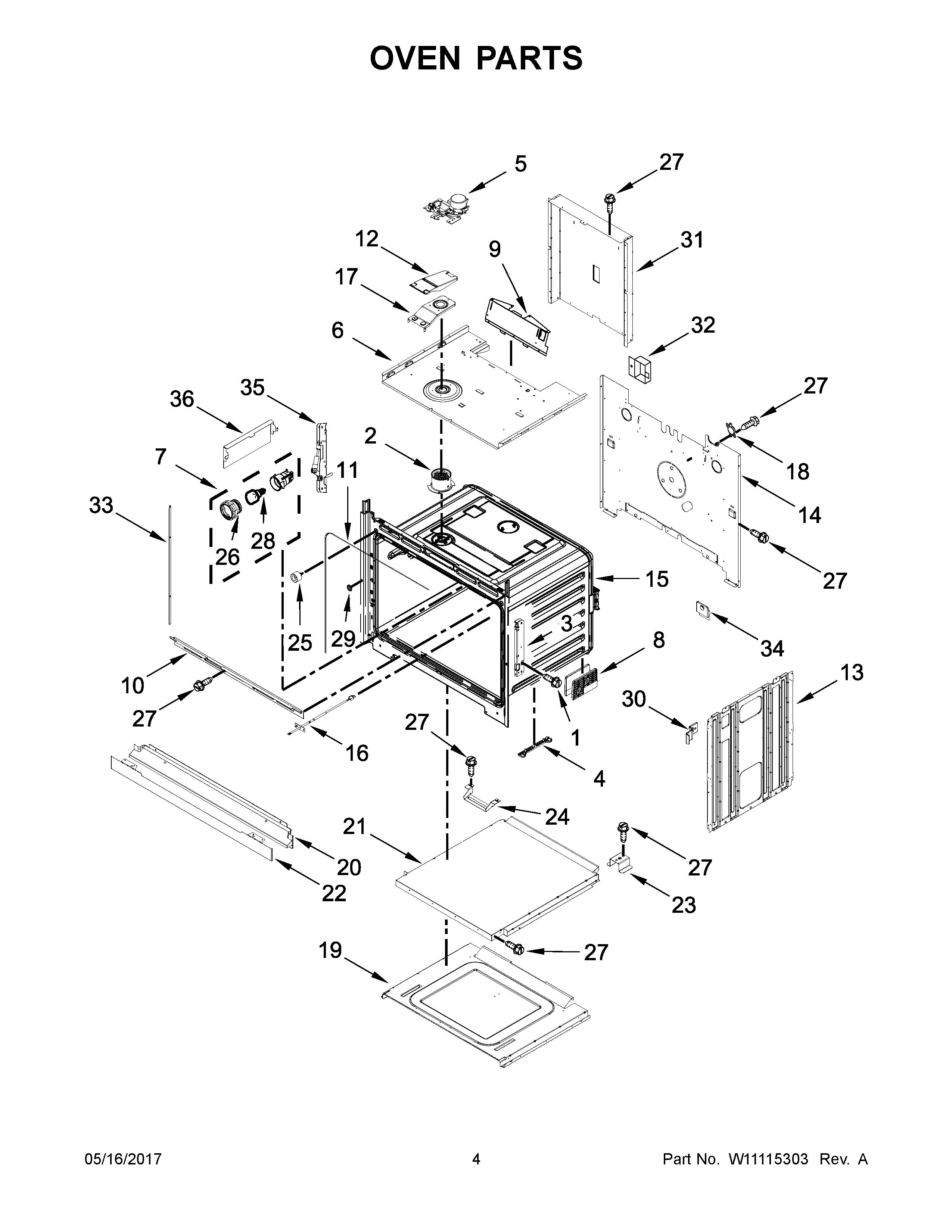

WOS72EC7HV00 03 – OVEN PARTS

WOS72EC7HV00 03 – OVEN PARTS

Written by

in

WOS72EC7HV00 03 – OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10520716 Whirlpool Insulation
NIW11688333 Whirlpool Insulation
NIW11685004 Whirlpool Insulation
1WPW10254050 Whirlpool Screw
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11240831 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6CHASSIS, TOP
7WPW10734063 Whirlpool Indicator Light
8FOOT, BASE
9W10904163 Whirlpool Vent Deflector
10W10283037 Whirlpool Exhaust Vent
11W10856596 Whirlpool Oven Gasket
12W10616810 Whirlpool Exhaust Cover
13PANEL-SIDE
13ASIDE, CHASSIS
14BACK, CHASSIS
16W10859573 Whirlpool Range Oven Temperature Sensor
17W10616809 Whirlpool Vent Tube
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20AWPW10351280 Whirlpool Oven Vent
20WPW10327375 Whirlpool Oven Vent
20BASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
21WPW10283008 Whirlpool Access Cover
22AWPW10327378 Whirlpool Trim
22WPW10351237 Whirlpool Trim
22BW11115277 Whirlpool Trim
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10412722 Whirlpool Light Lens
27W11193480 Whirlpool Screw
28WPW10412711 Whirlpool Light Bulb
29W10759525 Whirlpool Grommet
30SPACERS, FRONT
31W10318196 Whirlpool BA Chassis
328285593 Whirlpool Oven Wire Cover
33AW10536160 Whirlpool Cover Assembly
34SPACER, CENTER
35W11045086 Whirlpool Hinge Receptacle
36SHIELD, SLOW CLOSE HINGE
