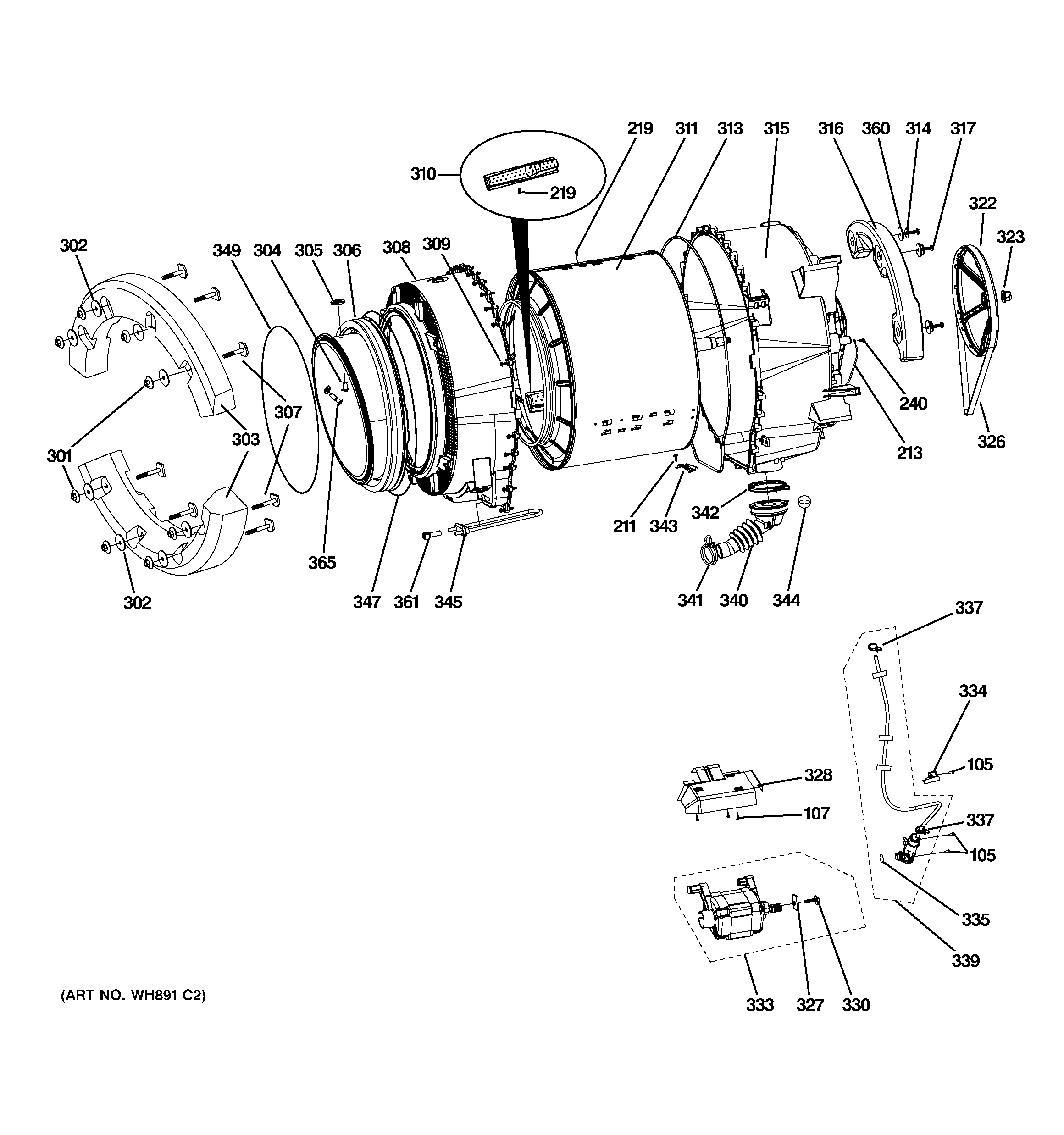

WPDH8900J1WW TUB & MOTOR

WPDH8900J1WW TUB & MOTOR

Written by

in

WPDH8900J1WW TUB & MOTOR

Products

PositionProduct
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
211GEN WH02X10188
213GEN WH19X10059
213GEN WH19X10060
219WH02X10189 GE Screw ST4 13 F05
240GEN WH02X10198
301WH02X10204 GE Nut M8
302WH02X10205 GE Washer
303GEN WH01X10393
304GEN WH08X10021
305GEN WH02X10206
306WH08X10041 GE Door Gasket
307WH02X10207 GE M8 Bolt 48
308GEN WH45X10069
309WH02X10208 GE Screw ST6 35
310GEN WH16X10110
311WH45X10143 GE Basket Assembly
313GEN WH08X10023
314GEN WH01X10394
315GEN WH45X10082
316GEN WH01X10395
317GEN WH02X10210
322GEN WH07X10016
323GEN WH02X10211
326WH08X10024 GE Washer Drive Belt
327WH02X10212 GE Motor
328GEN WH16X10080
330GEN WH02X10213
333WH20X10028 GE Motor Assembly Kit
334WH01X10396 GE Pressure Hose Support
335WH01X10397 GE Air Chamber Ring
337WH01X10273 GE Pressure Hose Clamp
339GEN WH41X10190
340GEN WH41X10191
341WH01X10275 GE Pump Clamp
342GEN WH01X10276
343WH16X10081 GE Heater Support
344GEN WH01X10398
345GEN WH12X10309
347WH01X10277 GE Washer Door Gasket Clamp
349WH01X10279 GE Boot Seal Retaining Ring
360GEN WH02X10221
361WH12X10351 GE Heater Thermistor
365GEN WH01X10427
