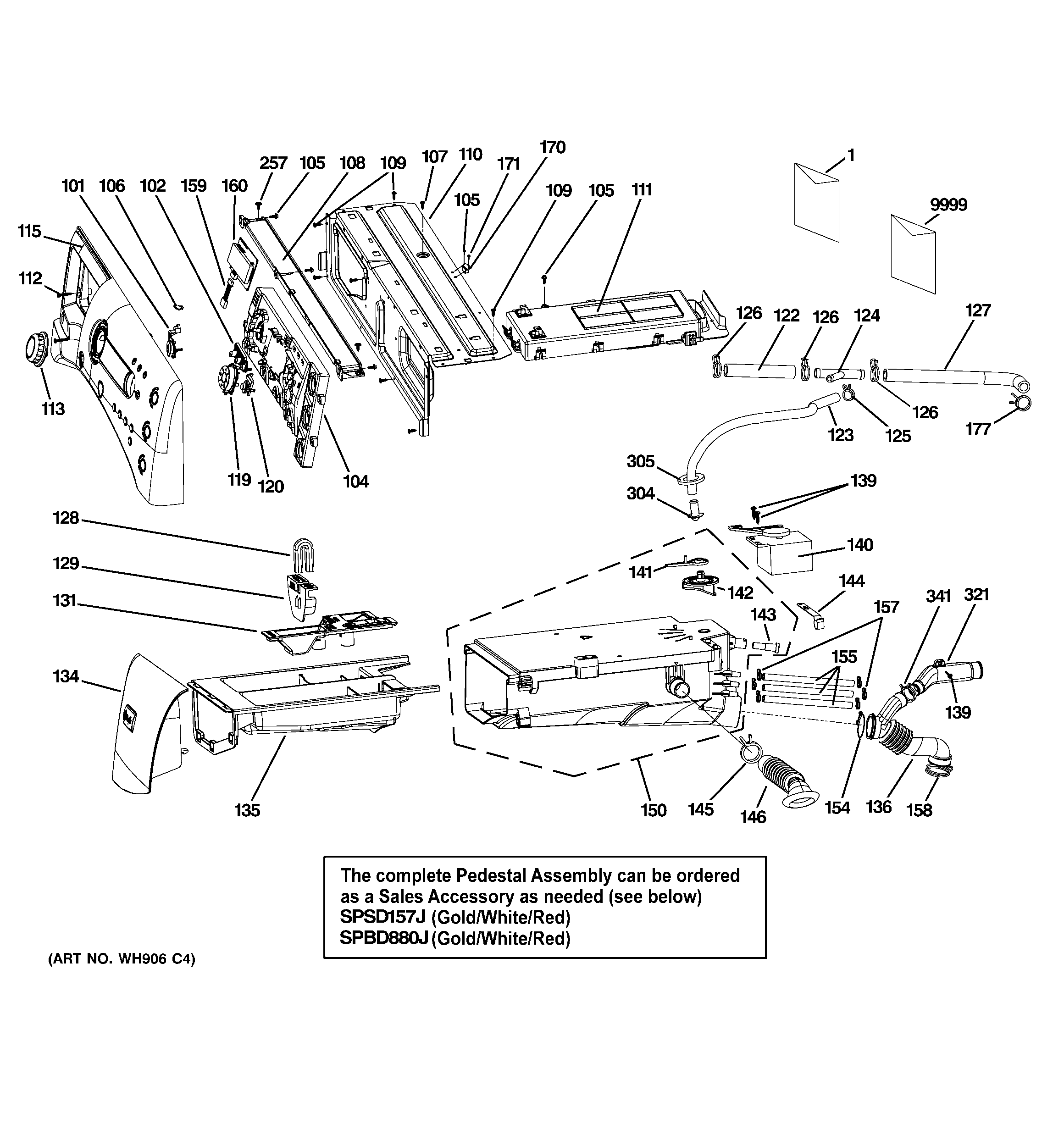

WPDH8910K1MG CONTROLS & DISPENSER

WPDH8910K1MG CONTROLS & DISPENSER

Written by

in

WPDH8910K1MG CONTROLS & DISPENSER

Products

PositionProduct
101GEN WH01X10372
102GEN WH01X10373
102GEN WH01X10401
102GEN WH01X10400
104GEN WH12X10441
105WH02X10181 GE Screw ST3.5 x 11
106GEN WH01X10436
107WH02X10183 GE Screw ST4 13
108GEN WH16X10107
109WH02X10184 GE Screw 4.2 x 13
110GEN WH46X10202
111GEN WH12X10440
112WH02X10185 GE Screw ST4 25
113GEN WH11X10055
115GEN WH42X10791
115GEN WH42X10789
115GEN WH42X10793
119GEN WH01X10419
119GEN WH01X10403
119GEN WH01X10402
120GEN WH01X10420
120GEN WH01X10421
120GEN WH01X10375
122GEN WH41X10108
123GEN WH41X10109
124GEN WH41X10110
125GEN WH01X10243
126WH01X10244 GE Pipe Clamp 3-Way
127GEN WH41X10111
128WH41X10179 GE Siphon Pipe
129WH41X10264 GE Liquid Detergent Insert
131WH41X10181 GE Bleach Softener Cover
134GEN WH41X10184
134GEN WH41X10182
134GEN WH41X10183
135WH41X10185 GE Drawer Dispenser Assembly
136GEN WH41X10186
139GEN WH02X10186
140WH43X10059 GE Washer Dispenser Actuator
141WH01X10247 GE Diverter Indicator
142WH01X10376 GE Washer Lever Plate
143WH41X10121 GE Washer Dispenser Inlet
144WH01X10249 GE Dispenser Clamp
145GEN WH01X10250
146GEN WH41X10122
150GEN WH41X10187
154GEN WH01X10377
155GEN WH41X10205
157GEN WH01X10429
158WH01X10379 GE Washer Water Inlet Hose
159GEN WH19X10056
160GEN WH12X10389
170GEN WH12X10401
171GEN WH16X10114
177WH01X10324 GE Washer Water Inlet Hose
257WH02X10201 GE Screw ST4.2 13
304GEN WH08X10021
305GEN WH02X10206
321GEN WH41X10189
341WH01X10275 GE Pump Clamp
9999WE25X10028 GE Washer Stacking Kit
