WPGT9150H0WW CONTROLS, BACKSPLASH & TOP PANEL – Aparts

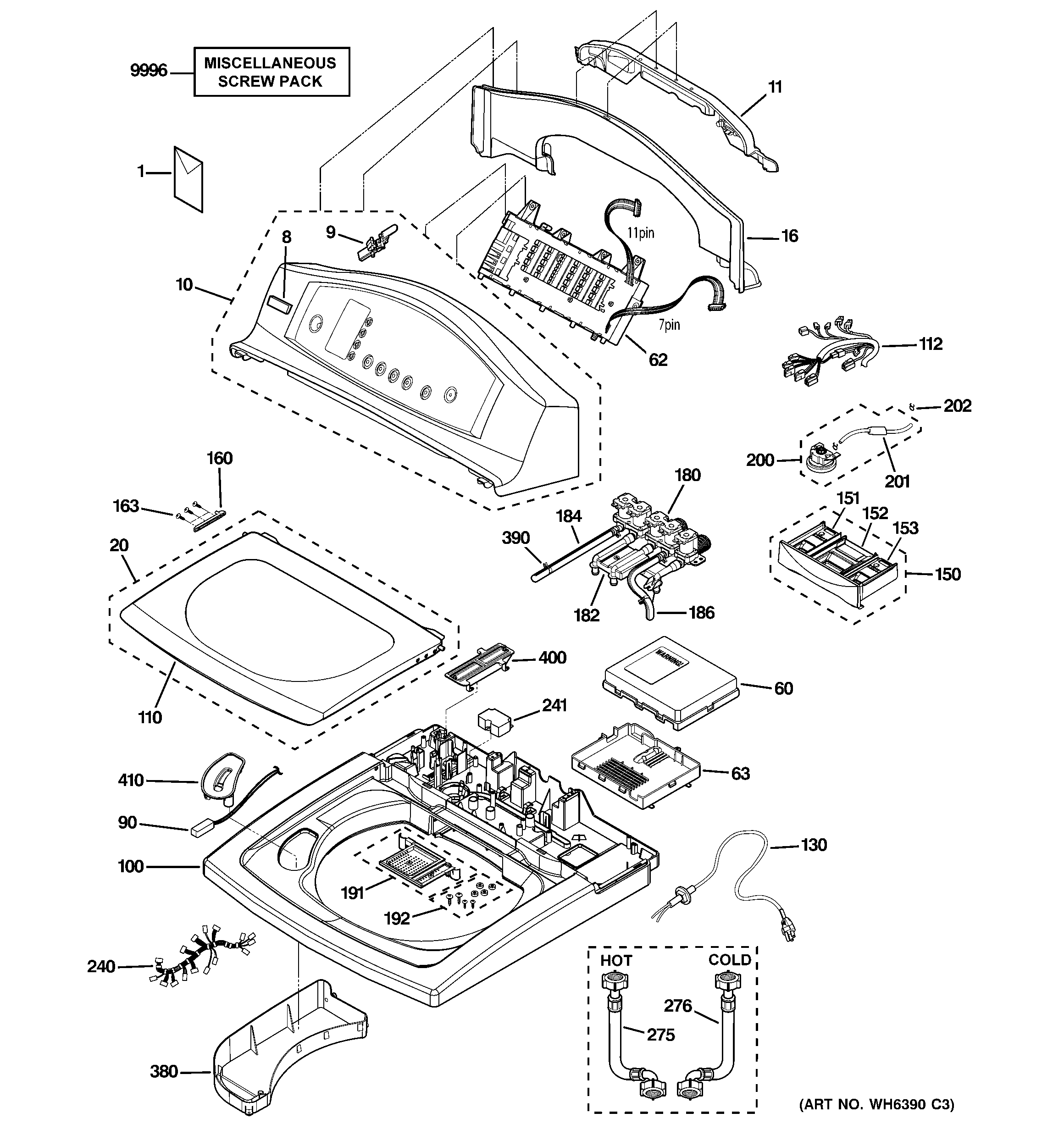

WPGT9150H0WW CONTROLS, BACKSPLASH & TOP PANEL

Products

Position	Product
1	GEN 31-16556
1	GEN 49-90336
8	GEN WH01X10431
9	GEN WH01X10360
10	GEN WH46X10194
10	GEN WH46X10184
11	GEN WH46X10182
11	GEN WH46X10193
16	GEN WH46X10183
16	PANEL BACK GOLD
20	GEN WH44X10195
20	GEN WH44X10165
60	PWB/PCB) ASM - MAIN
62	GEN WH12X10373
63	GEN WH46X10099
90	GEN WH12X10244
100	GEN WH44X10118
100	GEN WH44X10194
110	GEN WH01X10206
112	GEN WH19X10055
130	GEN WH19X10028
150	GEN WH47X10011
151	GEN WH47X10005
152	GEN WH47X10006
153	WH47X10016 GE Right Cap Insert
160	GEN WH01X10207
163	WE02X10060 GE Screw
180	WH13X10017 GE Inlet Valve Assembly
182	GEN WH41X10084
184	GEN WH41X10085
186	GEN WH41X10100
191	GEN WH47X10012
191	GEN WH47X10014
192	GEN WH02X10264
200	GEN WH12X10247
201	GEN WH41X10087
202	RING, SNAP
240	GEN WH19X10029
241	GEN WH12X10248
275	GEN WH41X10169
276	GEN WH41X10170
380	GEN WH47X10007
390	CLAMP
400	GEN WH12X10250
410	GEN WH01X10213
9996	GEN WH02X10158
