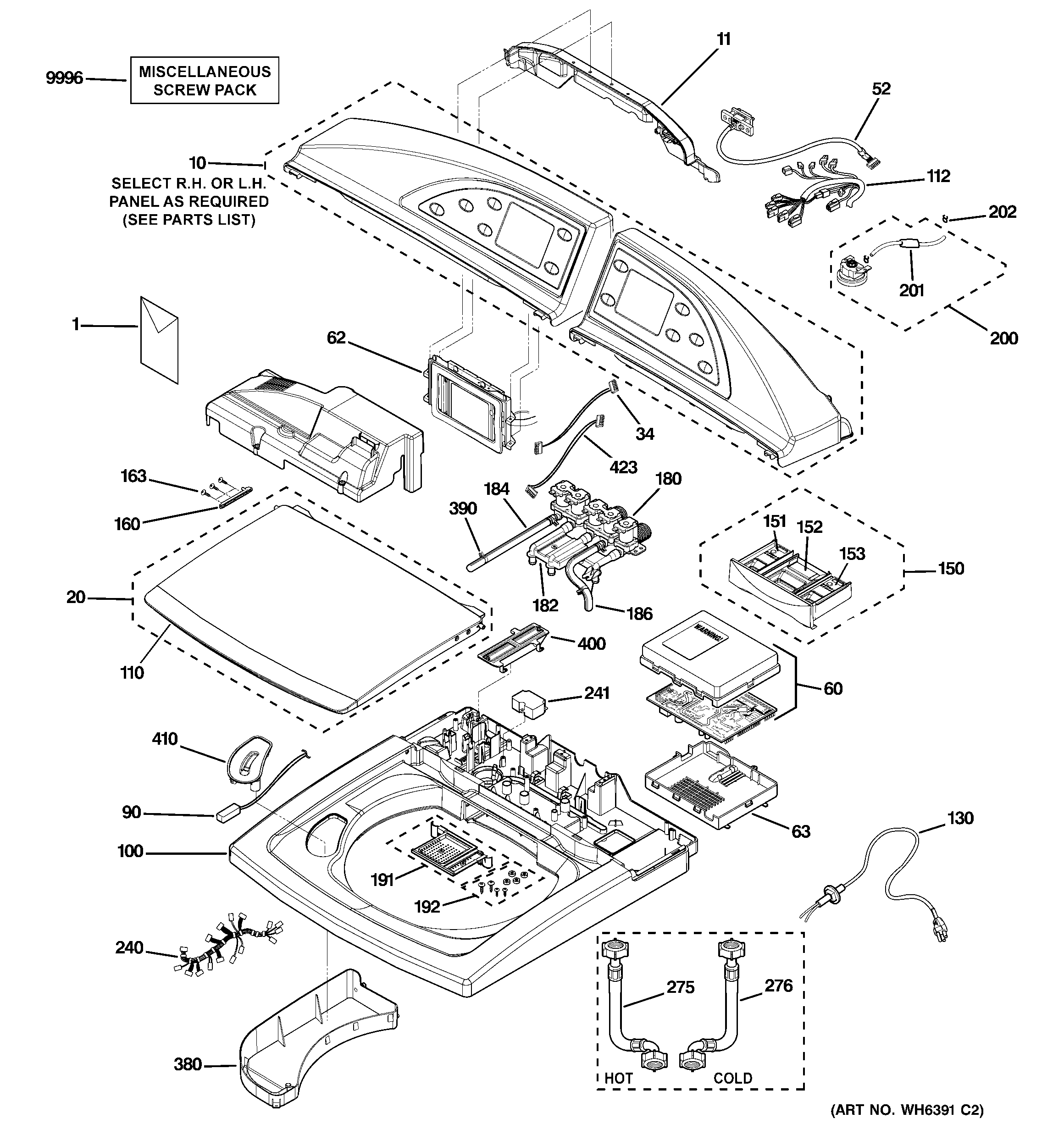

WPGT9350C0PL CONTROLS, BACKSPLASH & TOP PANEL

WPGT9350C0PL CONTROLS, BACKSPLASH & TOP PANEL

Written by

in

WPGT9350C0PL CONTROLS, BACKSPLASH & TOP PANEL

Products

PositionProduct
1GEN 49-90151
1GEN 31-15543
10GEN WE19X10072
10PANEL ASM, FRONT WH-LH
10PANEL ASM, FRONT PL-LH
10GEN WE19X10071
11GEN WH46X10097
20GEN WH44X10116
20GEN WH44X10120
34GEN WH19X10031
52INTERNAL COMM CABLE
60GEN WH12X10245
62GEN WH12X10246
63GEN WH46X10099
90GEN WH12X10244
100GEN WH44X10121
100GEN WH44X10118
110GEN WH01X10206
112HARNESS, PWB
130GEN WH19X10028
150GEN WH47X10004
151GEN WH47X10005
152GEN WH47X10006
153WH47X10016 GE Right Cap Insert
160GEN WH01X10207
163WE02X10060 GE Screw
180WH13X10017 GE Inlet Valve Assembly
182GEN WH41X10084
184GEN WH41X10085
186GEN WH41X10086
191GEN WH47X10013
191GEN WH47X10014
192GEN WH02X10264
200GEN WH12X10247
201GEN WH41X10087
202RING, SNAP
240GEN WH19X10029
241GEN WH12X10248
275GEN WH41X10088
276GEN WH41X10089
380GEN WH47X10007
390CLAMP
400GEN WH12X10250
410GEN WH01X10213
423GEN WH19X10030
9996GEN WH02X10158
