WPGT9350C0WW CONTROLS, BACKSPLASH & TOP PANEL – Aparts

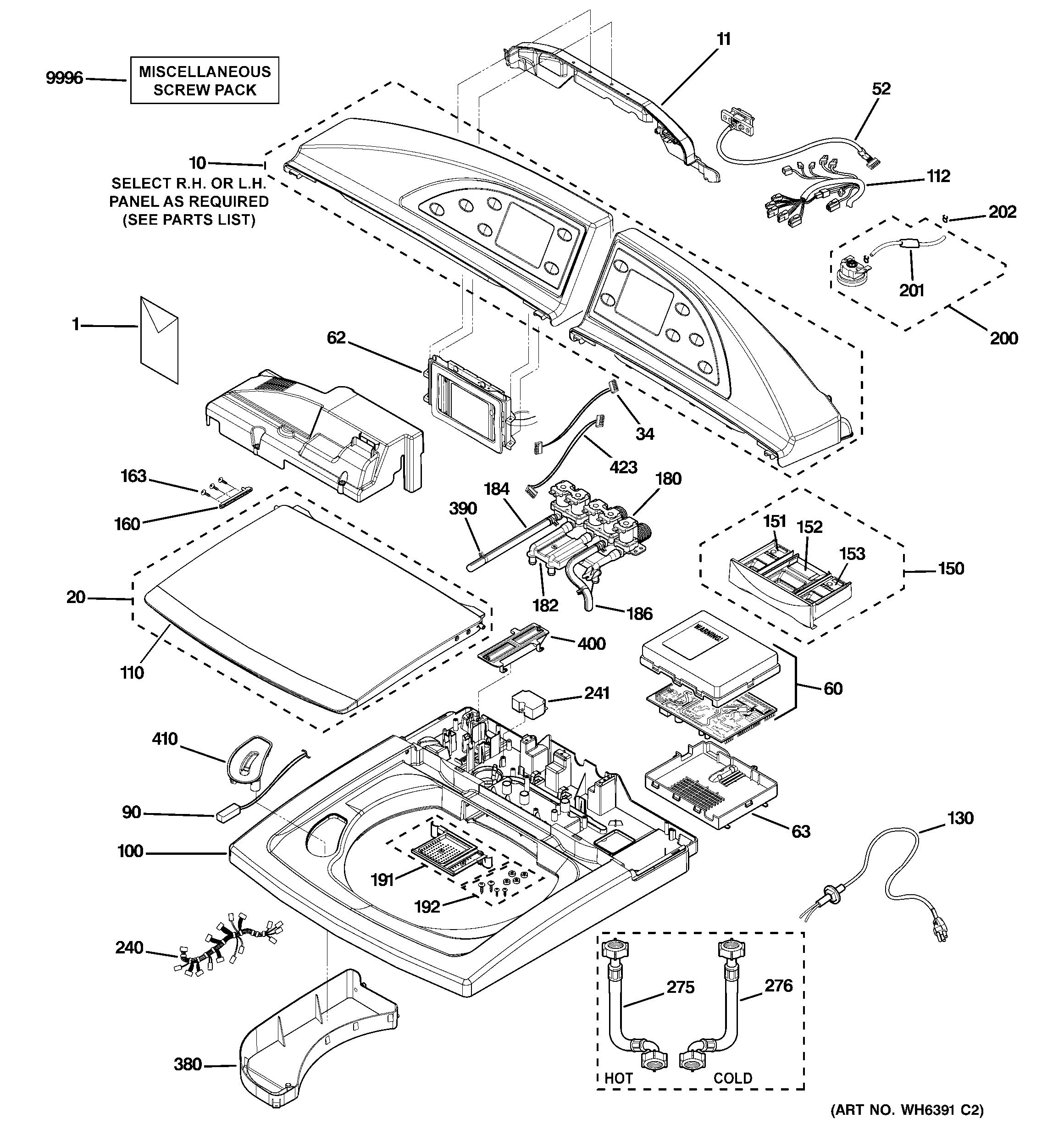

WPGT9350C0WW CONTROLS, BACKSPLASH & TOP PANEL

Products

Position	Product
1	GEN 49-90151
1	GEN 31-15543
10	GEN WE19X10072
10	PANEL ASM, FRONT WH-LH
10	PANEL ASM, FRONT PL-LH
10	GEN WE19X10071
11	GEN WH46X10097
20	GEN WH44X10116
20	GEN WH44X10120
34	GEN WH19X10031
52	INTERNAL COMM CABLE
60	GEN WH12X10245
62	GEN WH12X10246
63	GEN WH46X10099
90	GEN WH12X10244
100	GEN WH44X10121
100	GEN WH44X10118
110	GEN WH01X10206
112	HARNESS, PWB
130	GEN WH19X10028
150	GEN WH47X10004
151	GEN WH47X10005
152	GEN WH47X10006
153	WH47X10016 GE Right Cap Insert
160	GEN WH01X10207
163	WE02X10060 GE Screw
180	WH13X10017 GE Inlet Valve Assembly
182	GEN WH41X10084
184	GEN WH41X10085
186	GEN WH41X10086
191	GEN WH47X10013
191	GEN WH47X10014
192	GEN WH02X10264
200	GEN WH12X10247
201	GEN WH41X10087
202	RING, SNAP
240	GEN WH19X10029
241	GEN WH12X10248
275	GEN WH41X10088
276	GEN WH41X10089
380	GEN WH47X10007
390	CLAMP
400	GEN WH12X10250
410	GEN WH01X10213
423	GEN WH19X10030
9996	GEN WH02X10158
