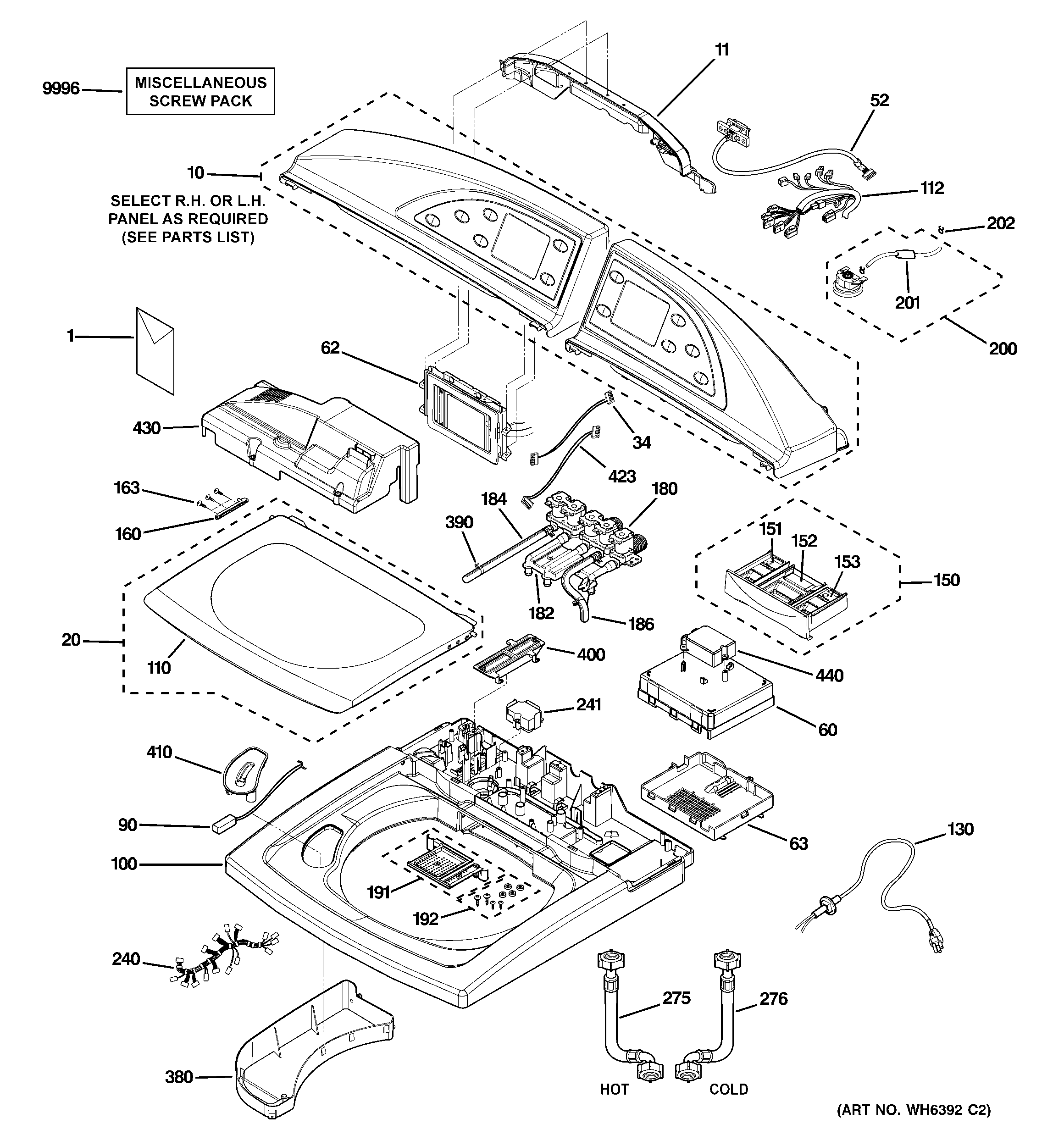

WPGT9360C0PL CONTROLS, BACKSPLASH & TOP PANEL

WPGT9360C0PL CONTROLS, BACKSPLASH & TOP PANEL

Written by

in

WPGT9360C0PL CONTROLS, BACKSPLASH & TOP PANEL

Products

PositionProduct
1GEN 14-X025
1GEN 31-15567
1GEN 49-90221
10GEN WE19X10072
10GEN WE19X10071
10PANEL ASM, FRONT WH-LH
10PANEL ASM, FRONT PL-LH
11GEN WH46X10119
11GEN WH46X10097
20GEN WH44X10167
20GEN WH44X10165
34GEN WE08X10058
52INTERNAL COMM CABLE
60PWB/PCB) ASM – MAIN
62GEN WH12X10282
63GEN WH46X10099
90GEN WH12X10244
100GEN WH44X10118
100GEN WH44X10121
110GEN WH01X10206
112GEN WH19X10041
130GEN WH19X10042
150GEN WH47X10004
151GEN WH47X10005
152GEN WH47X10006
153WH47X10016 GE Right Cap Insert
160GEN WH01X10224
160GEN WH01X10223
163WE02X10060 GE Screw
180WH13X10017 GE Inlet Valve Assembly
182GEN WH41X10084
184GEN WH41X10085
186GEN WH41X10100
191GEN WH47X10014
191GEN WH47X10013
192GEN WH02X10264
200GEN WH12X10247
201GEN WH41X10087
202RING, SNAP
240GEN WH19X10043
241GEN WH12X10283
275GEN WH41X10088
276GEN WH41X10089
380GEN WH47X10007
390CLAMP
400GEN WH12X10250
410GEN WH01X10213
423GEN WH19X10030
430GEN WH44X10166
440GEN WH12X10286
9996GEN WH02X10158
