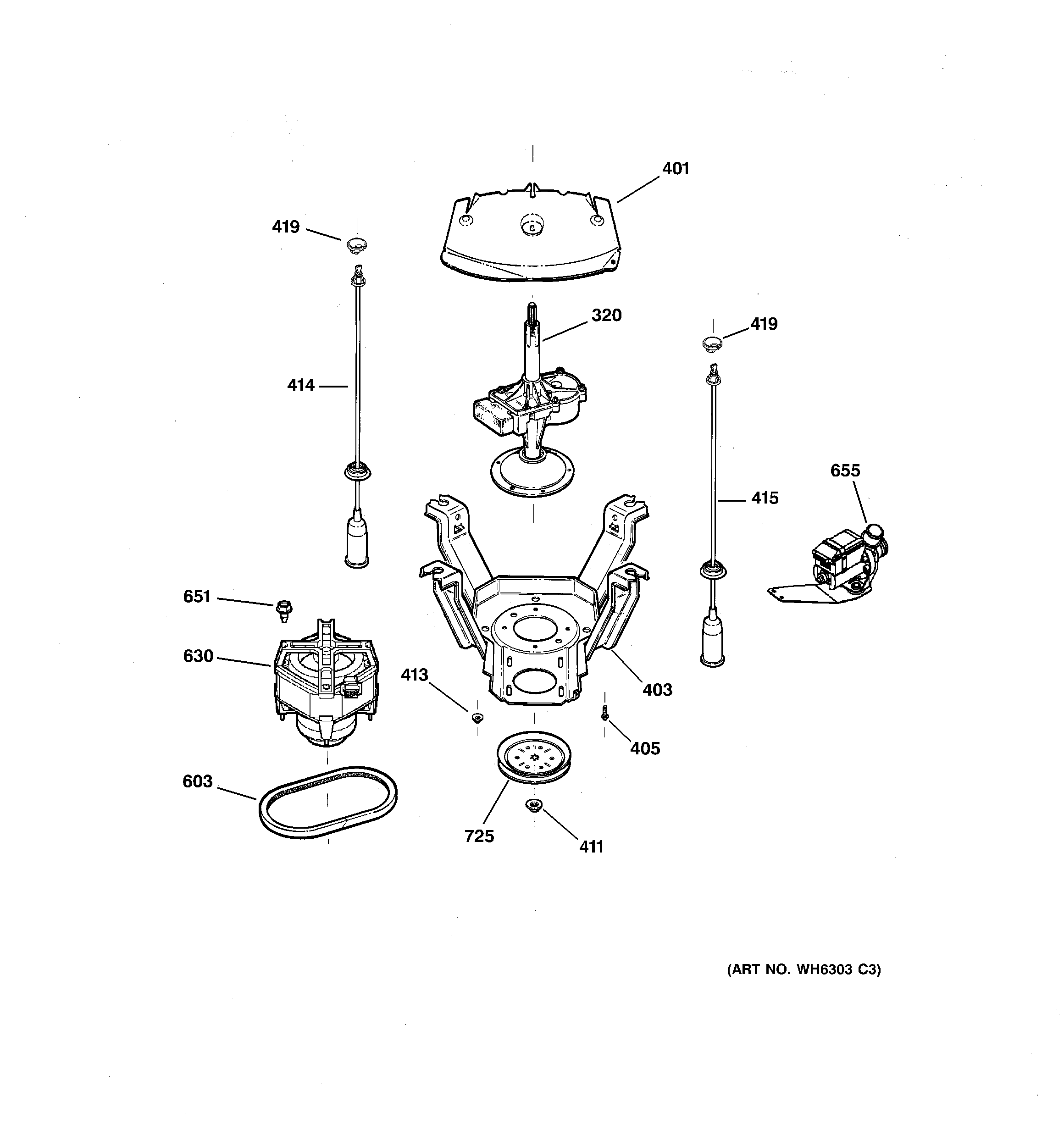

WPRB8050D1WW SUSPENSION, PUMP & DRIVE COMPONENTS

WPRB8050D1WW SUSPENSION, PUMP & DRIVE COMPONENTS

Written by

in

WPRB8050D1WW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

PositionProduct
320GEN WH38X10002
401WH45X10046 GE Tub Shield
403GEN WH17X10003
405WH2X1201 GE 1/4-20 Screw
411WH2X1203 GE Pulley Nut
413GEN WH02X1204
414WH16X10057 GE Washer Rod & Spring Assembly Green
415WH16X543 GE Dryer Suspension Rod and Spring Yellow
419WH01X10001 GE Washer Support Socket Tub Suspension Rod
603WH1X2026 GE Washer Drive Belt
630WH20X10019 GE Motor 2-Speed Clutchless
651WH02X10123 GE Screw 1/4-20 TPT
655WH23X10030 GE Washer Drain Pump
725GEN WH07X0126
