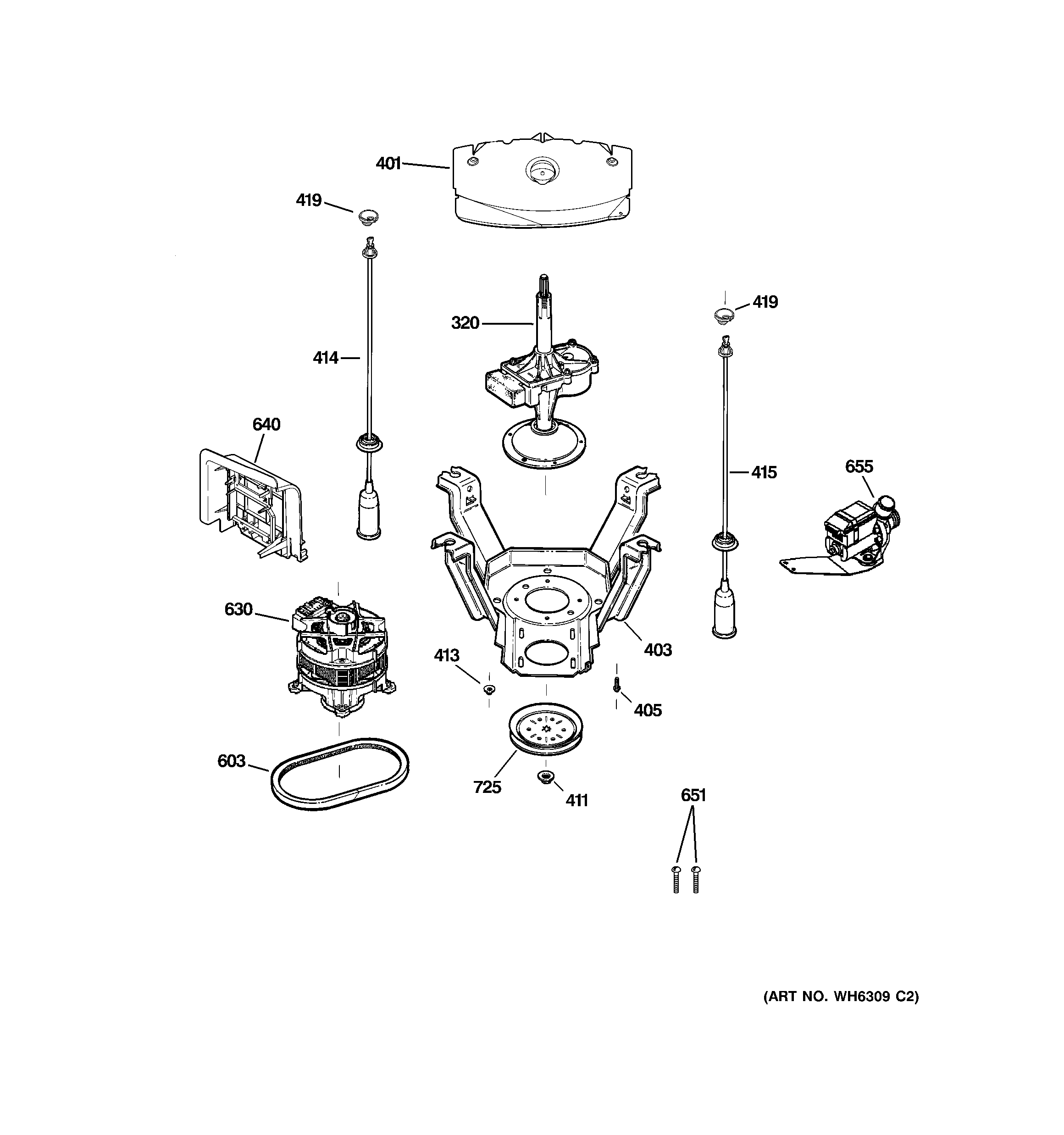

WPRB9110D1WW SUSPENSION, PUMP & DRIVE COMPONENTS

WPRB9110D1WW SUSPENSION, PUMP & DRIVE COMPONENTS

Written by

in

WPRB9110D1WW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

PositionProduct
320GEN WH38X10002
401WH45X10046 GE Tub Shield
403GEN WH17X10003
405WH2X1201 GE 1/4-20 Screw
411WH2X1203 GE Pulley Nut
413GEN WH02X1204
414WH16X10057 GE Washer Rod & Spring Assembly Green
415WH16X543 GE Dryer Suspension Rod and Spring Yellow
419WH01X10001 GE Washer Support Socket Tub Suspension Rod
603WH1X2026 GE Washer Drive Belt
630GEN WH20X10017
640GEN WH12X10191
651WH02X10123 GE Screw 1/4-20 TPT
655WH23X10030 GE Washer Drain Pump
725GEN WH07X0126
