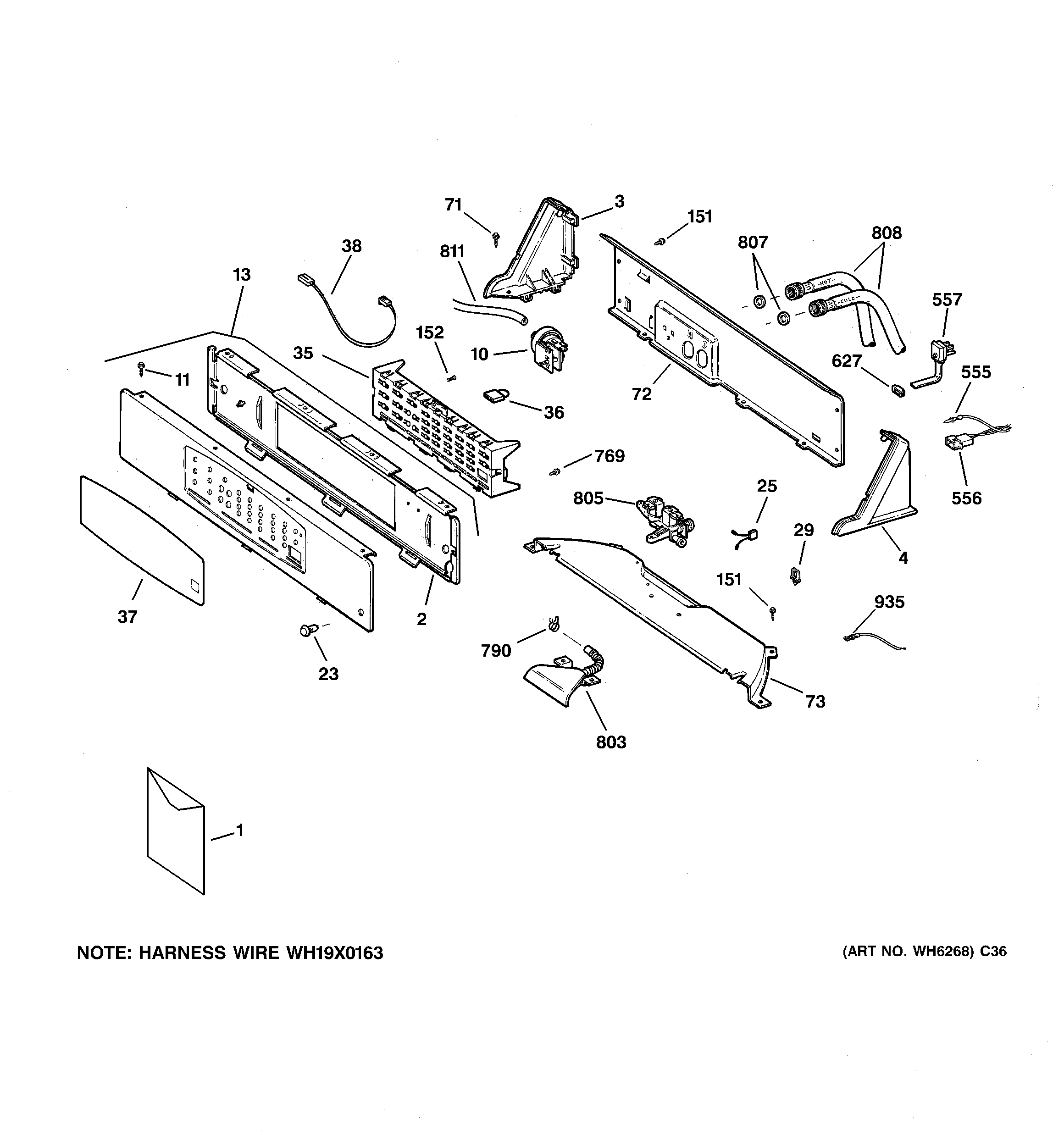

WPSE7001A0WW CONTROLS & BACKSPLASH

WPSE7001A0WW CONTROLS & BACKSPLASH

Written by

in

WPSE7001A0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15492
1INSTRUCTION INSTALL
1GEN 31-15441
1GEN 49-90047
1GEN 31-15435
2GEN WH46X10055
3GEN WH42X2397
3END CAP LH AD
4END CAP RH AD
4GEN WH42X2398
10GEN WH12X10139
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10258
13GEN WH42X10256
23GEN WH12X10088
23GEN WH12X10087
25GEN WH12X10137
29GEN WH02X10054
35GEN WH12X10178
35GEN WH12X10138
36GEN WH12X10109
37GEN WH42X10257
37GEN WH42X10259
38GEN WH19X10017
71WH2X1205 GE Screw 8-18
72GEN WH46X10083
72GEN WH46X10035
73GEN WH46X10047
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
152WH02X10090 GE Screw 8-18 B HXW 5/16 S
555GEN WB17X5053
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10025
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805GEN WH13X10010
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
