WPSL3120W2WW CONTROLS & BACKSPLASH

WPSL3120W2WW CONTROLS & BACKSPLASH

Written by

in

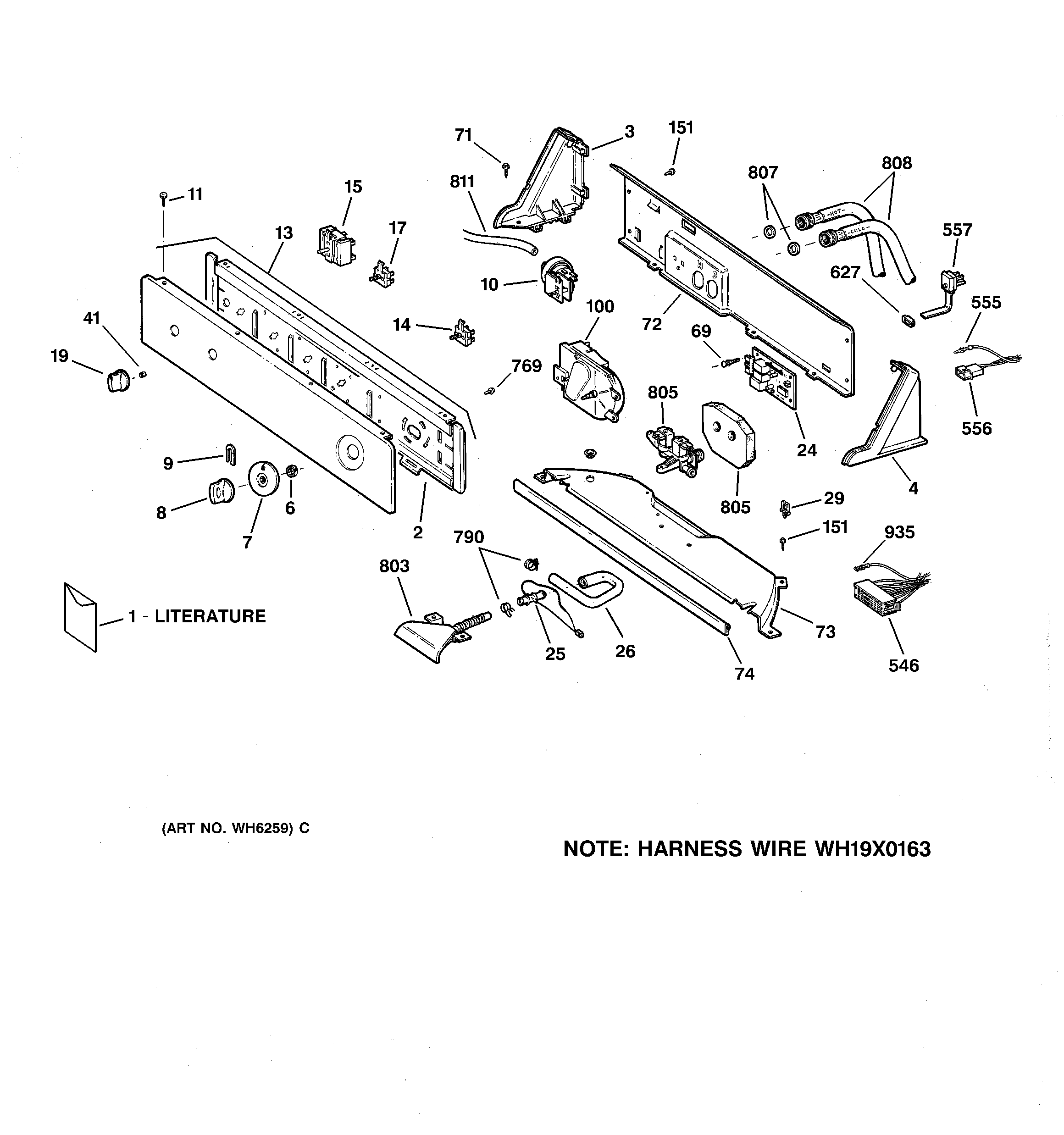

WPSL3120W2WW CONTROLS & BACKSPLASH

Products

PositionProduct
1INSTRUCTION INSTALL
1GEN 49-90002
1GEN 31-15373
2GEN WH46X10031
3GEN WH42X2397
4GEN WH42X2398
6GEN WH02X0650
7WH11X10033 GE Washer Control Timer Dial
8WH01X10310 GE Washer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10076 GE Washer Water Pressure Switch
11GEN WH02X1206
13GEN WH42X10133
14GEN WH12X1007
15GEN WH12X10053
17GEN WH12X1019
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
24GEN WH12X10052
25GEN WH12X10044
26GEN WH41X10018
29GEN WH02X10054
41GEN WE01X0980?
69GEN WH02X10036
71WH2X1205 GE Screw 8-18
72GEN WH46X10035
73GEN WH46X10040
74GEN WH08X0379
100GEN WH12X10077
546GEN WH12X0870
555GEN WB17X5053
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10025
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
