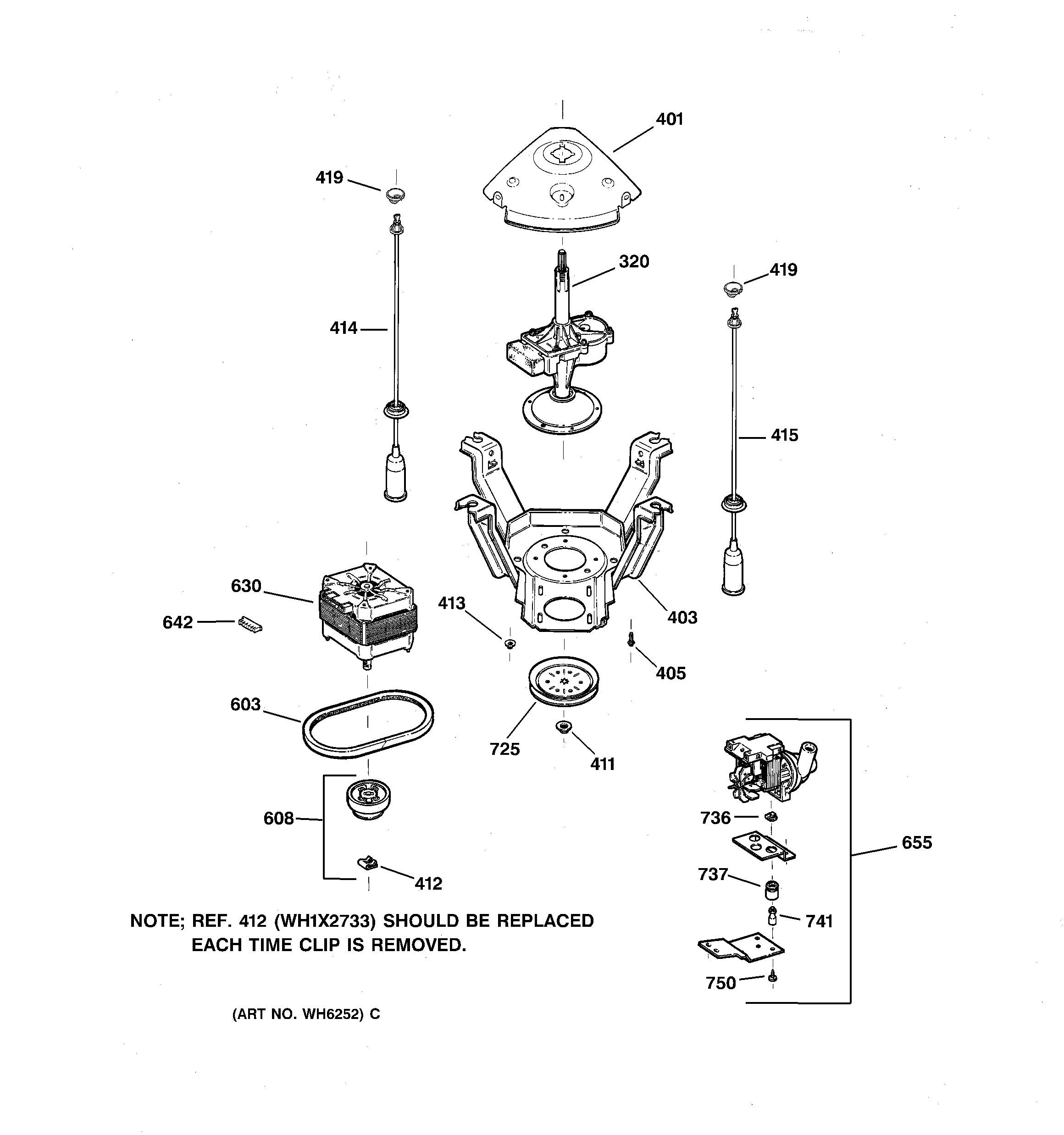

WPSR3090V0WW SUSPENSION, PUMP & DRIVE COMPONENTS

WPSR3090V0WW SUSPENSION, PUMP & DRIVE COMPONENTS

Written by

in

WPSR3090V0WW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

PositionProduct
320GEN WH38X10001
401WH45X10046 GE Tub Shield
403GEN WH17X0101
405WH2X1201 GE 1/4-20 Screw
411WH2X1203 GE Pulley Nut
412GEN WH01X2733
413GEN WH02X1204
414ROD/SPRING BLK
415WH16X543 GE Dryer Suspension Rod and Spring Yellow
419WH01X10001 GE Washer Support Socket Tub Suspension Rod
603WH1X2026 GE Washer Drive Belt
608GEN WH05X0253
642GEN WH12X1059
655WH23X10030 GE Washer Drain Pump
725GEN WH07X0126
736GEN WR02X8203
737GEN WR02X7238
750WR1X1786 GE Refrigerator Screw
