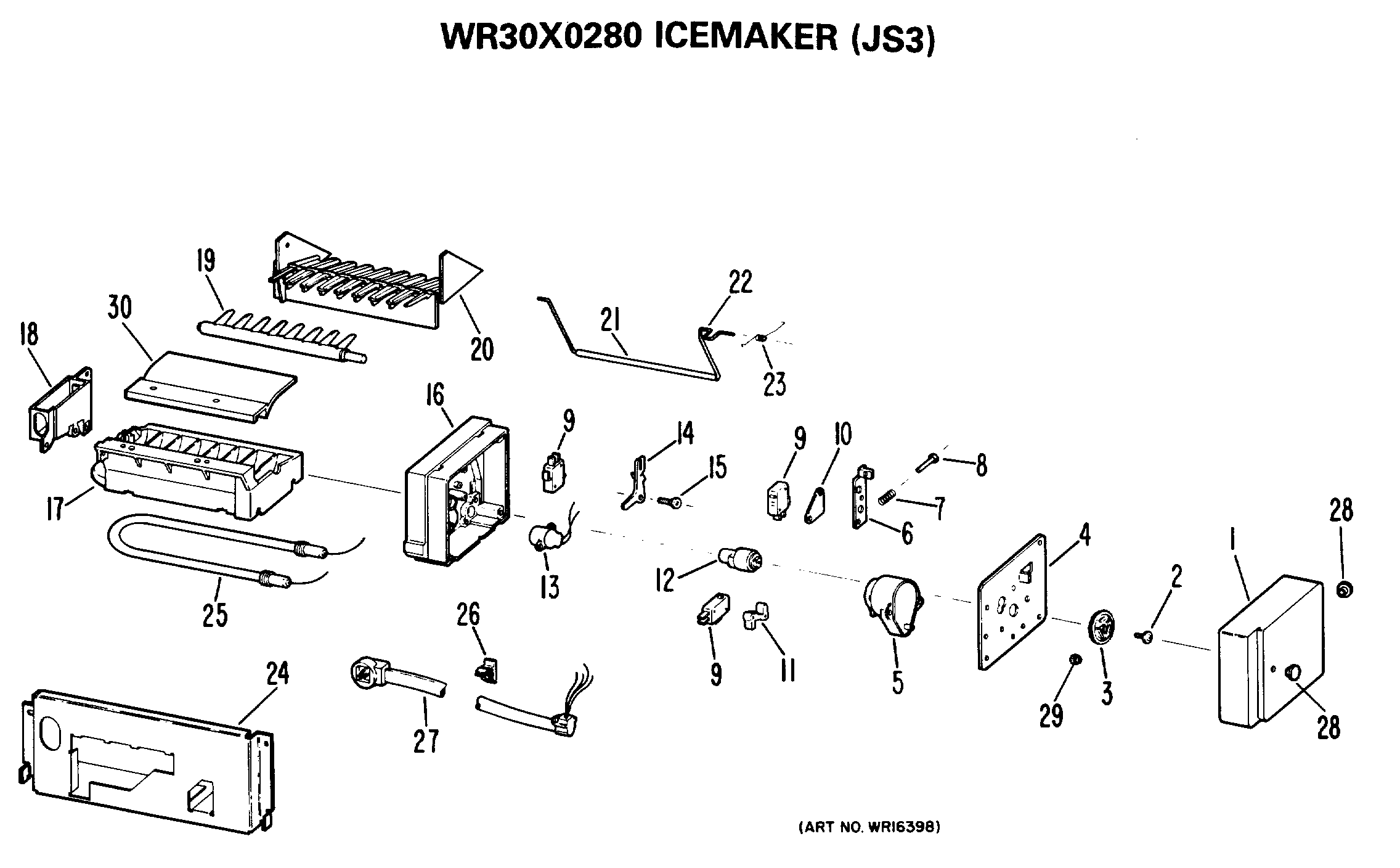

| 1 | GEN WR29X5145 |
| 2 | SCREW |
| 3 | WR30X10093 GE Refrigerator Ice Maker |
| 4 | PLATE MOUNTING |
| 4 | SCREW-PLATE TO SUPPORT |
| 5 | MOTOR |
| 5 | SCREW-MOTOR TO PLATE |
| 6 | SCREW ARM TO SWITCH |
| 8 | SCREW |
| 9 | WR29X5171 |
| 10 | INSULATOR |
| 11 | GEN WR29X5118 |
| 13 | GEN WR29X5147 |
| 13 | SCREW THERMO |
| 15 | SCREW-ARM |
| 16 | WR29X0189 |
| 17 | 203C2696G002 |
| 17 | SCREW MOLD |
| 18 | GEN WR29X5148 |
| 20 | GEN WR29X5138 |
| 20 | GEN WR29X5149 |
| 21 | SLEEVE VINYL |
| 22 | GEN WR29X5150 |
| 24 | GEN WR29X5159 |
| 24 | GEN WR29X5141 |
| 25 | BR00151-1 |
| 26 | BE03725-1 |
| 27 | WR29X0192 |
| 28 | GEN WR02X3248 |
| 29 | GEN WR29X5153 |
| 30 | WR97X163 GE Refrigerator Silicone |
| 30 | GEN WR29X5160 |
