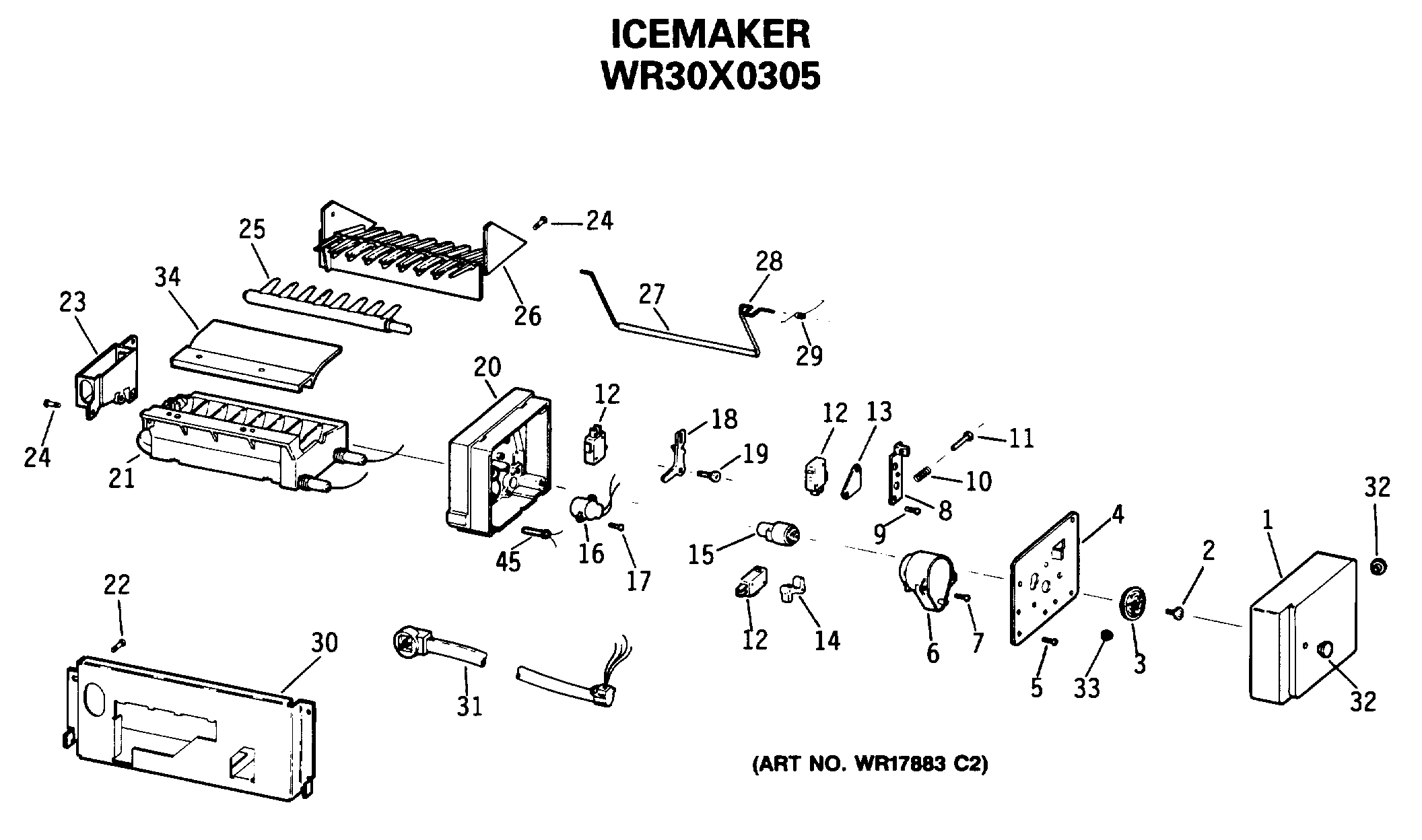

| 1 | GEN WR29X0193 |
| 2 | SCREW |
| 4 | PLATE MOUNTING |
| 5 | SCREW-PLATE TO SUPPORT |
| 6 | MOTOR |
| 7 | SCREW-MOTOR TO PLATE |
| 9 | SCREW ARM TO SWITCH |
| 11 | SCREW |
| 12 | SWITCH |
| 13 | INSULATOR |
| 14 | GEN WR29X5118 |
| 16 | GEN WR29X5168 |
| 17 | SCREW THERMO |
| 18 | GEN WR29X5183 |
| 19 | SCREW-ARM |
| 20 | GEN WR29X0189 |
| 21 | GEN WR29X0194 |
| 22 | GEN WR29X5141 |
| 23 | GEN WR29X5148 |
| 24 | GEN WR29X5138 |
| 25 | GEN WR29X5174 |
| 26 | GEN WR29X5149 |
| 27 | GEN WR29X0195 |
| 28 | GEN WR29X5150 |
| 30 | GEN WR29X5159 |
| 31 | GEN WR29X0192 |
| 32 | GEN WR02X8483 |
| 33 | GEN WR29X5153 |
| 34 | GEN WR29X5160 |
| 45 | WR30X10093 GE Refrigerator Ice Maker |
