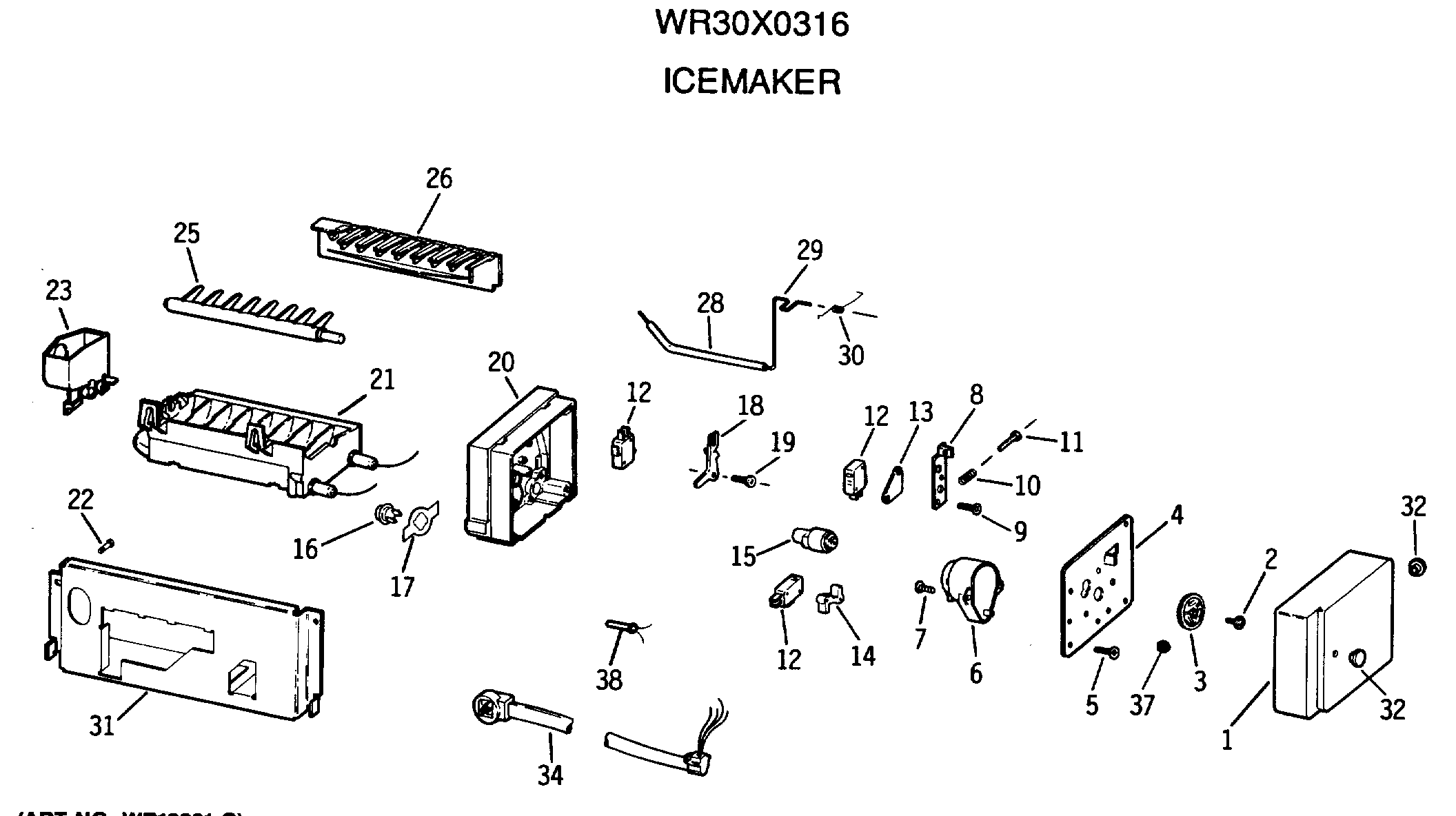

| 1 | COVER-WHITE |
| 2 | SCREW |
| 4 | PLATE-MTG |
| 5 | SCREW-PLATE TO SUPPORT |
| 6 | MOTOR |
| 7 | SCREW-MOTOR TO PLATE |
| 9 | SCREW ARM TO SWITCH |
| 11 | SCREW |
| 12 | SWITCH |
| 13 | GEN WR29X5188 |
| 14 | GEN WR29X5186 |
| 15 | GEN WR29X5167 |
| 16 | WR30X10093 GE Refrigerator Ice Maker |
| 18 | GEN WR29X5183 |
| 19 | SCREW-ARM |
| 21 | MOLD & HEATER ASM |
| 22 | SCREW MOLD |
| 23 | GEN WR29X0208 |
| 25 | GEN WR29X5174 |
| 26 | GEN WR29X0206 |
| 28 | GEN WR29X5178 |
| 29 | GEN WR29X0205 |
| 31 | GEN WR29X0207 |
| 32 | GEN WR02X8483 |
| 34 | GEN WR29X0186 |
| 37 | GEN WR29X5153 |
