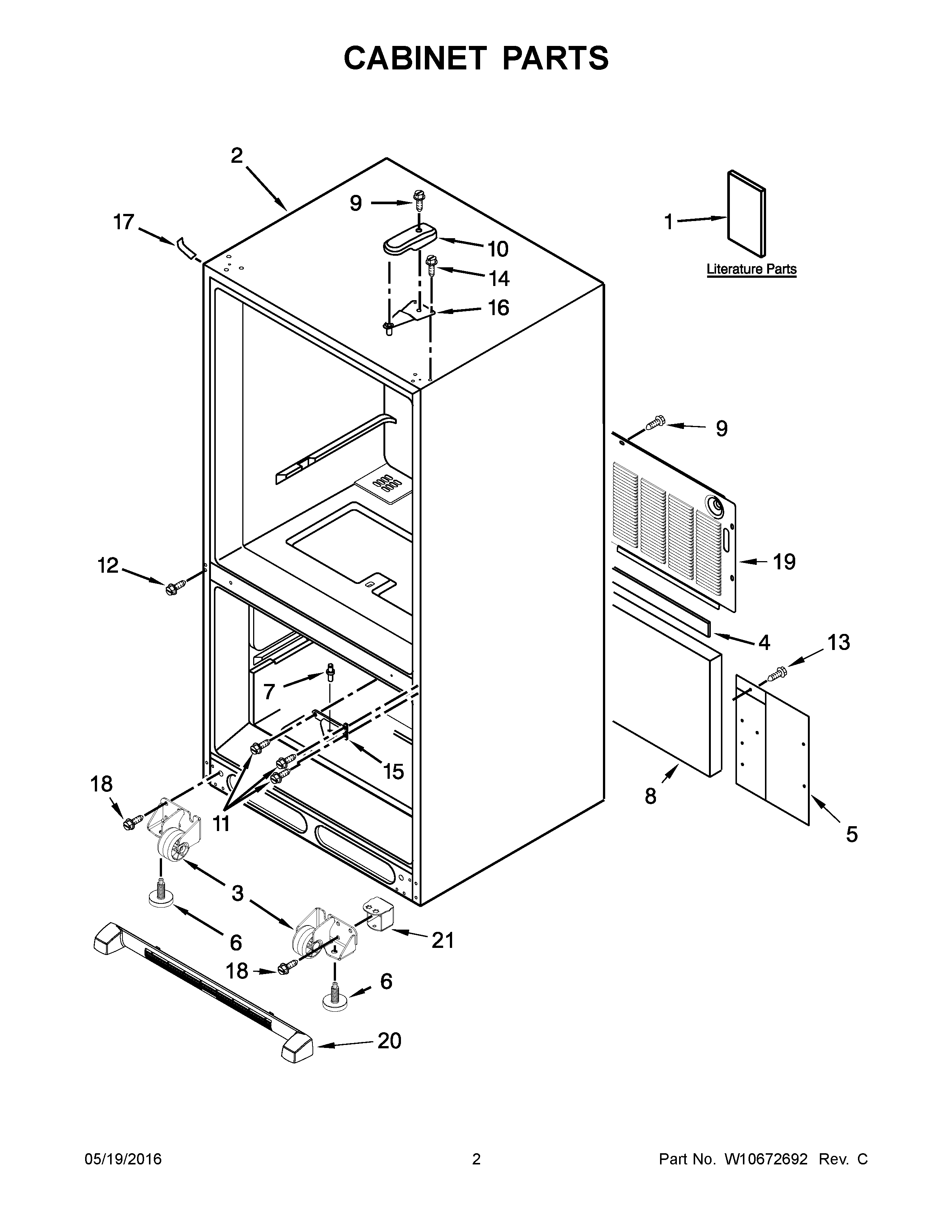

WRB119WFBM00 02 – CABINET PARTS

WRB119WFBM00 02 – CABINET PARTS

Written by

in

WRB119WFBM00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3AWPW10515762 Whirlpool Refrigerator Cabinet Roller
3WPW10515763 Whirlpool Refrigerator Cabinet Roller
4B5759655 Whirlpool Refrigerator Gasket
5W11684617 Whirlpool Valve Cover
6WPW10141622 Whirlpool Leveler
7WP67006744 Whirlpool Refrigerator Center Pin
8INSULATION, SOUND
9WP8281196 Whirlpool Screw
10A67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
10BW11106366 Whirlpool Refrigerator Door Hinge
1067001014 Whirlpool Refrigerator Top Hinge Cover White
11WP489349 Whirlpool Refrigerator Screw
12WP98165 Whirlpool Screw
1367006425 Whirlpool Refrigerator Screw
15B12607103AP Whirlpool Refrigerator Door Hinge
15AWP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
17BWP12587703AP Whirlpool Refrigerator Filler
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
1867006564 Whirlpool Refrigerator Screw
19W10210978 Whirlpool Refrigerator Back Cover
20BWPW10534165 Whirlpool Refrigerator Front Grille
20AWPW10534167 Whirlpool Refrigerator Front Grille
20WPW10534166 Whirlpool Refrigerator Front Grille
21BW10617441 Whirlpool Door Hinge
21AW10490812 Whirlpool Refrigerator Door Hinge
21W10490811 Whirlpool Refrigerator Door Hinge
