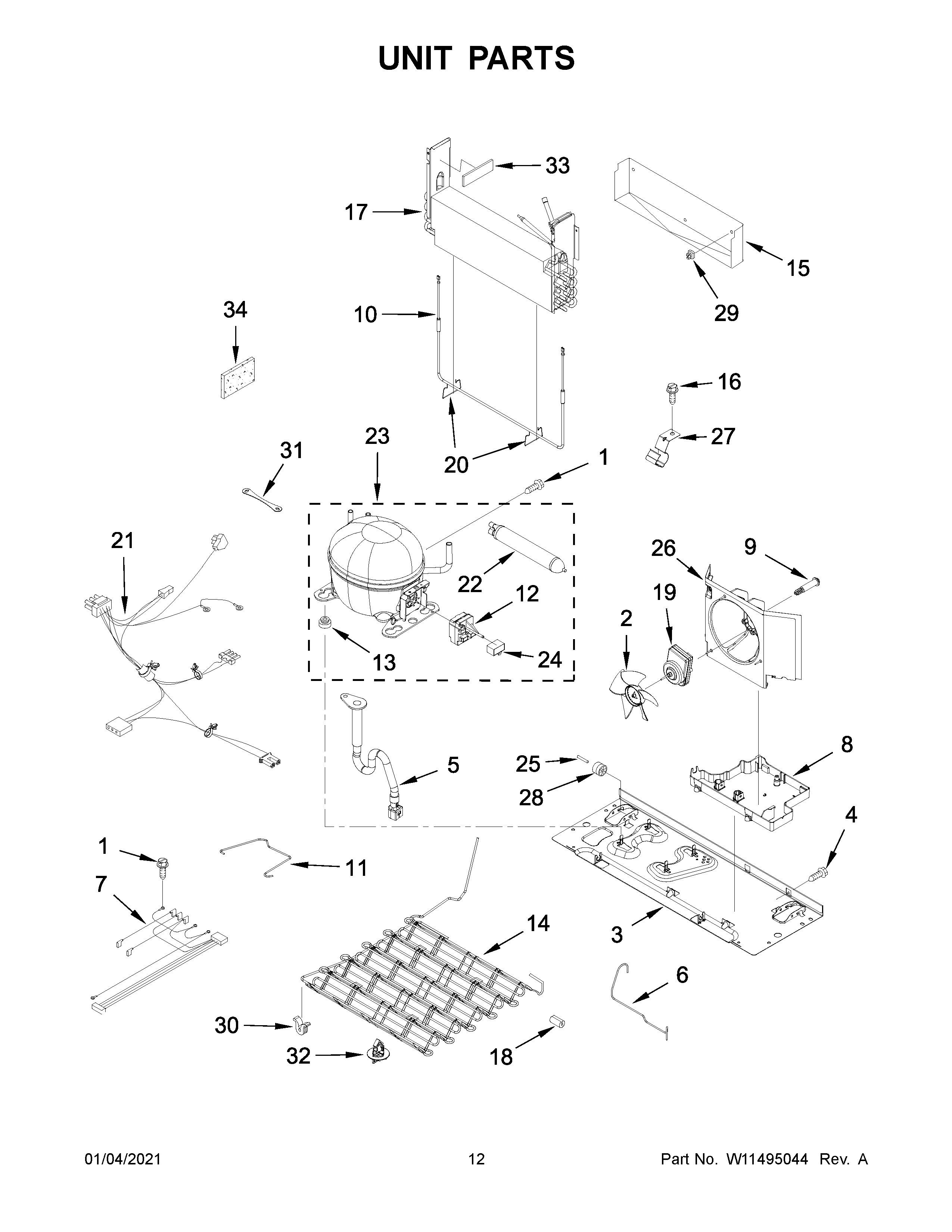

WRB119WFBM02 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10619951 Whirlpool Drain Tube with Grommet
6	TUBE, DISCHARGE
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729127 Whirlpool Refrigerator Heater
11	W11092534 Whirlpool Refrigerator Clip
12	W10873801 Whirlpool Start Device
13	WPW10169124 Whirlpool Refrigerator Grommet
14	CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
15	TRAY, DRIP
16	WP33001882 Whirlpool Screw
17	W10920993 Whirlpool Refrigerator Evaporator
18	W10852725 Whirlpool Refrigerator Grommet
19	W11613295 Whirlpool Condenser Motor
20	W11673433 Whirlpool Clip
21	W11218258 Whirlpool Refrigerator Wire Harness
22	WPW10143759 Whirlpool Dryer Filter
23	W10233960 Whirlpool Refrigerator Compressor
24	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
25	67006434 Whirlpool Axle Pin
26	W11556315 Whirlpool Shroud
27	W10281329 Whirlpool Clamp
28	WP67005149 Whirlpool Roller
29	CLIP, EVAP (2)
30	WPW10137529 Whirlpool Refrigerator Grommet
31	W10236396 Whirlpool Refrigerator Strap
32	W10815863 Whirlpool Clip
33	W11451451 Whirlpool Refrigerator Gasket
34	W11553819 Whirlpool Refrigerator Insulation
