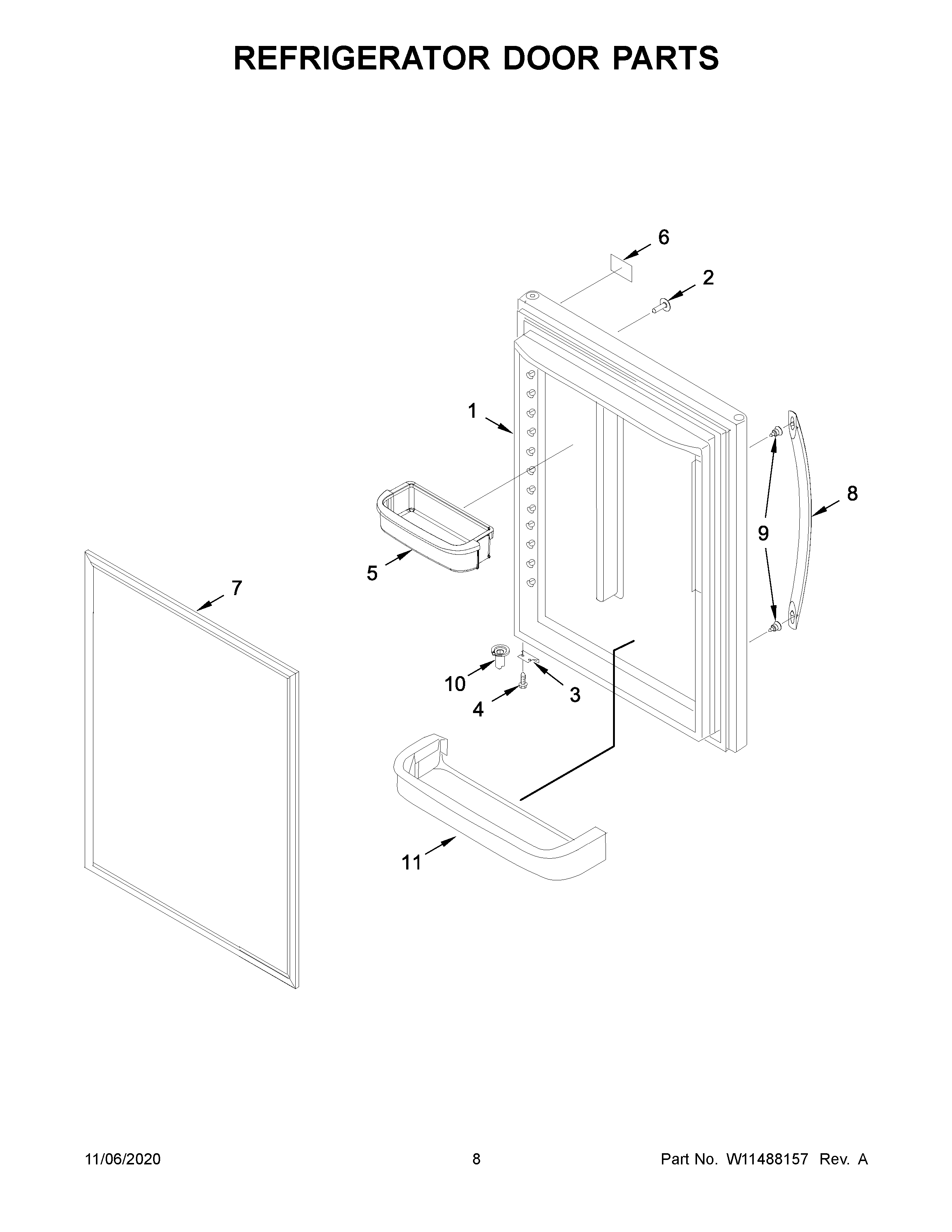

WRB322DMBB02 05 – REFRIGERATOR DOOR PARTS

WRB322DMBB02 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRB322DMBB02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1B13107554SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
1A13109401BQ Whirlpool Refrigerator DOR Foam In Place Black
113109401WQ Whirlpool Refrigerator FIP Door WH
2BWP12246610 Whirlpool Refrigerator Handle Plug
2WP67001130 Whirlpool Refrigerator White Button Plug
2AWP12246608 Whirlpool Refrigerator Button
312968202W Whirlpool Refrigerator Door Stop
3AW11708403 Whirlpool Door Stop
3BW11401472 Whirlpool Refrigerator Door Stop
4WP67006908 Whirlpool Refrigerator Screw
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11223753 Whirlpool Refrigerator Nameplate
7BW10443314 Whirlpool Refrigerator FIP Gasket
7W10443313 Whirlpool Door Gasket
7AWPW10436248 Whirlpool Door Gasket
8BW11459378 Whirlpool Refrigerator Handle
8W10830136 Whirlpool Refrigerator Handle
8AW10830130 Whirlpool Refrigerator Handle
9W11449276 Whirlpool Handle Support
10WP67003638 Whirlpool Closing Cam
10BWP12028505AP Whirlpool Closing Cam
10AWP67003639 Whirlpool Refrigerator Closer
1167001019 Whirlpool Door Shelf Trim
