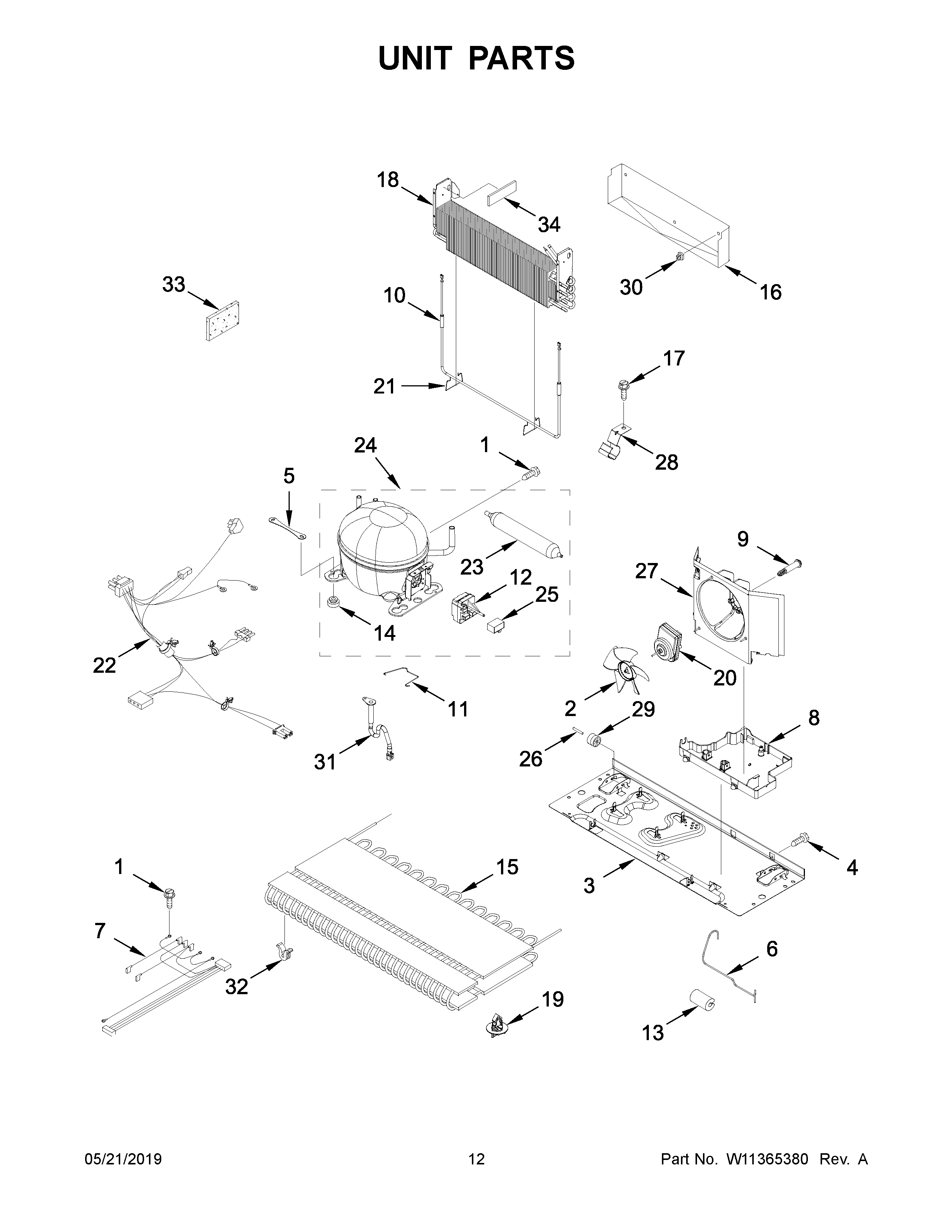

WRB322DMBM01 07 – UNIT PARTS

WRB322DMBM01 07 – UNIT PARTS

Written by

in

WRB322DMBM01 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480110 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10236396 Whirlpool Refrigerator Strap
6	WPW10233570 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	W11092534 Whirlpool Refrigerator Clip
12	W10873801 Whirlpool Start Device
13	W10852725 Whirlpool Refrigerator Grommet
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WPW10346420 Whirlpool Refrigerator Condenser
16	WPW10292802 Whirlpool Refrigerator Drip Tray
17	Screw
18	W11459354 Whirlpool Refrigerator Evaporator
19	W10815863 Whirlpool Clip
20	W11613295 Whirlpool Condenser Motor
21	W11673433 Whirlpool Clip
22	W11218258 Whirlpool Refrigerator Wire Harness
23	WPW10143759 Whirlpool Dryer Filter
24	W10233960 Whirlpool Refrigerator Compressor
25	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
26	67006434 Whirlpool Axle Pin
27	W11556315 Whirlpool Shroud
28	W10281329 Whirlpool Clamp
29	WP67005149 Whirlpool Roller
30	CLIP, EVAP (2)
31	W10619951 Whirlpool Drain Tube with Grommet
32	WPW10137529 Whirlpool Refrigerator Grommet
33	W11553819 Whirlpool Refrigerator Insulation
34	W11451451 Whirlpool Refrigerator Gasket
