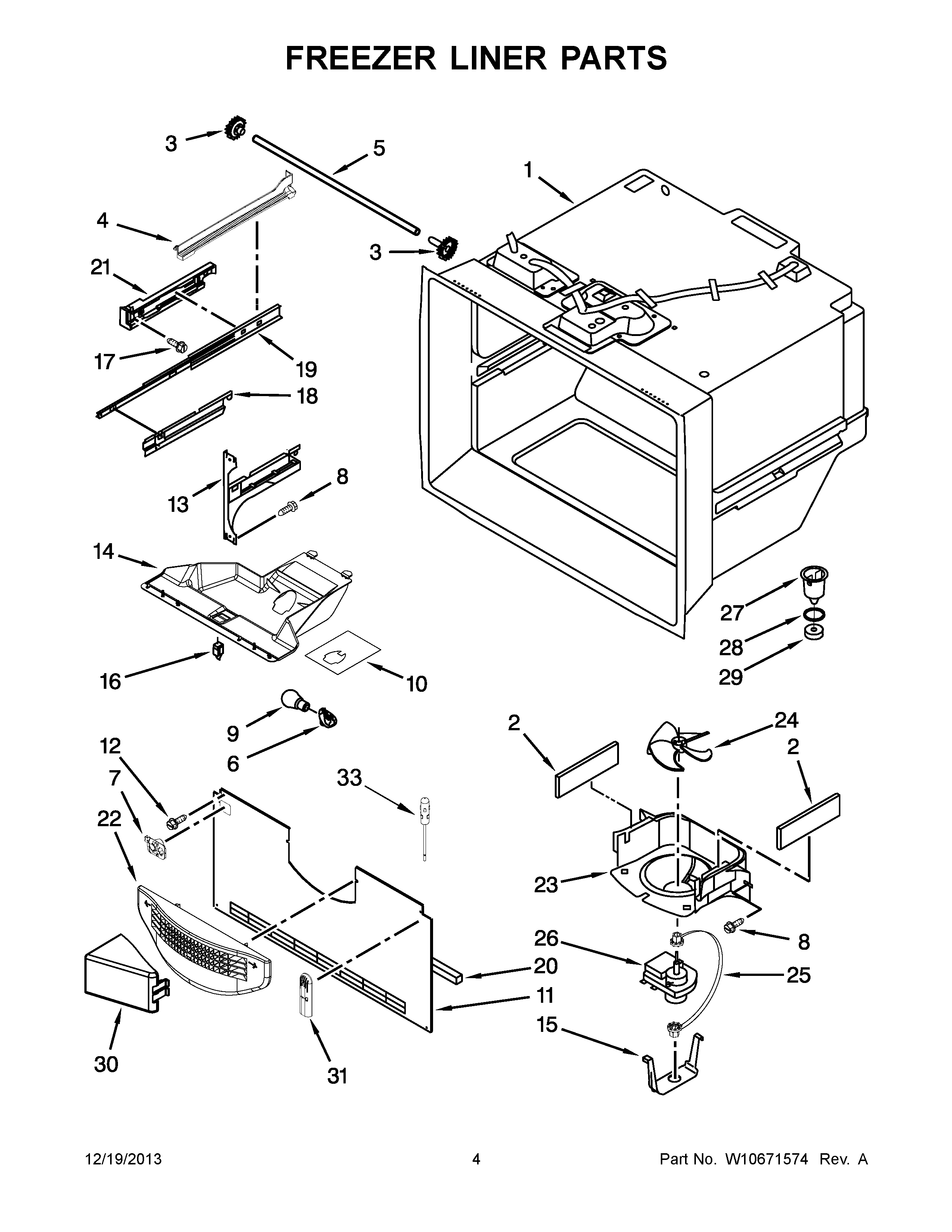

WRB322DMBW00 03 – FREEZER LINER PARTS

WRB322DMBW00 03 – FREEZER LINER PARTS

Written by

in

WRB322DMBW00 03 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4W11489993 Whirlpool Refrigerator Rail
4W11489994 Whirlpool Refrigerator Rail
5W11715937 Whirlpool Shaft
6W11447232 Whirlpool Refrigerator Socket
7W11448709 Whirlpool Refrigerator Bracket
8WP98165 Whirlpool Screw
9W11338583 Whirlpool Light Bulb
10W11469652 Whirlpool Refrigerator Shield
11W10308415 Whirlpool Refrigerator Evaporator Cover
12WP489349 Whirlpool Refrigerator Screw
13WPW10330993 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17WP489474 Whirlpool Refrigerator Screw
18WPW10280613 Whirlpool Refrigerator Bracket
18WPW10280608 Whirlpool Refrigerator Bracket
19W11658402 Whirlpool Drawer Slide Rail
20W11159742 Whirlpool Refrigerator Gasket
21WPW10284685 Whirlpool Refrigerator Bracket
21WPW10284684 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W11690160 Whirlpool Grommet
26MOTOR-EVAP
27W10585187 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30W10157765 Whirlpool Refrigerator Deflector
31WP67003924 Whirlpool Refrigerator Cover
3312002355 Whirlpool Refrigerator Thermistor Kit
