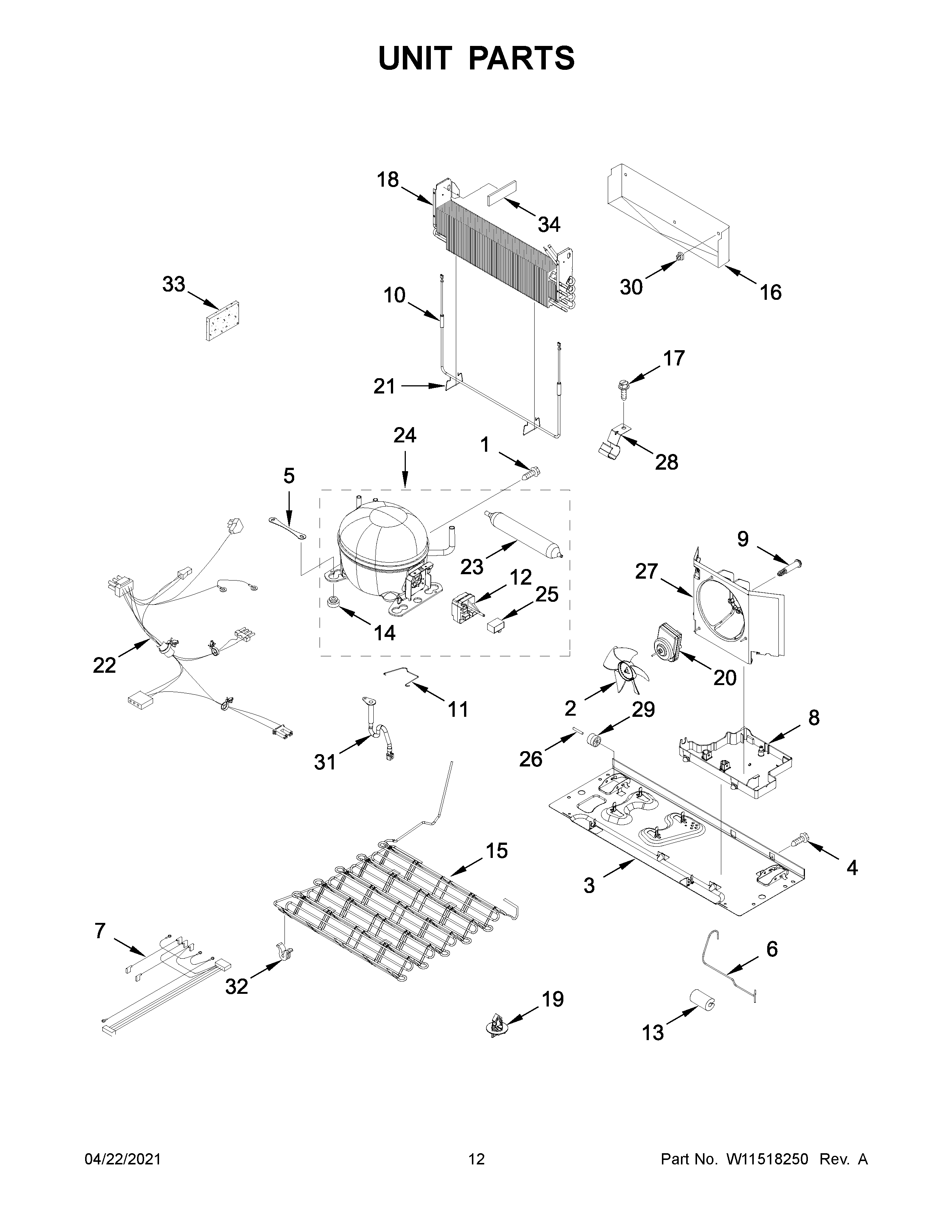

WRB322DMBW03 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480110 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10236396 Whirlpool Refrigerator Strap
6	W11566600 Whirlpool Tube
7	W11524653 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	W11524652 Whirlpool Refrigerator Heater
11	WPL W11379613
12	W11524472 Whirlpool Refrigerator Start Device
13	W10852725 Whirlpool Refrigerator Grommet
14	WPW10169124 Whirlpool Refrigerator Grommet
15A	W11506623 Whirlpool Refrigerator Coupler
15B	W11504432 Whirlpool Refrigerator Coupler
15	W11482308 Whirlpool Refrigerator Condenser
16	TRAY, DRIP
17	Screw
18A	W11504423 Whirlpool Refrigerator Coupler
18B	W11504415 Whirlpool Refrigerator Coupler
18	W11598432 Whirlpool Refrigerator Evaporator Repair
19	W10815863 Whirlpool Clip
20	W11613295 Whirlpool Condenser Motor
21	W11380964 Whirlpool Clip Assembly
22	W11741475 Whirlpool Wire Harness
23B	W11504447 Whirlpool Refrigerator Coupler
23A	W11504445 Whirlpool Refrigerator Coupler
23	W11109499 Whirlpool Refrigerator Tube
24D	W11506635 Whirlpool Refrigerator Valve Coupler
24B	W11504431 Whirlpool Microwave Coupler
24	W11547313 Whirlpool Refrigerator Compressor
24C	W11506621 Whirlpool Refrigerator Coupler
24A	W11504416 Whirlpool Refrigerator Coupler
25	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
26	67006434 Whirlpool Axle Pin
27	W11556315 Whirlpool Shroud
28	W10281329 Whirlpool Clamp
29	WP67005149 Whirlpool Roller
30	CLIP, EVAP (2)
31	W10619951 Whirlpool Drain Tube with Grommet
32	WPW10137529 Whirlpool Refrigerator Grommet
33	W11553819 Whirlpool Refrigerator Insulation
34	W11451451 Whirlpool Refrigerator Gasket
