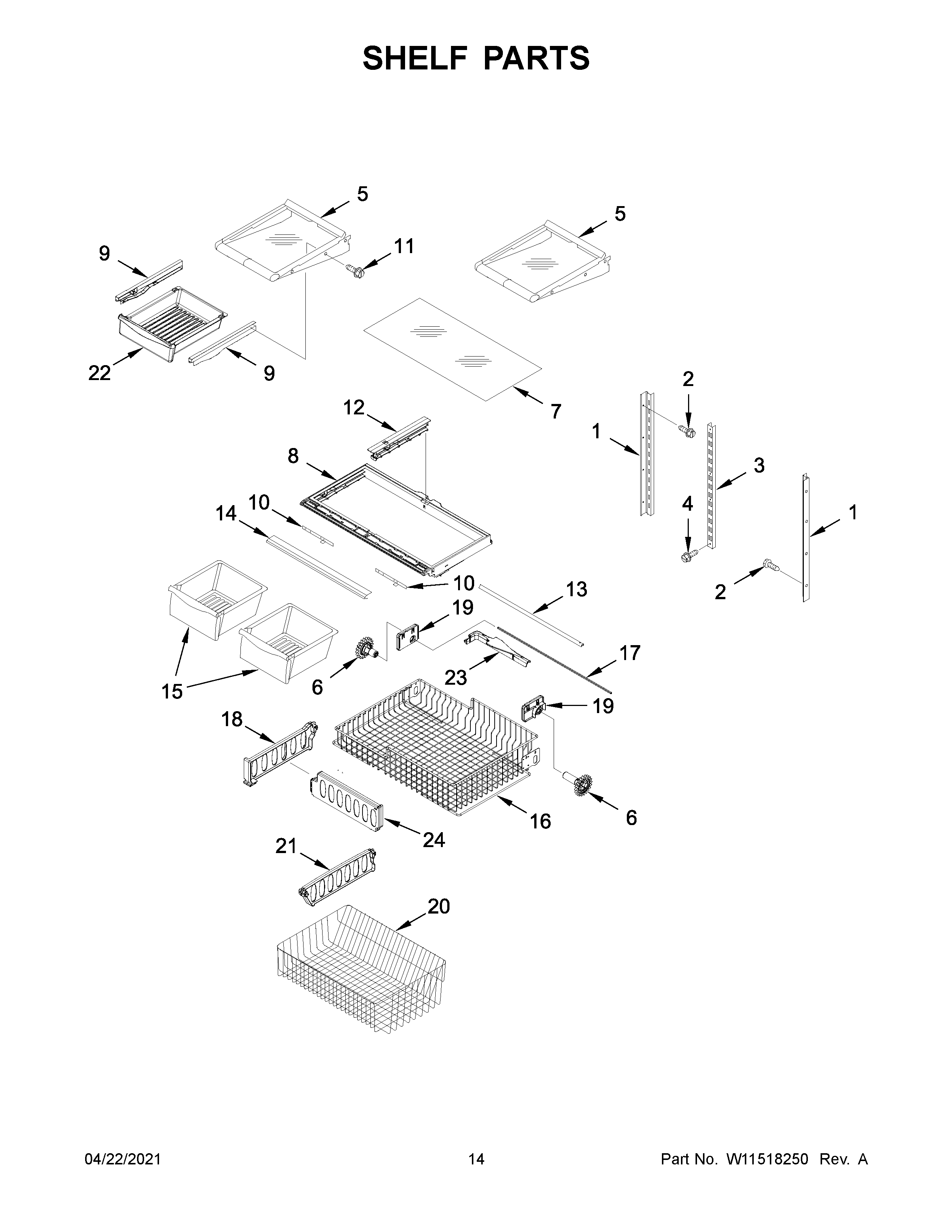

WRB322DMBW03 08 – SHELF PARTS

WRB322DMBW03 08 – SHELF PARTS

Written by

in

WRB322DMBW03 08 – SHELF PARTS

Products

PositionProduct
1W10251969 Whirlpool Refrigerator Ladder
267006425 Whirlpool Refrigerator Screw
3W10273463 Whirlpool Refrigerator Ladder
4W10215666 Whirlpool Refrigerator Screw
5W11402523 Whirlpool Refrigerator Glass Shelf
6WPW10474716 Whirlpool Refrigerator Gear
6AWPW10474715 Whirlpool Refrigerator Gear
7WP67006878 Whirlpool Refrigerator Crisper Glass
8W10858393 Whirlpool Shelf Frame
9WP67001054 Whirlpool Left Glide
9AWP67001053 Whirlpool Drawer Glide
10SLIDE
11SCREW
12RAIL-CENTR CRISPER
13WP12227303WD Whirlpool Refrigerator Crisper Brace
14WPW10231343 Whirlpool Shelf Trim
15WP67002633 Whirlpool Crisper Pan
16W11281084 Whirlpool Refrigerator Freezer Basket
17W10802339 Whirlpool Refrigerator Shaft
18W10241046 Whirlpool Refrigerator Divider
19AW10348260 Whirlpool Refrigerator Bracket
19W10348259 Whirlpool Refrigerator Bracket Assembly
20W11281087 Whirlpool Refrigerator Freezer Basket
21W10847995 Whirlpool Divider Assembly
22WP67001314 Whirlpool Snack Pan
23W10149389 Whirlpool Refrigerator Handle
24W10311695 Whirlpool Refrigerator Divider
