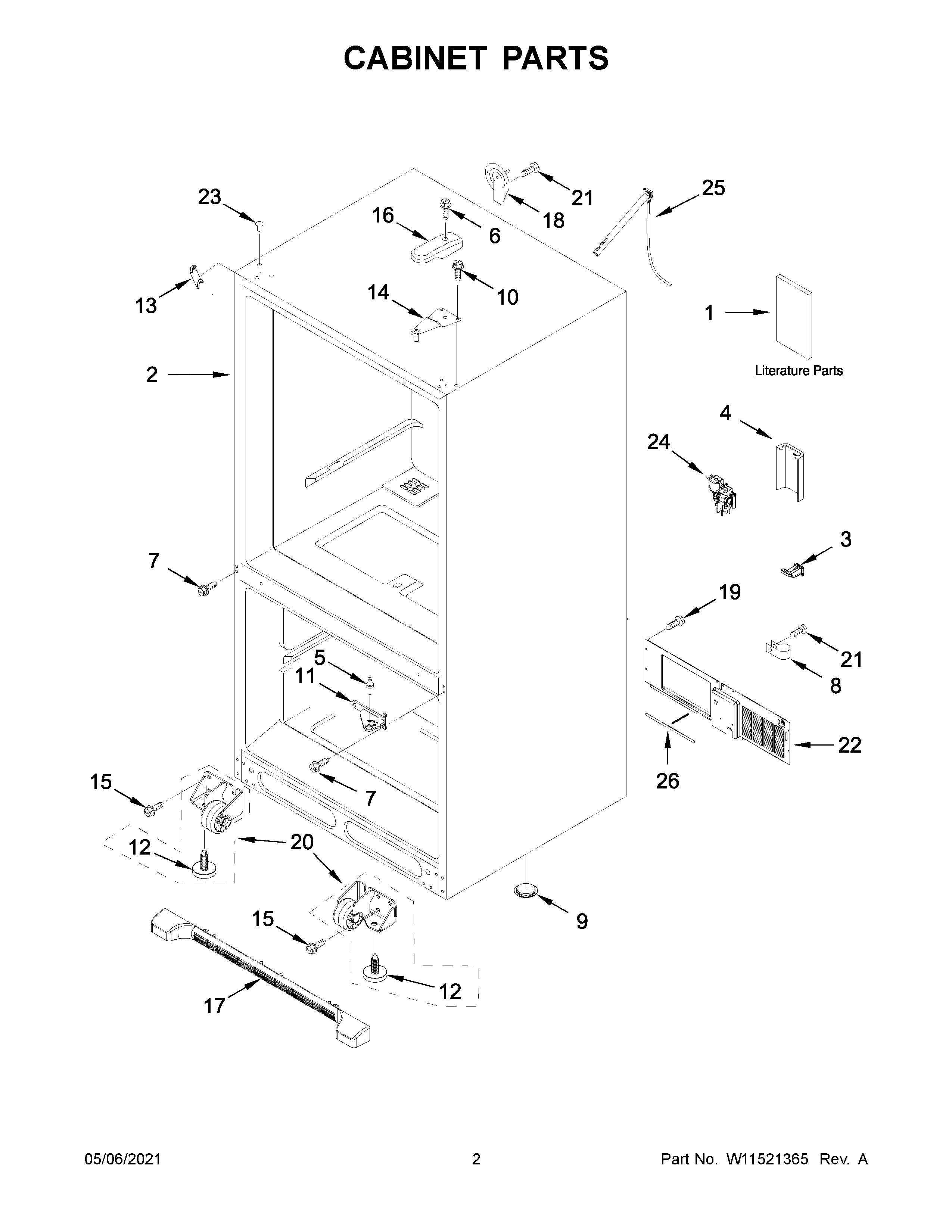

WRB322DMHV03 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNER'S MANUAL
1B	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	W10485986 Whirlpool Tube Clamp
4	W10208592 Whirlpool Refrigerator Valve Cover
5	WP67006642 Whirlpool Refrigerator Pin
6	WP8281196 Whirlpool Screw
7	W11573362 Whirlpool Screw Assembly
8	W11456069 Whirlpool Refrigerator Clamp
9	A3076901 Whirlpool Refrigerator Plug
10	WP489349 Whirlpool Refrigerator Screw
11	WP12607104ED Whirlpool Refrigerator Door Hinge
12	WPW10141622 Whirlpool Leveler
13	67003485 Whirlpool Refrigerator Corner Cover (Black)
14	WP12566606ED Whirlpool Refrigerator Door Hinge
15	67006564 Whirlpool Refrigerator Screw
16	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
17	WPW10534162 Whirlpool Refrigerator Front Grille
18	12726003 Whirlpool Refrigerator Water Cover
19	SCREW
20	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
21	WP98165 Whirlpool Screw
22	WPW10210979 Whirlpool Refrigerator Back Cover
23	WP12246608 Whirlpool Refrigerator Button
24	W11519244 Whirlpool Refrigerator Valve
25	W11181718 Whirlpool Refrigerator Water Tube
26	B5759655 Whirlpool Refrigerator Gasket
